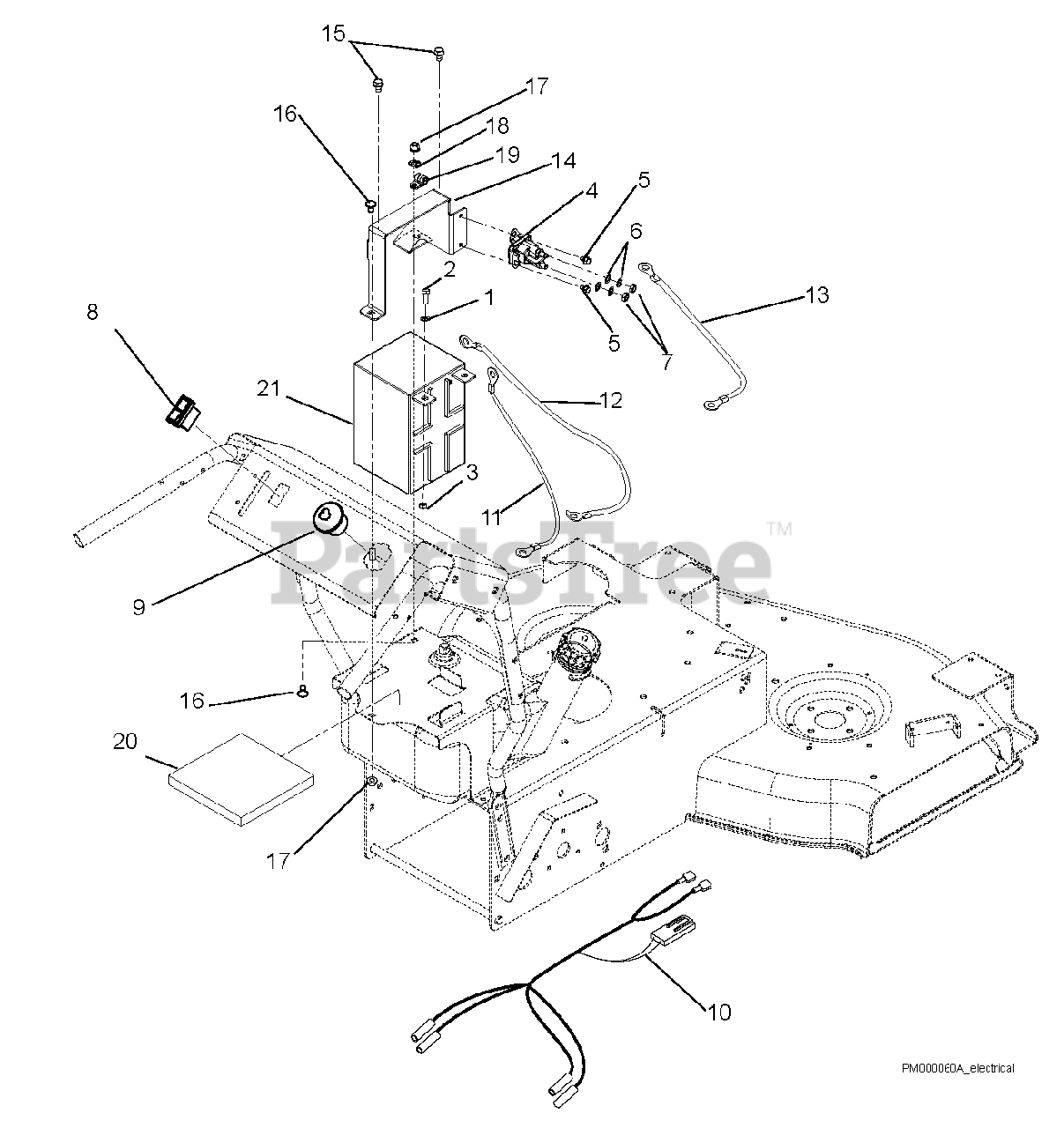

911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 013000 & Above) Electrical Parts Diagram

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

Electrical Parts Diagram

  • Title

1

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

2

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

3

Gravely 06509200

Nut, KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, Qty 5

0

4

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 12

0

5

Gravely 07411600

Screw, Tapping Hex Washer Head .250-20 x .37
(Superseded to 07400125)

$0.99

$

In Stock, Qty 6

0

6

Gravely 06310500

Washer, Internal Lock .31

$0.99

$

In Stock, only 3 left!

0

7

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 8

0

8

Gravely 03272600

Switch, Rocker
(Superseded to 03374200)

$19.99

$

Usually ships in 4-12 days

0

9

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

$17.99

$

In Stock, Qty 7

0

9

Gravely 04986400

Key, Ignition

Note: Not Shown

$7.99

$

In Stock, Qty 8

0

9

Gravely 03292700

Replacement Key

$

$

Not available

10

Gravely 03372600

Harness, Wiring

$

$

Not available

11

Gravely 04508200

Assembly, POS Battery 6.75"

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 04249900

Cable, Negative 26" 6 GA.

$34.99

$

In Stock, only 1 left!

0

13

Gravely 00187500

Cable, Positive Battery 18.50"

$9.99

$

Usually ships in 4-12 days

0

14

Gravely 03986051

Bracket, Battery Mount
(Superseded to 04270851)

$85.99

$

In Stock, only 1 left!

0

15

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06222000

Bolt, Round Head Square Neck .31-18 x .50 Grade 5
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

17

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 13

0

19

Gravely 06908200

Clamp, Cushioned Steel

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 04504000

Battery Mat

$

$

Not available

21

Gravely 04382200

Battery, 12V 190CCA (Can be replaced with U1. See Owners manual.)
(Superseded to 04738800)

Note: (Can be replaced with U1. See Owners manual.)

$116.99

$

In Stock, Qty 20+

0
