911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 013000 & Above) Frame And Front Caster Parts Diagram

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

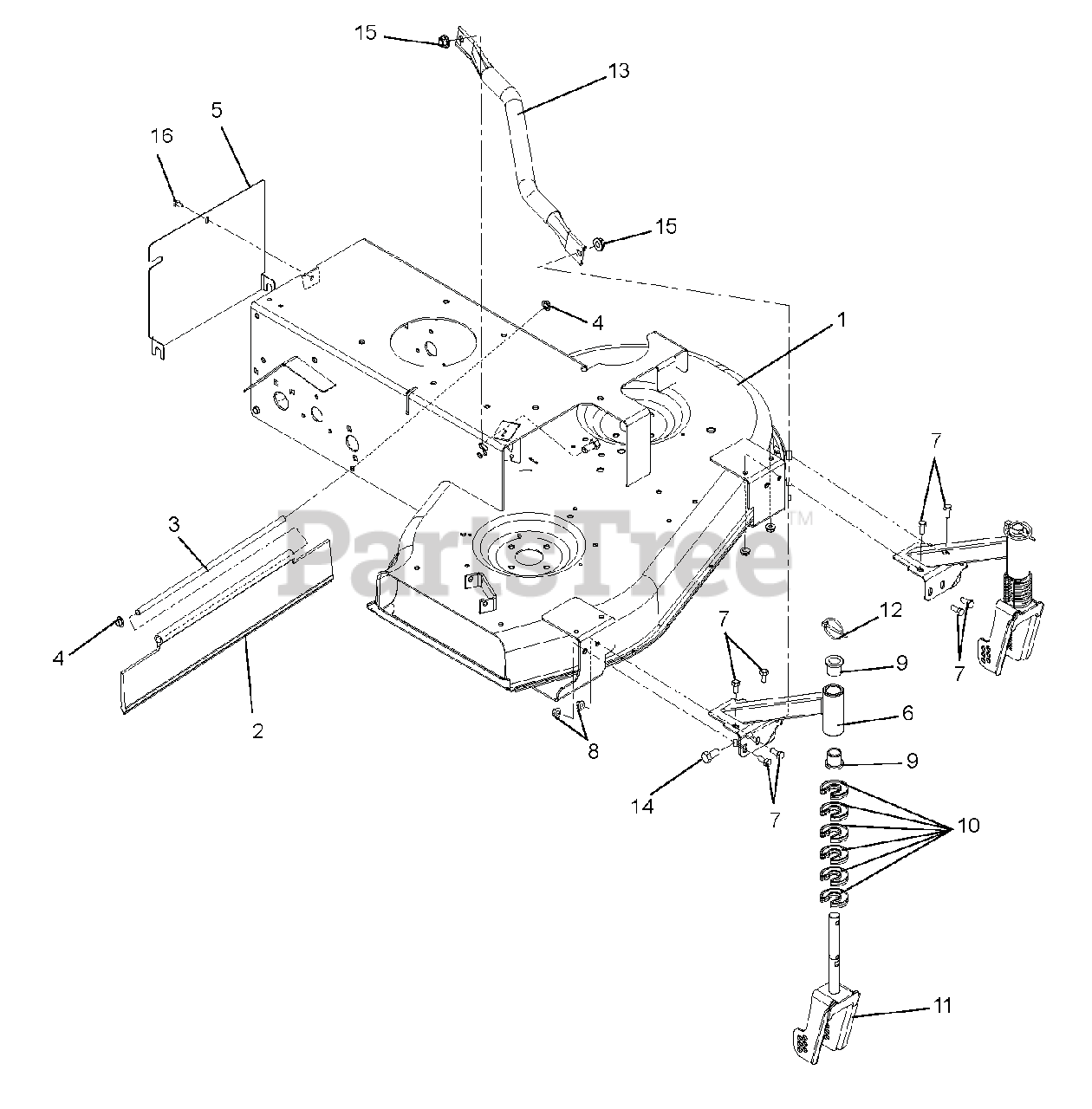

Frame And Front Caster Parts Diagram

  • Title

1

Gravely 01500053

CHASSIS, WAW 2010 (GRAVELY)

$

$

Not available

2

Gravely 07531500

GUARD - REAR - SWIVEL

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 03263700

ROD, TRAILING SHIELD

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 07008200

NUT-PUSH .312 DIA. PAL

$2.99

$

In Stock, Qty 15

0

5

Gravely 03985953

COVER, REAR CHASSIS

$47.99

$

Usually ships in 4-12 days

0

6

Gravely 03985453

ARM, CASTER (WLDMNT)

$224.99

$

Usually ships in 4-12 days

0

7

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03985500

BUSHING, FLANGE .75X.75X1.0

$6.99

$

In Stock, Qty 12

0

10

Gravely 03265100

CLIP-HOC FIXED

$3.99

$

In Stock, Qty 18

0

11

Gravely 04059653

FORK, WAW CASTER (HEIGHT ADJ)

$70.99

$

In Stock, only 3 left!

0

12

Gravely 06700204

PIN, LYNCH - .25 X 1.25
(Superseded to 06700226)

$3.99

$

In Stock, Qty 17

0

13

Gravely 01248551

TUBE-BRACE, DECK

$65.99

$

Usually ships in 4-12 days

0

14

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

15

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
