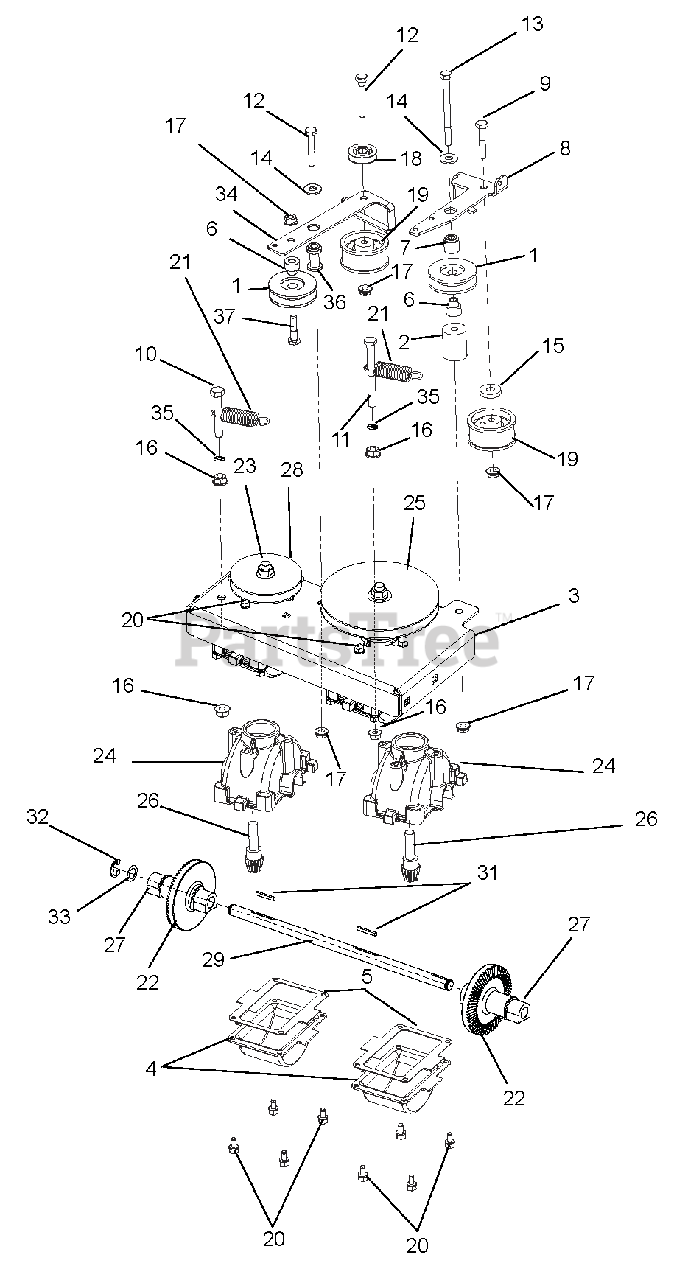

911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 013000 & Above) Transmission Parts Diagram

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

Transmission Parts Diagram

  • Title

1

Gravely 00444400

IDLER, 3L FRONT SIDE .38X1.875

$23.99

$

In Stock, only 4 left!

0

2

Gravely 01247300

SPACER, REVERSE IDLER

$16.99

$

Usually ships in 4-12 days

0

3

Gravely 04288700

PLATE, TRANSMISSION MOUNT

$

$

Not available

4

Gravely 01255251

SUMP, GEARBOX

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 01256400

GASKET, TRANSMISSION

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 01258900

SPACER, V-IDLER PULLEY

$3.99

$

In Stock, only 1 left!

0

7

Gravely 01259000

SPACER, IDLER ARM

$3.99

$

In Stock, only 2 left!

0

8

Gravely 03279300

BRKT-TRANS IDLER ARM

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

10

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05948000

BLT-HEX .31-18X3.50 GR5 YWZC

$2.99

$

In Stock, only 2 left!

0

12

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

13

Gravely 05965300

BLT-HEX .25-20X3.25 YWZC

$2.49

$

In Stock, Qty 12

0

14

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

18

Gravely 07300012

PULLEY, CABLE

$5.49

$

In Stock, Qty 20+

0

19

Gravely 07300435

PULLEY, ILDER .25X1.875X.97

$21.99

$

In Stock, only 1 left!

0

20

Gravely 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.99

$

In Stock, Qty 12

0

21

Gravely 08300435

SPRG, TENSION .063X.625X2.50

$9.99

$

Usually ships in 4-12 days

0

22

Gravely 01290400

GEAR, BEVEL (CU INFL, KEYWAY)

$56.99

$

Usually ships in 4-12 days

0

23

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 01255000

HOUSING, WBLM GEAR BOX

$68.99

$

Usually ships in 4-12 days

0

25

Gravely 01247500

PULLEY, WAW REVERSE INPUT

$70.99

$

Usually ships in 4-12 days

0

26

Gravely 01255500

PINION, GEARBOX INPUT

$65.99

$

Usually ships in 4-12 days

0

27

Gravely 01255300

BUSHING, TRANS OUTPUT SHAFT

$6.49

$

Usually ships in 4-12 days

0

28

Gravely 01326500

PULLEY, WAW INPUT

$239.99

$

Usually ships in 4-12 days

0

29

Gravely 03294200

SHAFT-TRANS OUTPUT

$

$

Not available

30

Gravely 51113600

KIT, WAW TRANSMISSION SHAFT

Note: (includes 30, 32, 33 and 34)

$180.99

$

Usually ships in 4-12 days

0

31

Gravely 06600211

KEY, 1/8 X 1/8 X 1.0

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

34

Gravely 04273600

ARM, DOUBLE ACTING IDLER

$40.99

$

Usually ships in 4-12 days

0

35

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 9

0

36

Gravely 04288800

PIVOT, IDLER

$15.99

$

Usually ships in 4-12 days

0

37

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0
