911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 013000 & Above) Transmission And Drive Parts Diagram

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

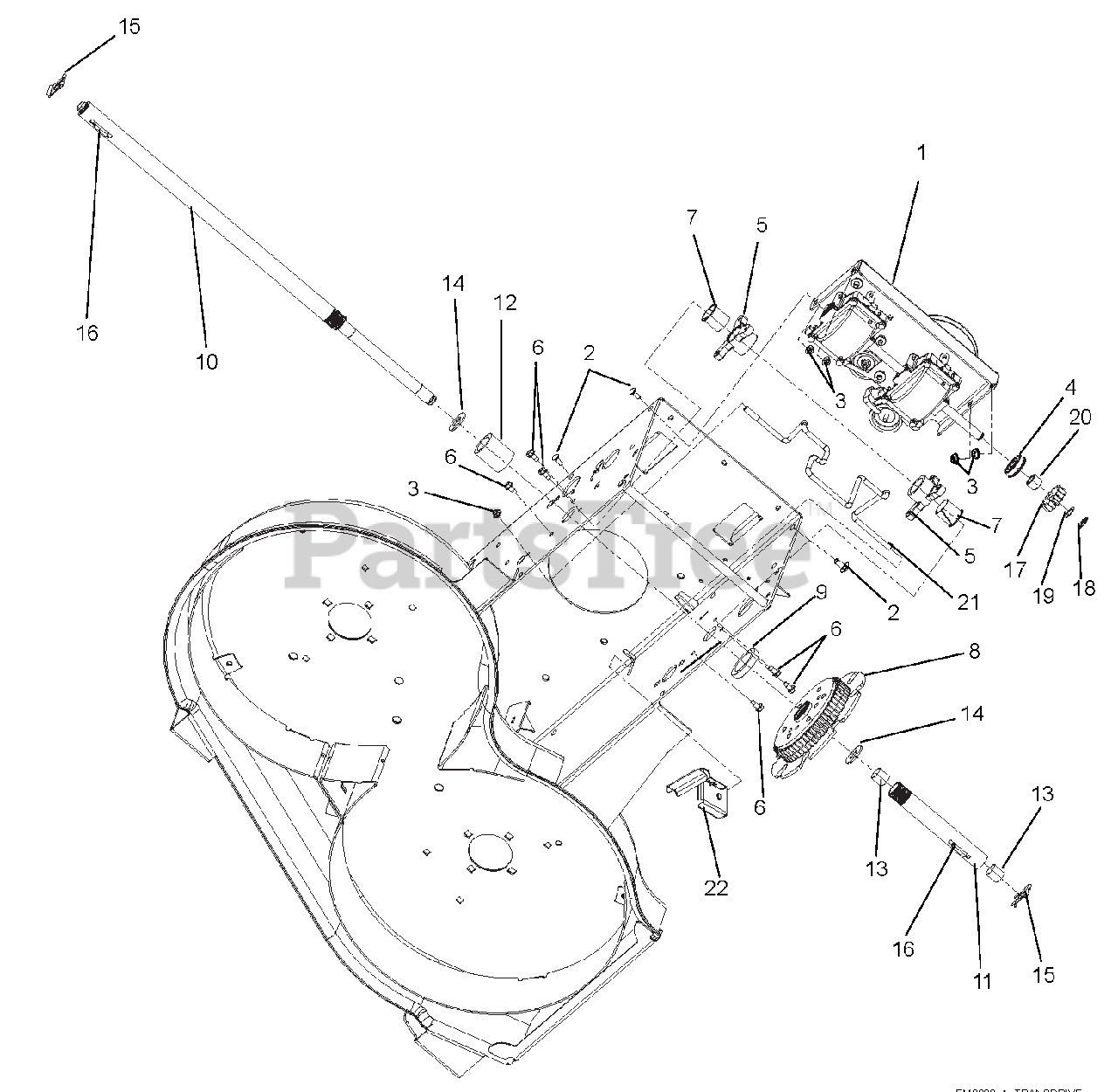

Transmission And Drive Parts Diagram

  • Title

1

Gravely 51115300

KIT, WAW TRANSMISSION

$609.99

$

Usually ships in 4-12 days

0

2

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

$15.99

$

In Stock, Qty 20+

0

5

Gravely 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, only 4 left!

0

6

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$7.49

$

In Stock, Qty 9

0

8

Gravely 51113100

KIT, WAW DIFFERENTIAL

$277.99

$

Usually ships in 4-12 days

0

9

Gravely 06400827

WSHR-FL-NY 1.42X2.03X.35

$5.99

$

In Stock, only 1 left!

0

10

Gravely 03264700

SHAFT-AXLE LONG

$171.99

$

In Stock, only 2 left!

0

11

Gravely 03264800

SHAFT-AXLE, SHORT

$51.99

$

In Stock, only 1 left!

0

12

Gravely 05500827

SPACER, 1.0X1.5X1.57

$16.99

$

Usually ships in 4-12 days

0

13

Gravely 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 20+

0

17

Gravely 01247400

PINION, TRANSMISSION DRIVE

$40.99

$

In Stock, only 2 left!

0

18

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

20

Gravely 01254800

RETAINER, BEARING

$10.99

$

In Stock, only 1 left!

0

21

Gravely 01288000

BELT FINGER, WIREFORM

$37.99

$

Usually ships in 4-12 days

0

22

Gravely 04273551

GUIDE, VERTICAL BELT

$43.99

$

Usually ships in 4-12 days

0
