911502 (LM 18) - Ariens 18" Self-Propelled Walk-Behind Mower, 4hp Briggs & Stratton (SN: 000101 & Above) Axles, Wheels And Height Adjustment Parts Diagram

18" Self-Propelled Walk-Behind Mower, 4hp Briggs & Stratton

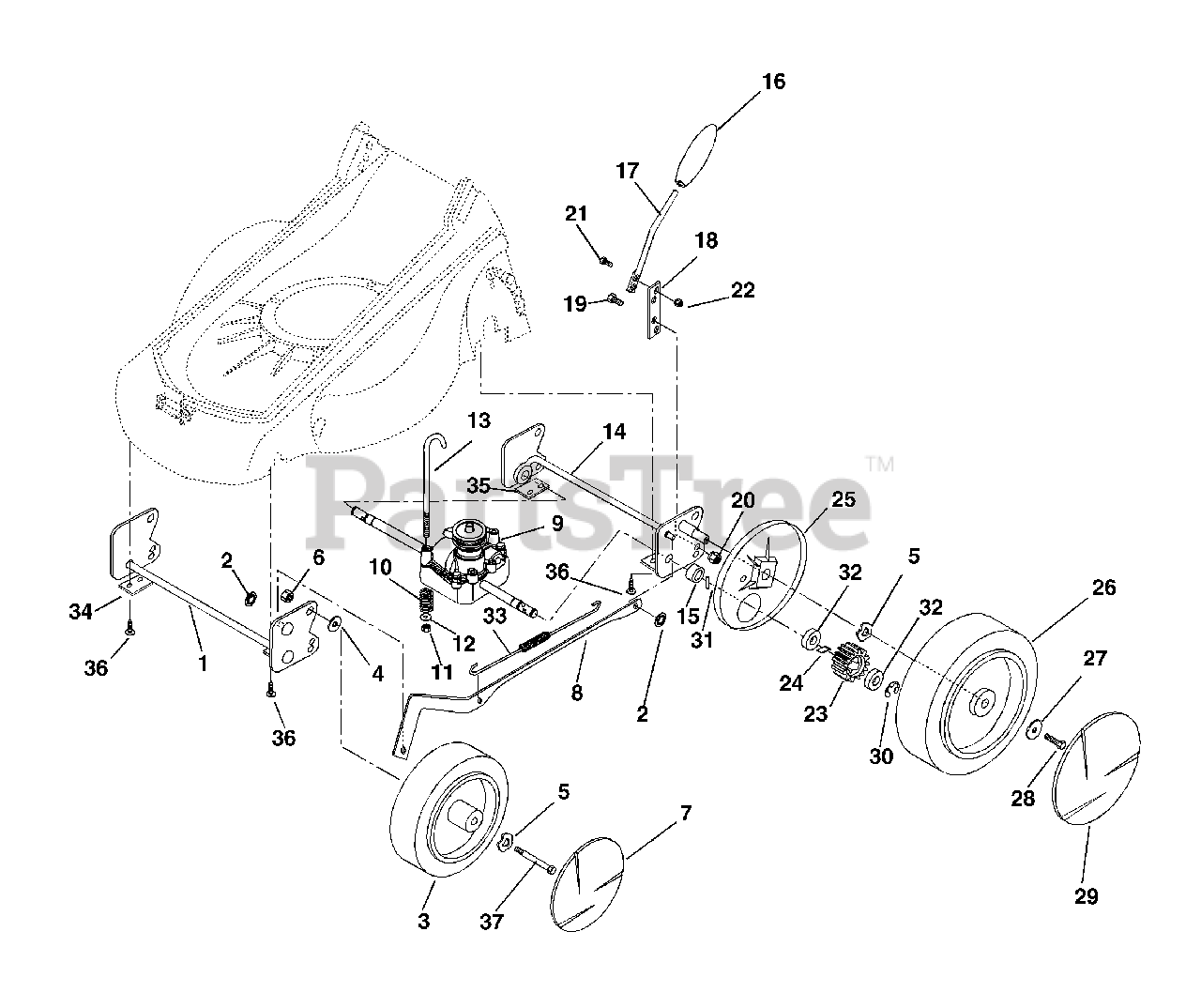

Axles, Wheels And Height Adjustment Parts Diagram

  • Title

1

Ariens 01434300

AXLE, FRONT ASSEMBLY

$

$

Not available

2

Ariens 01430400

CLIP, STAR LOCK TRAILING SHLD

$

$

Not available

3

Ariens 01435500

WHEEL, FRONT W/BEARINGS

$

$

Not available

4

Ariens 01439500

WSHR, 8.3X22X2

$

$

Not available

5

Ariens 01431000

WSHR, WEAVY 13X24X0.6

$

$

Not available

6

Ariens 01434000

NUT, LK M8

$

$

Not available

7

Ariens 01435759

COVER, FRONT WHEEL

$

$

Not available

8

Ariens 01435200

ROD, CONNECTING

$

$

Not available

9

Ariens 01436200

TRANSMISSION

$

$

Not available

10

Ariens 01436700

SPRING, TRANSMISSION RETURN

$

$

Not available

11

Ariens 01441300

NUT, LK M5

$

$

Not available

12

Ariens 01438000

WSHR, 5.3X10X1

$

$

Not available

13

Ariens 01438100

ROD, V BELT TENSIONER

$

$

Not available

14

Ariens 01434400

AXLE, REAR ASSEMBLY WELDMENT

$

$

Not available

15

Ariens 01438200

BEARING, BALL 27M-12.15

$

$

Not available

16

Ariens 01435151

KNOB, HEIGHT ADJUSTMENT LEVER

$

$

Not available

17

Ariens 01434800

ROD, HEIGHT ADJUSTMENT LEVER

$

$

Not available

18

Ariens 01437200

PLATE, HEIGHT ADJMT SPRG STL

$

$

Not available

19

Ariens 01434900

BOLT, M6-12

$

$

Not available

20

Ariens 01435000

NUT, LK M6

$

$

Not available

21

Ariens 01437600

BOLT, M4X12

$

$

Not available

22

Ariens 01438400

NUT, M4

$

$

Not available

23

Ariens 01442700

PINION, WHEEL DRIVE

$

$

Not available

24

Ariens 01442800

KEY, DRIVE RATCHET

$5.99

$

Usually ships in 4-12 days

0

25

Ariens 01435951

COVER, WHEEL DRIVE

$

$

Not available

26

Ariens 01435600

WHEEL, REAR W/BEARINGS

Note: Including Bearing

$

$

Not available

27

Ariens 01441600

WSHR, 6.5X27X1.5

$

$

Not available

28

Ariens 01441500

BOLT, M6X16 SELF TAPPING

$

$

Not available

29

Ariens 01435859

COVER, REAR WHEEL

$

$

Not available

30

Ariens 01438600

RING, SNAP TRANSMISSION SHAFT

$

$

Not available

31

Ariens 01438700

PIN, ROLL REAR AXLE LOCK

$

$

Not available

32

Ariens 01440100

BUSHING, PINION

$

$

Not available

33

Ariens 01435400

SPRING, HEIGHT ADJUSTMENT

$

$

Not available

34

Ariens 01434600

PLATE, FRONT AXLE MOUNTING

$

$

Not available

35

Ariens 01434700

PLATE, REAR AXLE MOUNTING

$

$

Not available

36

Ariens 01431900

SCREW, KA 40X16

$

$

Not available

37

Ariens 01442100

BOLT, SHOULDER FRT WHL AXLE

$

$

Not available
