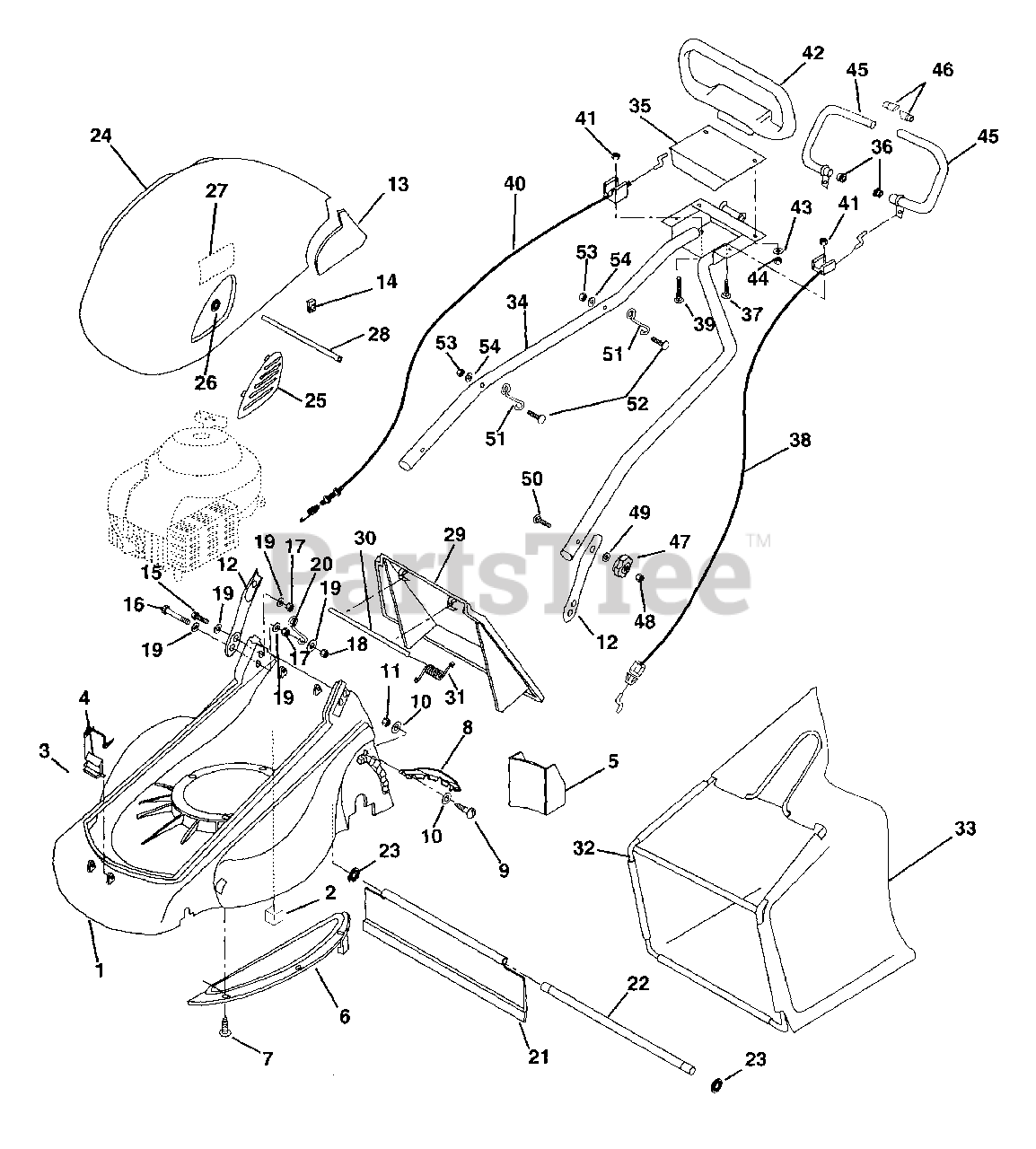

911502 (LM 18) - Ariens 18" Self-Propelled Walk-Behind Mower, 4hp Briggs & Stratton (SN: 000101 & Above) Main Frame And Handlebars Parts Diagram

18" Self-Propelled Walk-Behind Mower, 4hp Briggs & Stratton

Main Frame And Handlebars Parts Diagram

  • Title

1

Ariens 01431244

DECK, MOWER 18"

$

$

Not available

2

Ariens 01439844

SPACER, REAR AXLE GRAY

$

$

Not available

3

Ariens 01432344

LATCH, COVER

$

$

Not available

4

Ariens 01432400

SPRING, LATCH RETURN

$

$

Not available

5

Ariens 01437751

PLUG, MULCHING

$

$

Not available

6

Ariens 01431800

COVER, HEIGHT ADJMT ROD/SPRING

$

$

Not available

7

Ariens 01438300

SCREW, KA 50X16

$

$

Not available

8

Ariens 01441900

PLATE, REINFORCING HEIGHT ADJT

$

$

Not available

9

Ariens 01442000

SCREW, M6X16

$

$

Not available

10

Ariens 01441100

WSHR, 6.4X12.5X1.6

$

$

Not available

11

Ariens 01435000

NUT, LK M6

$

$

Not available

12

Ariens 01432559

SUPPORT, HANDLEBAR ORANGE

$

$

Not available

13

Ariens 01431651

COVER, HANDLEBAR SUPPORT RIGHT

$

$

Not available

Ariens 01431751

COVER, HANDLEBAR SUPPORT LEFT

$

$

Not available

14

Ariens 01439300

CLIP, HANDLEBAR SUPPORT COVER

$

$

Not available

15

Ariens 01432700

BOLT, M8X20

$

$

Not available

16

Ariens 01431100

BOLT, M8X30

$

$

Not available

17

Ariens 01441400

NUT, M8

$

$

Not available

18

Ariens 01434000

NUT, LK M8

$

$

Not available

19

Ariens 01433700

WSHR, 8.4X17X1.6

$

$

Not available

20

Ariens 01432600

GUIDE, ROPE

$

$

Not available

21

Ariens 01430751

SHIELD, ECOBUG TRAILING BLK

$

$

Not available

22

Ariens 01438900

ROD, TRAILING SHIELD

$

$

Not available

23

Ariens 01430400

CLIP, STAR LOCK TRAILING SHLD

$

$

Not available

24

Ariens 01432059

COVER, ENGINE

$

$

Not available

25

Ariens 01432151

GRILL, EXHAUST

$

$

Not available

26

Ariens 01440000

CLIP, EXHAUST GRILL

$

$

Not available

27

Ariens 03805200

SHEET-HEAT REFLECTIVE 3X5

$9.49

$

Usually ships in 4-12 days

0

28

Ariens 01432200

ROD, ENGINE COVER

$

$

Not available

29

Ariens 01437359

DOOR, REAR

$

$

Not available

30

Ariens 01437400

ROD, REAR DOOR HINGE

$

$

Not available

31

Ariens 01437500

SPRING, REAR DOOR

$

$

Not available

32

Ariens 01437851

FRAME, BAG

$

$

Not available

33

Ariens 01437900

BAG

$

$

Not available

34

Ariens 01433159

HANDLEBAR, ASSEMBLY WELDMENT

$

$

Not available

35

Ariens 01439151

PLATE, COVER

$

$

Not available

36

Ariens 01431451

BUSHING, TUBE PIVOT

$

$

Not available

37

Ariens 01433200

BOLT, M6X16 CARRIAGE

$

$

Not available

38

Ariens 01430600

CABLE, ENGINE BREAK

$

$

Not available

39

Ariens 01433400

BOLT, M6X30 CARRIAGE

$

$

Not available

40

Ariens 01437100

CABLE, TRANSMISSION CONTROL

$

$

Not available

41

Ariens 01433000

NUT, M6

$

$

Not available

42

Ariens 01433351

ARM, CONTROL

$

$

Not available

43

Ariens 01433500

WSHR, 6.4X12.5X1.6
(Superseded to 01441100)

$

$

Not available

44

Ariens 01430800

NUT, LK M8
(Superseded to 01434000)

$

$

Not available

45

Ariens 01430551

LEVER, CONTROL WELDMENT

$

$

Not available

46

Ariens 01439051

STOP, CONTROL LEVER

$

$

Not available

47

Ariens 01432951

KNOB, HANDLEBAR FOLDING

$

$

Not available

48

Ariens 01441200

NUT, M8 KNOB INSERT

$

$

Not available

49

Ariens 01433700

WSHR, 8.4X17X1.6

$

$

Not available

50

Ariens 01434500

BOLT, M8X55 CARRIAGE

$

$

Not available

51

Ariens 01432851

GUIDE, ROPE

$

$

Not available

52

Ariens 01436600

PINION/RATCHET-RH 15T

$

$

Not available

53

Ariens 01436100

NUT, M6

$

$

Not available

54

Ariens 01441100

WSHR, 6.4X12.5X1.6

$

$

Not available
