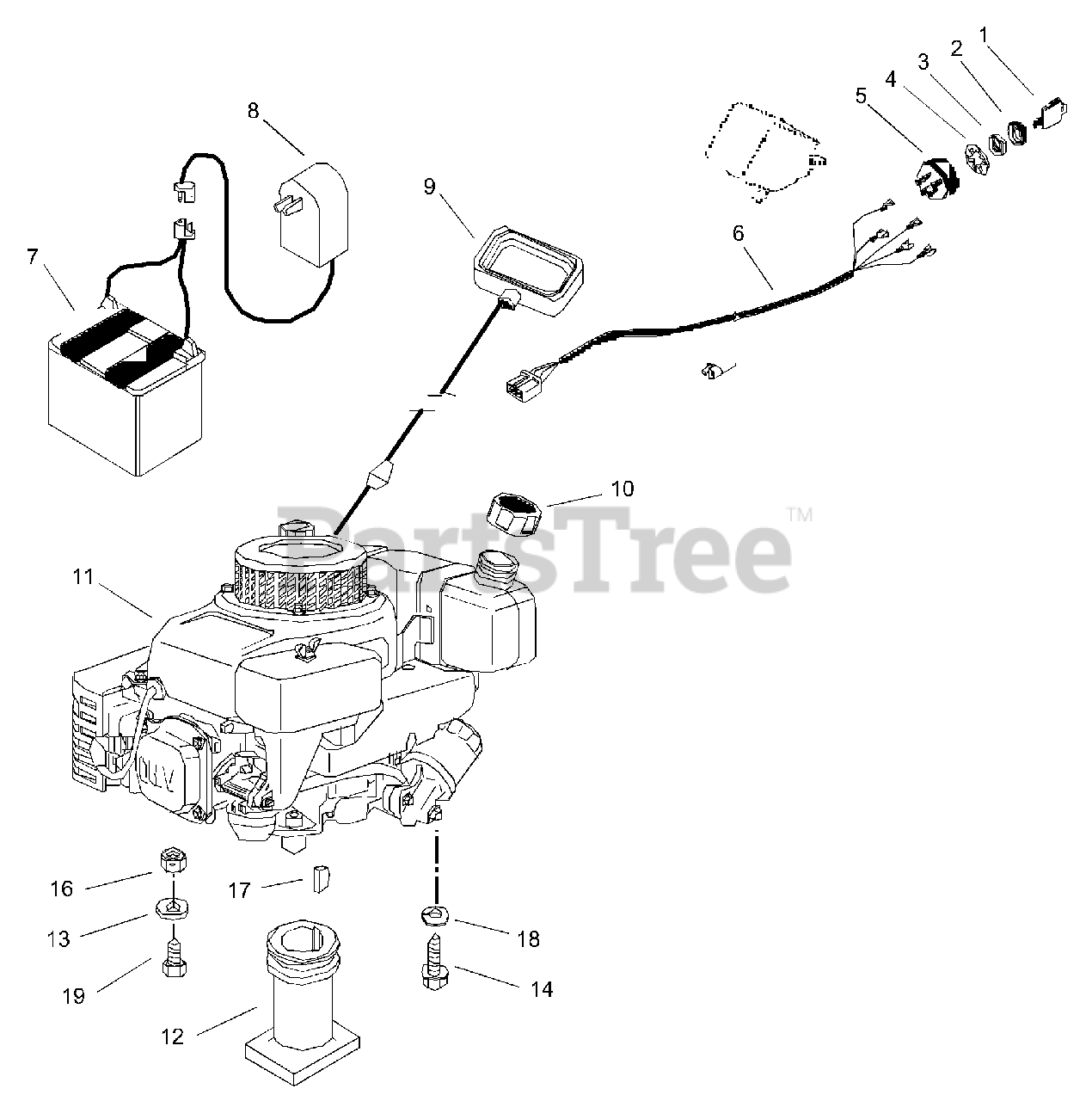

911506 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, 6.5hp Tecumseh (SN: 000101 & Above) Engine And Electrical Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6.5hp Tecumseh

Engine And Electrical Parts Diagram

  • Title

1

Ariens 02460700

KEY -W/CAP

Note: (Model 507)

$10.99

$

In Stock, Qty 20+

0

2

Ariens 07517700

CAP - IGNITION SWITCH

Note: (Model 507)

$3.99

$

In Stock, Qty 19

0

3

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: (Model 507)

$9.49

$

Usually ships in 4-12 days

0

4

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

Note: (Model 507)

$4.99

$

Usually ships in 4-12 days

0

5

Ariens 01155800

KEY SWITCH

Note: (Model 507)

$

$

Not available

6

Ariens 01179200

WIRE HARNESS

Note: (Model 507)

$

$

Not available

7

Ariens 01178400

BATTERY,
(Superseded to 51106400)

Note: (Model 507)

$151.99

$

Usually ships in 4-12 days

0

8

Ariens 01126000

BATTERY CHARGER

Note: (Model 507)

$

$

Not available

9

Ariens 01157100

HANDLE, RECOIL START

$8.49

$

In Stock, only 2 left!

0

10

Ariens 07517600

FUEL CAP

$

$

Not available

11

Ariens 08256400

ENGINE, BRIGG 6.0HP AERO

Note: (Models 503, 504)

$

$

Not available

11

Ariens 08256200

ENGINE, TEC 6.5HP RECOIL MILL

Note: (Models 505, 506)

$

$

Not available

11

Ariens 08256100

ENGINE, TEC 6.5HP EL MILLENNIA

Note: (Model 507)

$

$

Not available

11

Ariens 08256500

ENGINE, BRIGGS 6.5HP INTEK PRO

Note: (Model 508)

$

$

Not available

11

Ariens 08247700

ENGINE ROBIN 6HP. PR LUBE.

Note: (Model 511)

$

$

Not available

12

Ariens 01178100

PLZ READ SERVICE LETTER #L-429

Note: (Models 503-507)

$

$

Not available

12

Ariens 01121700

BLADE ADAPTER

Note: (Models 508, 511)

$92.99

$

Usually ships in 4-12 days

0

13

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

Note: (Model 511)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (Models 503-508)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (Models 504-508, 511)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Models 504-508, 511)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 11

0

18

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (Model 511)

$0.99

$

In Stock, only 3 left!

0

19

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

Note: (Model 511)

$2.99

$

In Stock, Qty 6

0
