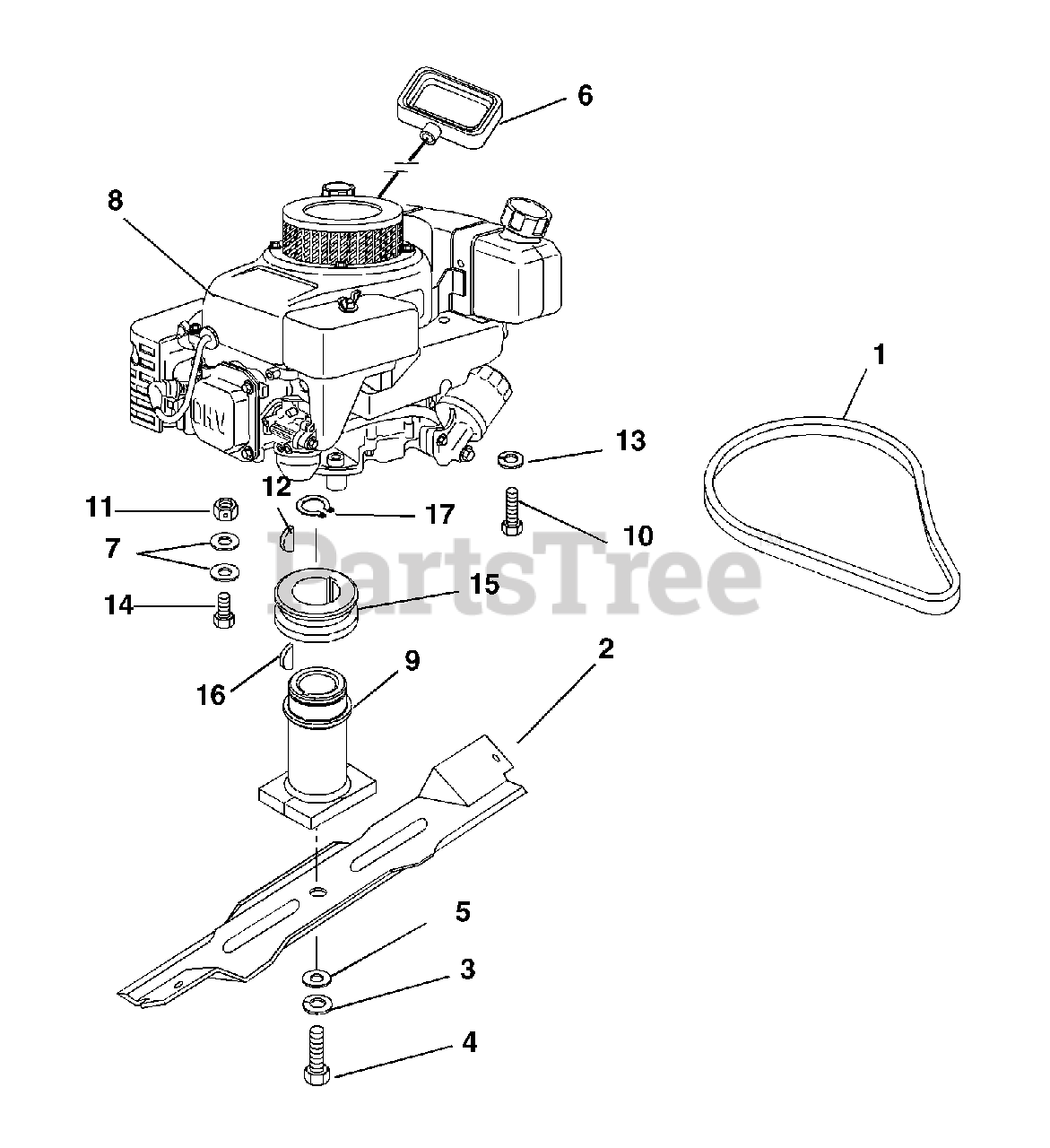

911509 (LM 21 SC) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Honda (SN: 001014 & Above) Engine, Blade And Belt Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Honda

Engine, Blade And Belt Parts Diagram

  • Title

1

Ariens 07237600

V-BELT, 3L-RAW EDGE

$26.99

$

Usually ships in 4-12 days

0

2

Ariens 01182400

BLADE, 21" MOWER TUNGSTEN
(Superseded to 01137000)

$23.99

$

In Stock, Qty 17

0

3

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

4

Ariens 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, Qty 8

0

5

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 3 left!

0

6

Ariens 01157100

HANDLE, RECOIL START

$7.99

$

In Stock, only 2 left!

0

7

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

8

Ariens 08247700

ENGINE ROBIN 6HP. PR LUBE.

$

$

Not available

9

Ariens 01185300

ADAPTER-BLADE,COM

$

$

Not available

10

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

11

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

Note: (Adapter to Crankshaft)

$2.49

$

In Stock, only 2 left!

0

13

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

14

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 07326200

SHEAVE-2.94X1.378

$

$

Not available

16

Ariens 06609200

KEY-WDRF .13X.38 HRD

Note: (Adapter to Pulley)

$2.99

$

Usually ships in 4-12 days

0

17

Ariens 05705600

RG-RTNG-EXT 1.375X.050

$

$

Not available
