911509 (LM 21 SC) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Honda (SN: 001014 & Above) Handlebar And Controls Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Honda

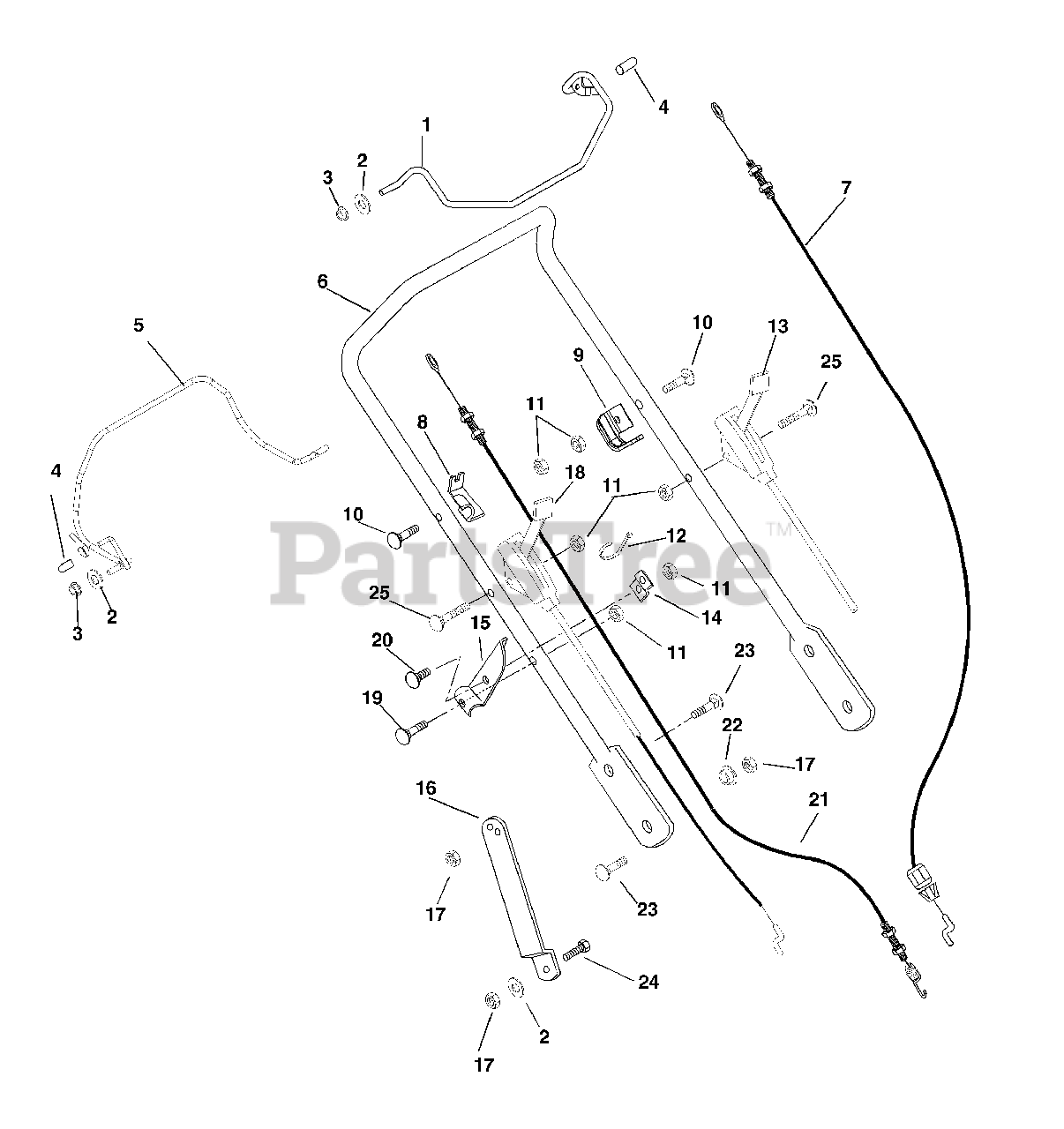

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01177251

ENGINE BAIL

$

$

Not available

2

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

4

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 12

0

5

Ariens 01188051

BAIL-TRACTION 3 SPD

$

$

Not available

6

Ariens 01184851

HANDLEBAR
(Superseded to 01245351)

$

$

Not available

7

Ariens 06937900

ENGINE CABLE

$45.99

$

Usually ships in 4-12 days

0

8

Ariens 01137551

CABLE ANCHOR, RH

$

$

Not available

9

Ariens 01155751

CABLE ANCHOR-LH
(Superseded to 01245651)

$12.99

$

In Stock, only 1 left!

0

10

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

13

Ariens 06940100

THROTTLE CABLE

$

$

Not available

14

Ariens 01141851

BRACE, SPEED CONTROL

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 01137451

BRACKET, SPEED CONTROL
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

16

Ariens 01158651

BRACKET, HANDLEBAR

$20.99

$

Usually ships in 4-12 days

0

17

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06944300

CABLE-GEAR SHIFT

$

$

Not available

19

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 12

0

20

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

21

Ariens 06944400

CABLE-TRACTION (SPECIAL)

$

$

Not available

22

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

23

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

25

Ariens 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0
