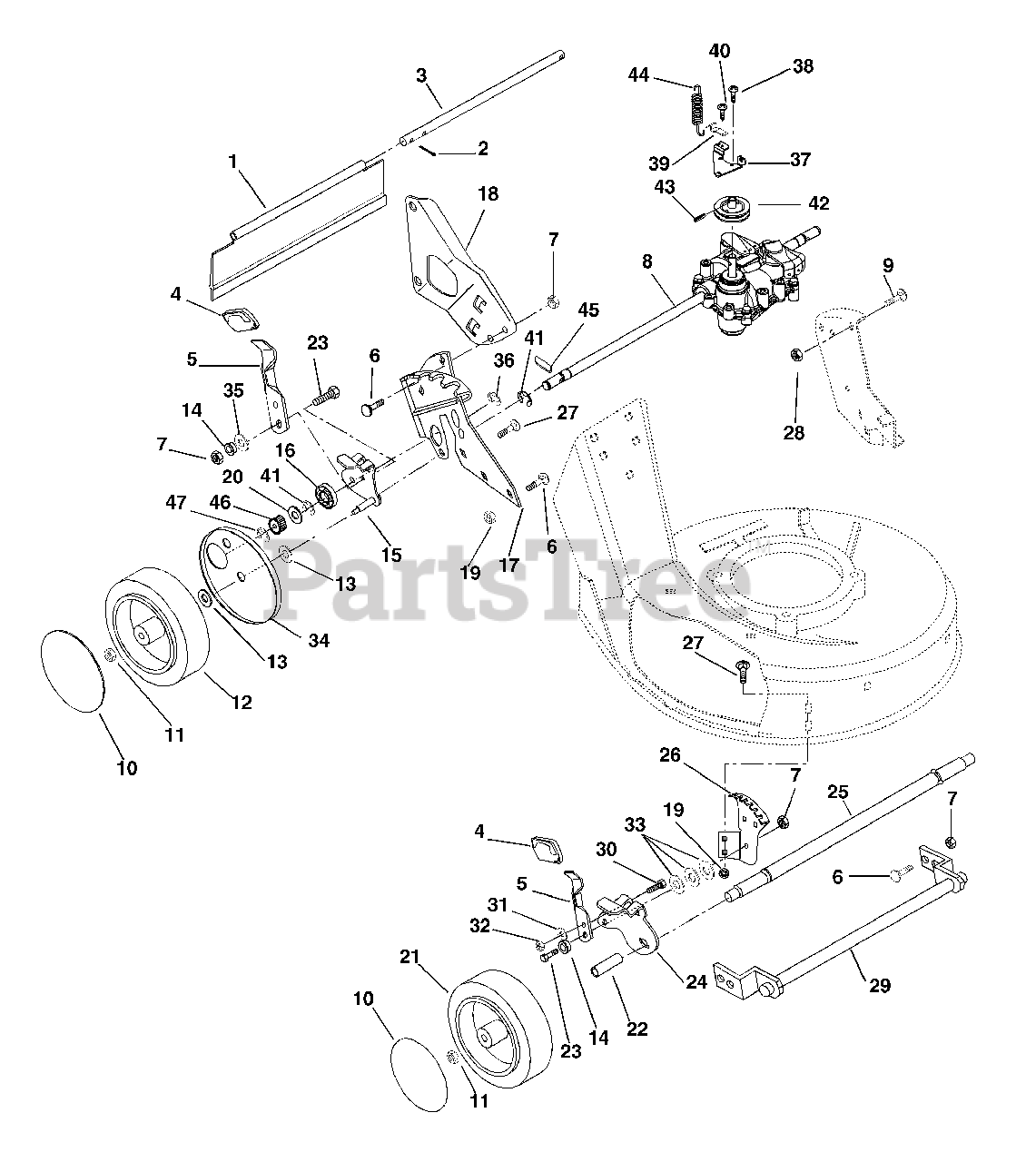

911509 (LM 21 SC) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Honda (SN: 001014 & Above) Wheels And Adjusters Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Honda

Wheels And Adjusters Parts Diagram

  • Title

1

Ariens 07531300

GUARD-REAR PROTECTIVE

$

$

Not available

2

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 01184900

ROD

$5.99

$

Usually ships in 4-12 days

0

4

Ariens 07513600

KNOB

$7.99

$

In Stock, only 2 left!

0

5

Ariens 01130600

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$25.99

$

In Stock, only 1 left!

0

6

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 01182200

TRANSMISSION-TUFF TORQ TL3C

$

$

Not available

9

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

10

Ariens 01182700

COVER-WHEEL

$

$

Not available

11

Ariens 06541800

NUT-JAM-LK-NYL .438-14 YWZC

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 01182500

WHEEL-REAR W/GEAR TEETH

$17.99

$

Usually ships in 4-12 days

0

13

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 13

0

14

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$3.99

$

In Stock, Qty 11

0

15

Ariens 01184400

ADJUSTER-HEIGTH WELD ASSY,RH

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 01184500

ADJUSTER-HEIGTH WELD ASSY,LH

$22.99

$

Usually ships in 4-12 days

0

16

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

17

Ariens 01184051

QUADRANT-REAR LH WELD ASSY

$13.99

$

Usually ships in 4-12 days

0

17

Ariens 01183951

QUADRANT-REAR, RH WELD ASSY

$13.99

$

Usually ships in 4-12 days

0

18

Ariens 01177451

RH HANDLEBAR MOUNT WELDMENT

$

$

Not available

18

Ariens 01177551

LH HANDLEBAR MOUNT WELDMENT

$155.99

$

Usually ships in 4-12 days

0

19

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

20

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 01182600

WHEEL-FRONT

$

$

Not available

22

Ariens 01185600

SPACER .52X.75X.56

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, only 2 left!

0

24

Ariens 01184200

ADJUSTER-HEIGHT,FRONT LH

$22.99

$

Usually ships in 4-12 days

0

24

Ariens 01184300

ADJUSTER-HEIGHT,FRONT RH

$22.99

$

Usually ships in 4-12 days

0

25

Ariens 01185500

AXLE-FRONT

$

$

Not available

26

Ariens 01183651

QUADRANT-FRONT LH

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 01183751

QUADRANT-FRONT RH

$5.99

$

Usually ships in 4-12 days

0

27

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

28

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

29

Ariens 01184151

RETAINER-DETHATCHER WELD ASSY

$5.99

$

Usually ships in 4-12 days

0

30

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

31

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

32

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

Usually ships in 4-12 days

0

34

Ariens 01184700

COVER-WHEEL INNER,LH

$20.99

$

Usually ships in 4-12 days

0

34

Ariens 01184600

COVER-WHEEL INNER,RH

$20.99

$

Usually ships in 4-12 days

0

35

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 05718700

RG-RTNG-EXT 1.625X.062

$

$

Not available

37

Ariens 01185400

BRACKET-TRANSMISSION MOUNT

$5.99

$

Usually ships in 4-12 days

0

38

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06928000

CLIP

$3.49

$

Usually ships in 4-12 days

0

40

Ariens 07415600

@SCR-TAP 8-32X.50 HWH TR YWZC

$2.49

$

Usually ships in 4-12 days

0

41

Ariens 05701500

RG-RTNG-EXT .500X.035
(Superseded to 05717100)

$2.49

$

Usually ships in 4-12 days

0

42

Ariens 07326100

SHEAVE-3.75X.395 W/HUB

$

$

Not available

43

Ariens 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, Qty 5

0

44

Ariens 08335600

SG-TENS .051X.50X5.30XWLD12

$34.99

$

Usually ships in 4-12 days

0

45

Ariens 01436400

KEY-RATCHET

$

$

Not available

46

Ariens 01436500

PINION/RATCHET-LH 15T

$

$

Not available

46

Ariens 01436600

PINION/RATCHET-RH 15T

$

$

Not available

47

Ariens 05705800

RG-RTNG-EXT .438X.025

$1.99

$

Usually ships in 4-12 days

0
