911510 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

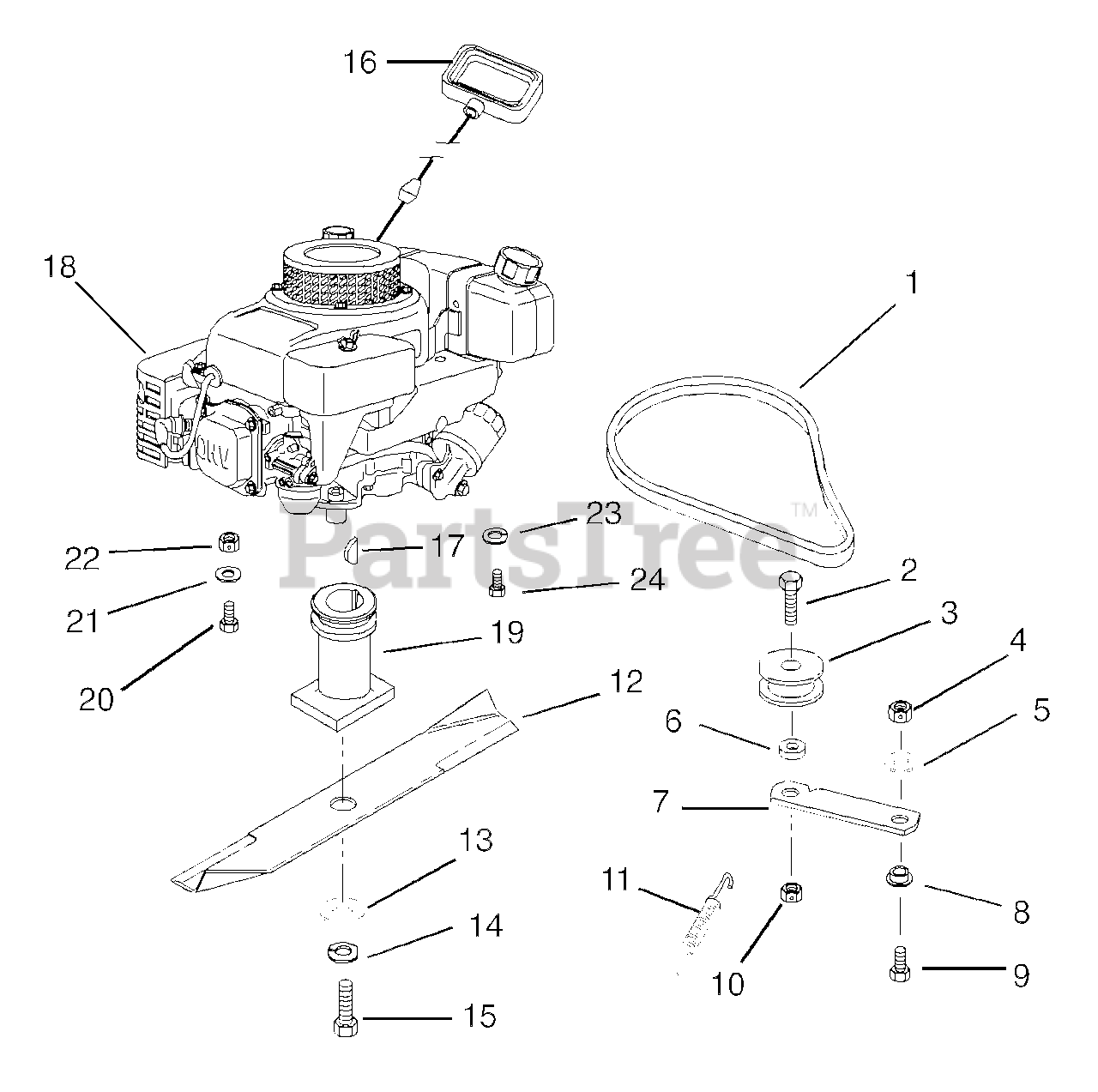

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07217100

V-Belt

$31.99

$

In Stock, Qty 14

0

2

Gravely 05963800

Bolt-Hex .44-14 x 1.25 Grade 5

$2.99

$

In Stock, only 1 left!

0

3

Gravely 07313300

Idler-Flat 1.75 x .47

$35.99

$

In Stock, Qty 20+

0

4

Gravely 06529800

Nut-Locking-Center .31 -18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06436700

Washer-Flat-Steel .323 x .625 x .062
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

6

Gravely 01142000

Spacer .52 x .45 x .34
(Superseded to 51108800)

$19.99

$

In Stock, only 1 left!

0

7

Gravely 01141200

Idler Arm

$22.99

$

In Stock, only 1 left!

0

8

Gravely 05515400

Bushing-Flange .325 x .501 x .250 x 1.120

$3.99

$

In Stock, only 4 left!

0

9

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

10

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 08321100

Spring, Tension .043 x .44 x 3.31

$6.49

$

In Stock, Qty 19

0

12

Gravely 01137051

Blade, 21" Mower
(Superseded to 01137000)

$23.99

$

In Stock, Qty 16

0

12

Gravely 01182400

Blade, 21" Mower Tungsten
(Superseded to 01137000)

$23.99

$

In Stock, Qty 16

0

13

Gravely 06441700

Washer-Flat Steel .390 x 1.50 x .125

$3.99

$

In Stock, only 3 left!

0

14

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

15

Gravely 05976600

Bolt, Hex .38-24 x 2.00 Grade 8

$2.99

$

In Stock, Qty 6

0

16

Gravely 01157100

Recoil Start Handle

$7.99

$

In Stock, only 2 left!

0

17

Gravely 106750

Key-Woodruff .156 x .625 x .25
(Superseded to 06600900)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 08247700

Engine, Robin 6 HP 4 Cycle

$

$

Not available

19

Gravely 01121700

Blade Adapter

$77.99

$

Usually ships in 4-12 days

0

20

Gravely 05947500

Bolt - Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0

22

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06307400

Washer - Locking .312 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

24

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0
