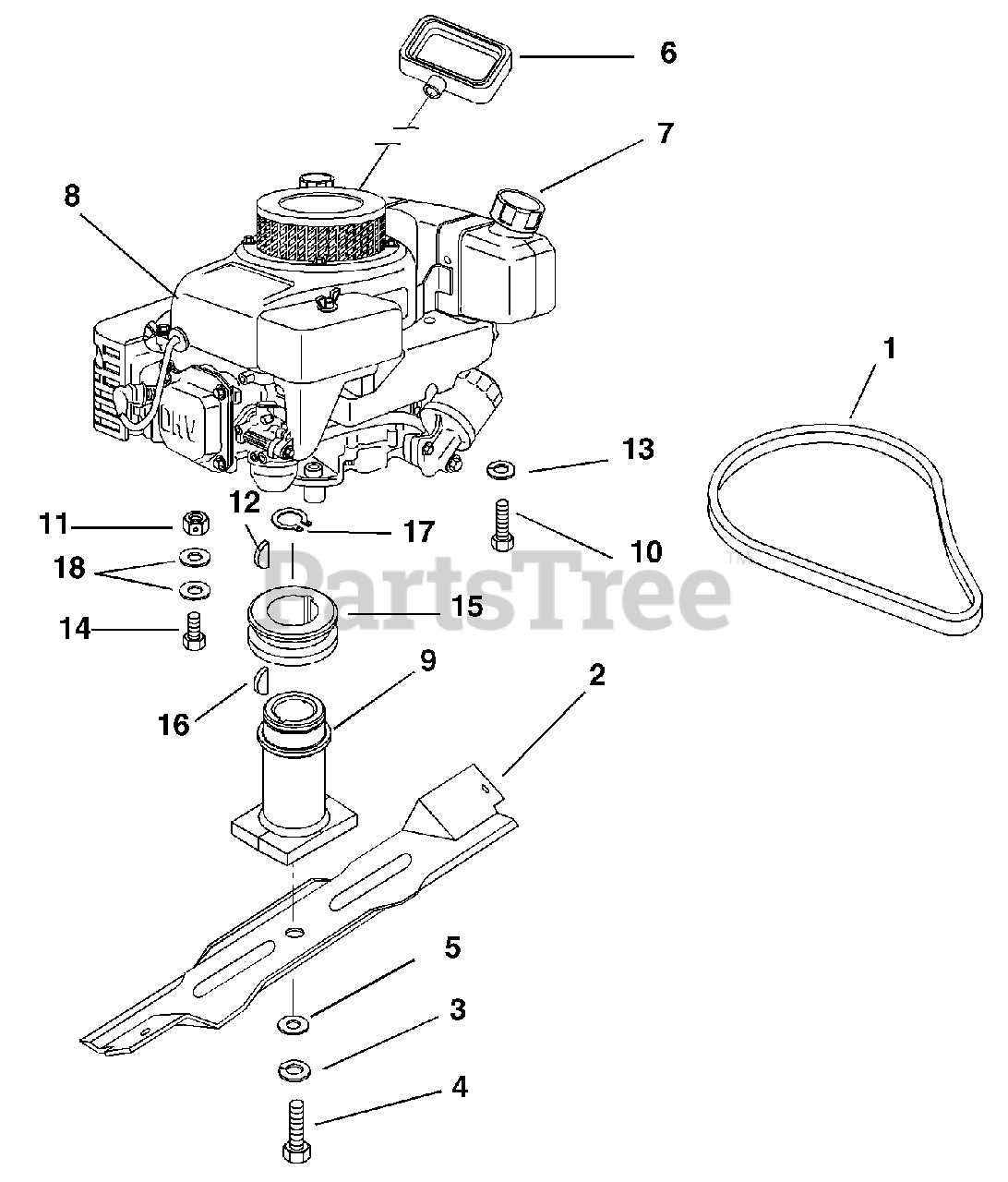

911512 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07237600

V-Belt 3L Section

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 01182400

Blade, 21" Mower
(Superseded to 01137000)

$23.99

$

In Stock, Qty 16

0

3

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

4

Gravely 05958600

Bolt-Hex .38-24 x 2.00
(Superseded to 05902015)

$2.99

$

In Stock, only 2 left!

0

5

Gravely 06441700

Washer-Flat Steel .390 x 1.50 x .125

$3.99

$

In Stock, only 3 left!

0

6

Gravely 01157100

Recoil Start Handle

$7.99

$

In Stock, only 2 left!

0

7

Gravely 07517600

Fuel Cap

$

$

Not available

8

Gravely 08247700

Engine, Robin 6 HP 4 Cycle

$

$

Not available

9

Gravely 01185300

Blade Adapter .875 Dia w/Keyway

$

$

Not available

10

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

11

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 106750

Key-Wooddruff .156 x .625 x .25
(Superseded to 06600900)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 06307400

Washer-Locking .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

14

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 07326200

Sheave-2.94 x 1.378

$

$

Not available

16

Gravely 271089

Key-Woodruff .13 x .38
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 05705600

Ring-Retaining

$

$

Not available

18

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0
