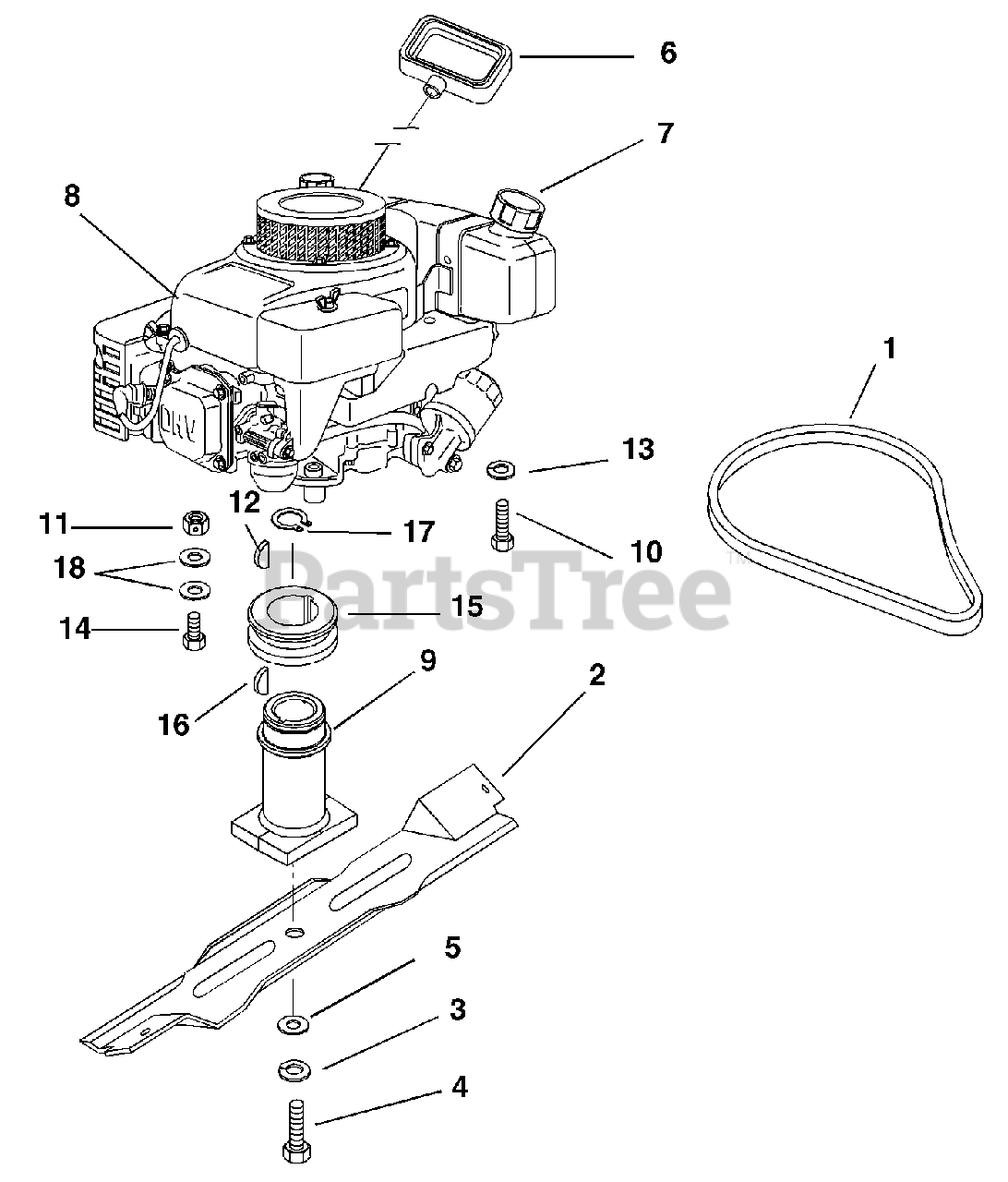

911512 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07237600

V-BELT, 3L-RAW EDGE

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 01182400

BLADE, 21" MOWER TUNGSTEN
(Superseded to 01137000)

$25.99

$

In Stock, Qty 20+

0

3

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

$3.49

$

In Stock, only 2 left!

0

5

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

6

Gravely 01157100

HANDLE, RECOIL START

$8.49

$

In Stock, only 2 left!

0

7

Gravely 07517600

FUEL CAP

$

$

Not available

8

Gravely 08247700

ENGINE ROBIN 6HP. PR LUBE.

$

$

Not available

9

Gravely 01185300

ADAPTER-BLADE,COM

$

$

Not available

10

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 106750

KEY-WDRF .156X.625X.25 SAE 6
(Superseded to 06600900)

$2.49

$

In Stock, Qty 6

0

13

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

14

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 12

0

15

Gravely 07326200

SHEAVE-2.94X1.378

$

$

Not available

16

Gravely 271089

KEY-WDRF .13X.38 HRD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 05705600

RG-RTNG-EXT 1.375X.050

$

$

Not available

18

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0
