911512 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

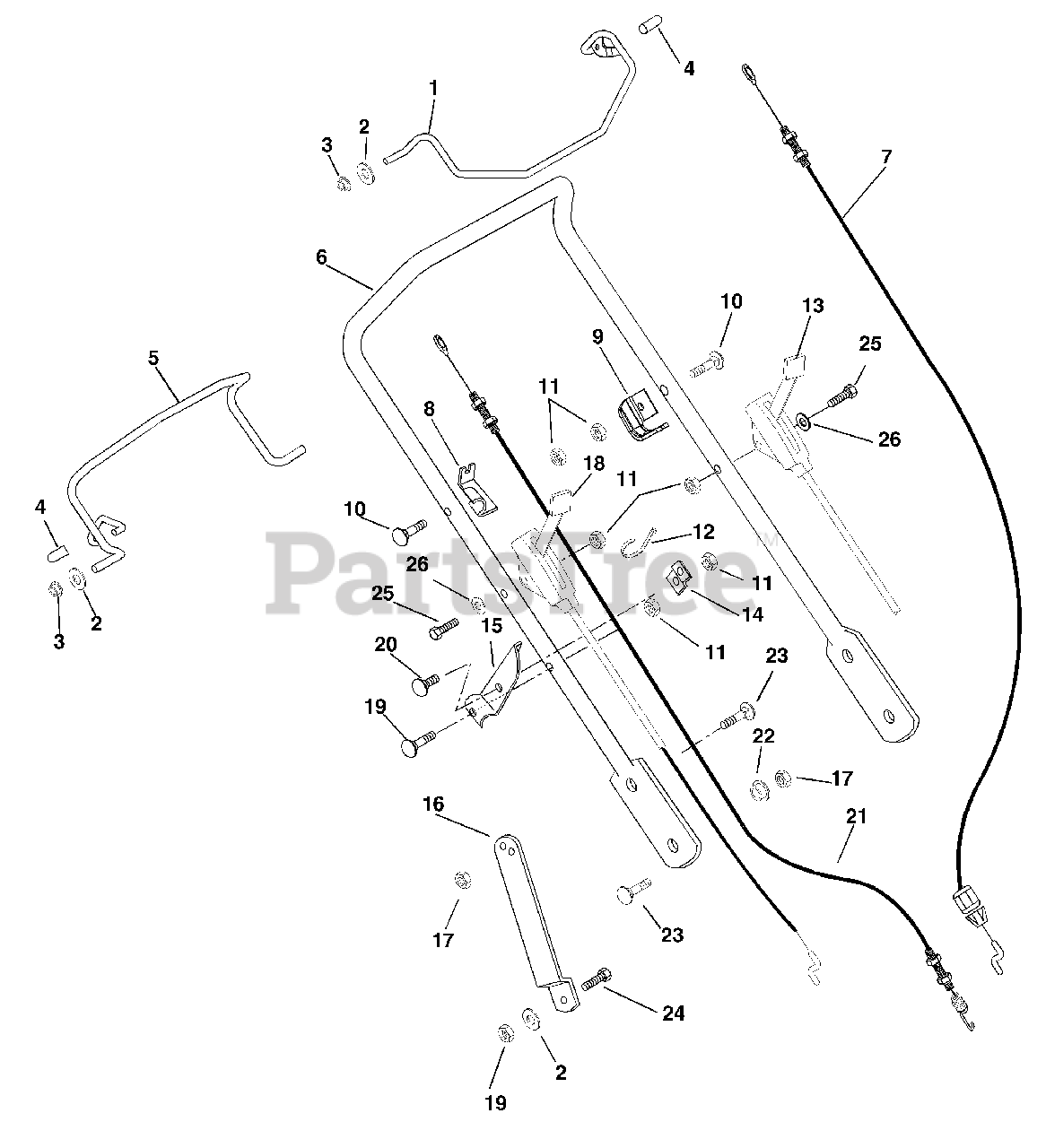

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 01177251

Engine Bail Weldment

$

$

Not available

2

Gravely 06437200

Washer-Flat-Steel .325 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

3

Gravely 05514500

Bushing-Flange .325 x .688 x .560

$3.99

$

In Stock, Qty 20+

0

4

Gravely 07517000

Cap, Vinyl .25 I.D.

$3.49

$

In Stock, Qty 11

0

5

Gravely 01188051

Traction Bail

$

$

Not available

6

Gravely 01184851

Handlebar, Self-Proppelled
(Superseded to 01245351)

$

$

Not available

7

Gravely 06937900

Engine Control Cable

$45.99

$

Usually ships in 4-12 days

0

8

Gravely 01137551

Cable Anchor-Right Hand

$

$

Not available

9

Gravely 01155751

Cable Anchor-Left Hand
(Superseded to 01245651)

$12.99

$

In Stock, only 1 left!

0

10

Gravely 06220100

Bolt-Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 2 left!

0

11

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

13

Gravely 06940100

Throttle Cable

$

$

Not available

14

Gravely 01141851

Brace-Speed Control

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 01137451

Bracket-Speed Control
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 01158651

Handlebar Bracket

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 06529800

Nut-Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06944300

Cable-Gear Shift

$

$

Not available

19

Gravely 06222300

Bolt-Round Head Square Neck .25-20 x 1.38
(Superseded to 06200331)

$1.49

$

In Stock, Qty 10

0

20

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

21

Gravely 06944400

Traction Cable

$

$

Not available

22

Gravely 01305900

Shoulder Spacer

$2.49

$

In Stock, Qty 16

0

23

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, only 1 left!

0

24

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

25

Gravely 05964700

Bolt-Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

26

Gravely 06442300

Washer-Flat-Steel .250 x .562 x .049

$1.99

$

In Stock, only 1 left!

0
