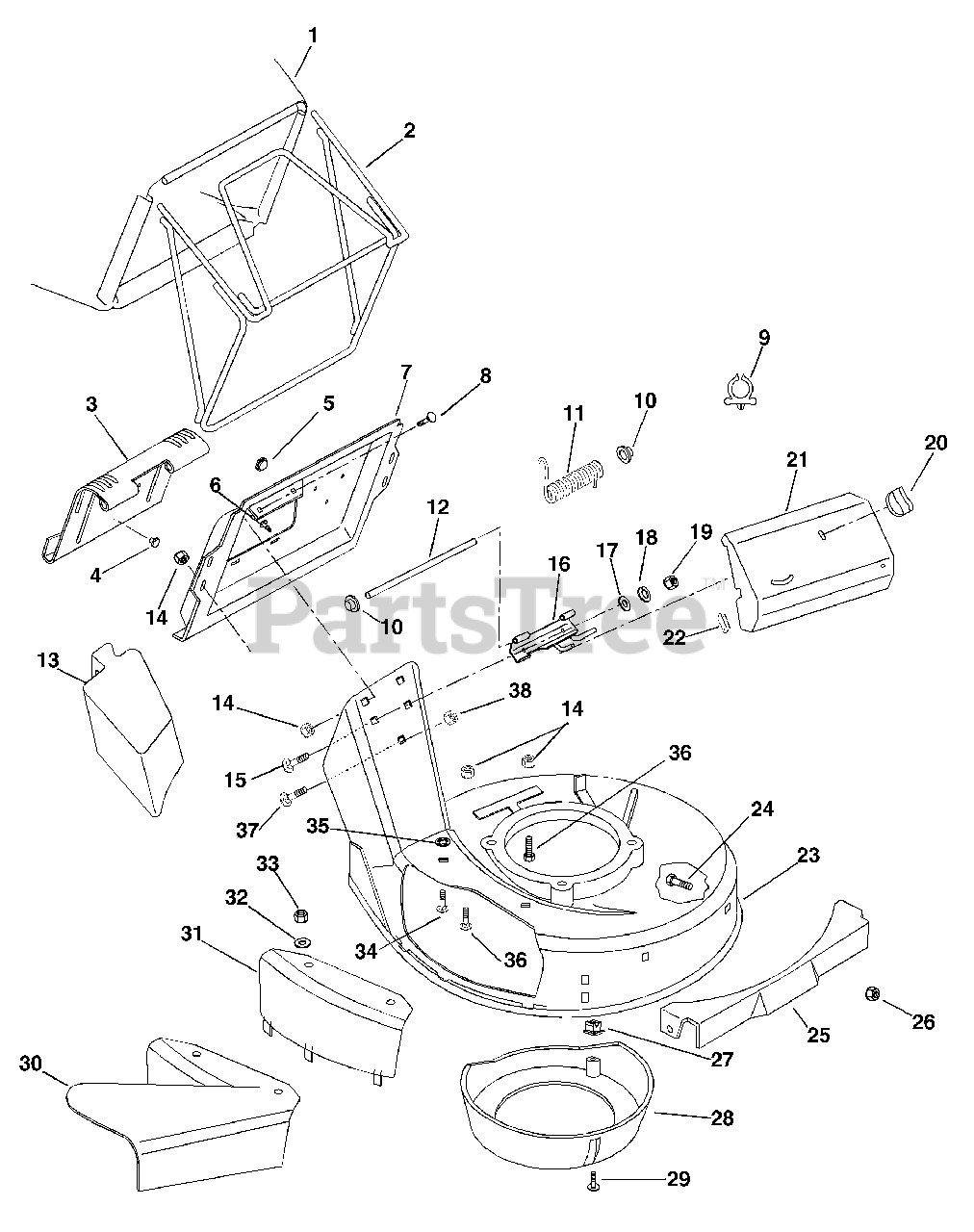

911512 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

Mower Pan And Bag Parts Diagram

  • Title

1

Gravely 01180500

Bag-Consumer Black

$118.99

$

In Stock, Qty 5

0

2

Gravely 01138751

Bagger Frame
(Superseded to 01241851)

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 01136553

Door-Catcher Plate

$

$

Not available

4

Gravely 07516000

Button Bumper

$1.49

$

In Stock, only 2 left!

0

5

Gravely 07511800

Bumper

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 07414900

Screw-Tapping 10-24 x .375 Hex Washer Head

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 01177753

Plate-Catcher

$

$

Not available

8

Gravely 06203900

Bolt-Round Head Square Neck .25-20 x .38

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 01166500

Snap-in Clip

$

$

Not available

10

Gravely 02215300

Nut-Push

$2.49

$

In Stock, Qty 15

0

11

Gravely 08322400

Spring-Torsion .120 x .68 x 3.09

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 01141000

Pin-Door

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 71102700

Mulch Master Mulcher Accessory

$52.99

$

In Stock, only 3 left!

0

14

Gravely 06530100

Nut-Locking-Flange .25-20
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$1.49

$

In Stock, Qty 7

0

16

Gravely 01155553

Hinge Base Weldment

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 06439100

Washer-Flat-Steel .033 x .087 x .179
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

18

Gravely 06308000

Washer-Locking .25 x .077

$0.99

$

Usually ships in 4-12 days

0

19

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

20

Gravely 01159300

Nut-Wing

$

$

Not available

21

Gravely 01158853

Cover-Drive

$121.99

$

Usually ships in 4-12 days

0

22

Gravely 01155400

Bumper-Trim
(Superseded to 01177300)

$7.49

$

Usually ships in 4-12 days

0

23

Gravely 51107300

Mower Pan Head w/ Decals

$

$

Not available

24

Gravely 06222000

Bolt-Round Head Square Neck .31-18 x .50
(Superseded to 06200406)

$3.49

$

In Stock, Qty 15

0

25

Gravely 01183453

Panel-Front

$9.49

$

Usually ships in 4-12 days

0

26

Gravely 06530400

Nut-Locking .31-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 039149

Grommet-Plastic
(Superseded to 07507600)

$0.99

$

In Stock, Qty 10

0

28

Gravely 01173700

Baffle-Center

$46.99

$

Usually ships in 4-12 days

0

29

Gravely 07415000

Screw-Tapping 10-16 x .62 Hex Washer Head

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 01180200

Side Discharge Assembly

$36.99

$

In Stock, Qty 6

0

31

Gravely 01180351

Side Discharge Cover

$46.99

$

In Stock, only 2 left!

0

32

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06530200

Nut-Locking-Center .31-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

35

Gravely 040380

Nut-Push .312
(Superseded to 06514900)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

37

Gravely 05967000

Bolt-Round Shank Square Neck .38-16 x .75 Grade 5

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 06534900

Nut-Locking-Center .38-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0
