911512 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Wheels And Adjusters Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

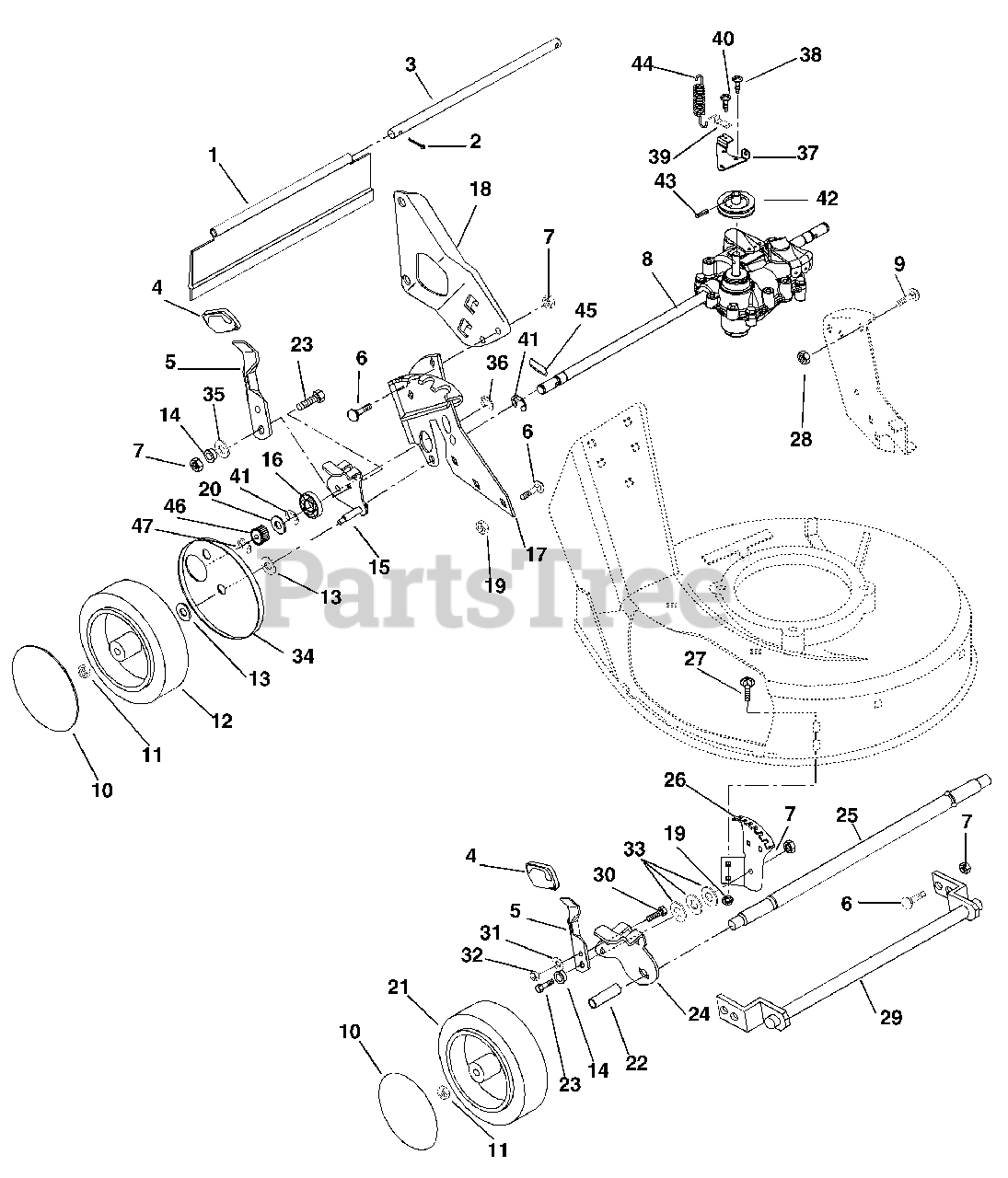

Wheels And Adjusters Parts Diagram

  • Title

1

Gravely 07531300

Rear Protective Guard, Self Propelled

$

$

Not available

2

Gravely 06712400

Pin-Cotter .06 x .50

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 01184900

Rod

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 07513600

Knob

$7.99

$

In Stock, only 2 left!

0

5

Gravely 01130600

Height Adjustment Lever
(Superseded to 01242000)

$25.99

$

In Stock, only 1 left!

0

6

Gravely 06212200

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01182200

Transmission-Tuff Torque

$

$

Not available

9

Gravely 06221800

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 01182700

Cover-Wheel

$

$

Not available

11

Gravely 06541800

Nut-Jam-Locking-Nylon .438-14

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 01182500

Wheel-Rear with Gear Teeth

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 13

0

14

Gravely 05514800

Bushing-Flange .312 x .500 x .344 x .880

$3.99

$

In Stock, Qty 11

0

15

Gravely 01184400

Adjuster-Height Weldment Assembly Right Hand

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 01184500

Adjuster-Height Weldment Assembly Left Hand

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 05408000

Bearing-Ball .500 x 1.38 x .437

$5.99

$

In Stock, Qty 20+

0

17

Gravely 01184051

Rear Quadrant-Left Hand

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 01183951

Rear Quadrant-Right Hand

$13.99

$

Usually ships in 4-12 days

0

18

Gravely 01177451

Bracket-Handlebar Mounting-Right Hand

$

$

Not available

18

Gravely 01177551

Bracket-Handlebar Mounting-Left Hand

$155.99

$

Usually ships in 4-12 days

0

19

Gravely 06530400

Nut-Locking-Flanged .31-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

20

Gravely 06439200

Washer-Flat-Steel .505 x .880 x .079
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 01182600

Wheel-Front

$

$

Not available

22

Gravely 01185600

Spacer .52 x .75 x .50

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, only 2 left!

0

24

Gravely 01184200

Left Hand Adjuster Bracket

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 01184300

Right Hand Adjuster Bracket

$22.99

$

Usually ships in 4-12 days

0

25

Gravely 01185500

Axle-Front

$

$

Not available

26

Gravely 01183651

Front Quadrant, Left Hand

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 01183751

Front Quadrant, Right Hand

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 06222000

Bolt-Round Head Square Neck .31-18 x .50
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

28

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

29

Gravely 01184151

De-Thatcher Retainer Weldment

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

31

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

32

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06439700

Washer-Flat-Steel .344 x 1.375 x .075
(Superseded to 06446900)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 01184700

Cover-Wheel Inner-Left Hand

$20.99

$

Usually ships in 4-12 days

0

34

Gravely 01184600

Cover-Wheel Inner-Right Hand

$20.99

$

Usually ships in 4-12 days

0

35

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 05718700

Ring-Retaining-External 1.625 x .062

$

$

Not available

37

Gravely 01185400

Bracket-Transmission Mount

$5.99

$

Usually ships in 4-12 days

0

38

Gravely 07412000

Screw-Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 045242

Clip
(Superseded to 06928000)

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 07415600

Screw-Tapping 8-32 x .50

$2.49

$

Usually ships in 4-12 days

0

41

Gravely 05701500

Ring-Retaining-External .500 x .035
(Superseded to 05717100)

$2.49

$

Usually ships in 4-12 days

0

42

Gravely 07326100

Sheave 3.75 x .395 with Hub

$

$

Not available

43

Gravely 05800500

Pin-Roll .188 X .88

$1.99

$

In Stock, Qty 5

0

44

Gravely 08335600

Spring-Tension .051 x .50 x 5.30 x Weldment 12

$34.99

$

Usually ships in 4-12 days

0

45

Gravely 01436400

Key Ratchet

$

$

Not available

46

Gravely 01436500

Pinion/Ratchet-Left Hand 15

$

$

Not available

46

Gravely 01436600

Pinion/Ratchet-Right Hand 15

$

$

Not available

47

Gravely 05705800

Ring-Retaining-External .438 x .025

$1.99

$

Usually ships in 4-12 days

0
