911513 (LM 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 - 001523) Friction Wheel And Adjusters Parts Diagram

21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton

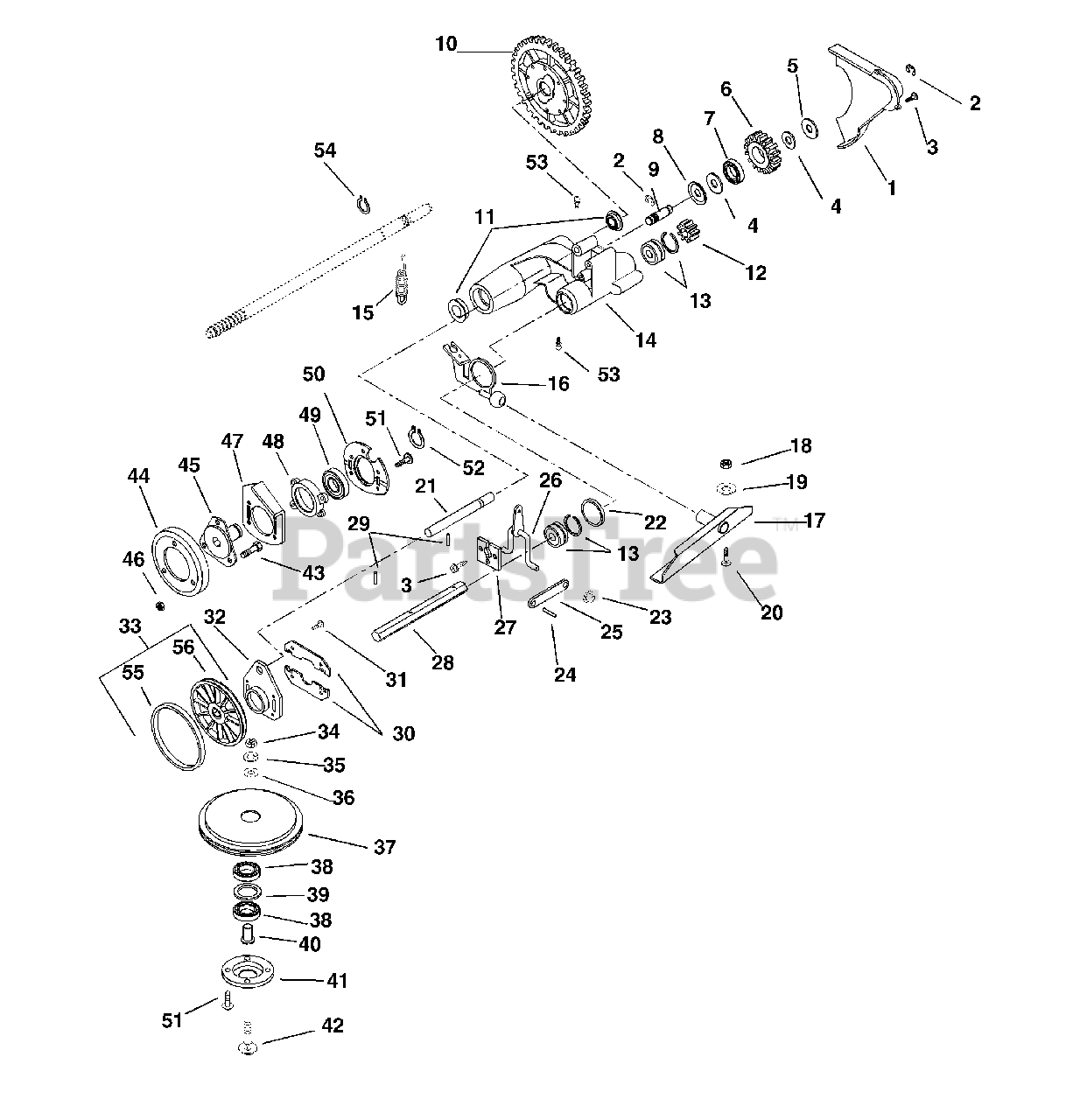

Friction Wheel And Adjusters Parts Diagram

  • Title

1

Ariens 01121051

COVER, GEAR

$39.99

$

Usually ships in 4-12 days

0

2

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 11

0

3

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 5

0

4

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

5

Ariens 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

Note: (For model 511, 514-517)

$0.99

$

In Stock, Qty 12

0

6

Ariens 01131700

IDLER GEAR

$52.99

$

Usually ships in 4-12 days

0

7

Ariens 05408000

BRG-BALL .500X1.38X.437

Note: Available as individual components or part of 51105600 Service Kit consists of (2) 05435100, (1) 05408000, (2) 05413700 and (2) 05417600.

$6.99

$

In Stock, Qty 20+

0

8

Ariens 01135100

RETAINER

$13.99

$

In Stock, only 2 left!

0

9

Ariens 01139700

IDLER SHAFT

$31.99

$

In Stock, only 3 left!

0

10

Ariens 51102400

DIFFERENTIAL ASSEMBLY

$

$

Not available

11

Ariens 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: (For model 511, 517). Available as individual components or part of 51105600 Service Kit which consists of (2) 05435100, (1) 05408000, (2) 05413700 and (2) 05417600.

$18.99

$

In Stock, only 4 left!

0

12

Ariens 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

13

Ariens 05413700

BRG-BALL .562X1.375X.437

Note: (For model 511, 517)

$33.99

$

In Stock, only 1 left!

0

14

Ariens 01140600

DRIVE MOUNT

$113.99

$

In Stock, only 1 left!

0

15

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$6.49

$

In Stock, only 1 left!

0

16

Ariens 01137900

DRIVE ACTUATOR WELDMENT
(Superseded to 01245700)

$40.99

$

Usually ships in 4-12 days

0

17

Ariens 01161959

PIVOT CHANNEL WELDMENT
(Superseded to 01161951)

$50.99

$

Usually ships in 4-12 days

0

18

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 01125100

ROD - GUIDE

$74.99

$

Usually ships in 4-12 days

0

22

Ariens 06421600

WSHR-FL-STL 1.390X2.00X.020 PL

$3.49

$

In Stock, only 2 left!

0

23

Ariens 02215300

PUSH NUT, .25

$2.49

$

In Stock, Qty 15

0

24

Ariens 05803500

PIN-ROLL .125X.50

Note: (For model 514-516)

$0.99

$

In Stock, Qty 10

0

Ariens 05804800

PIN-ROLL .125X.63

Note: (For model 511, 517)

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 01124200

SHIFT LINK

$7.99

$

In Stock, Qty 5

0

26

Ariens 01123600

SHIFT ARM WELDMENT

$23.99

$

Usually ships in 4-12 days

0

27

Ariens 01125000

RETAINER PLATE

$8.99

$

Usually ships in 4-12 days

0

28

Ariens 01125700

HEX SHAFT
(Superseded to 01240100)

$69.99

$

Usually ships in 4-12 days

0

29

Ariens 05800500

PIN-ROLL .188X.88

$2.49

$

In Stock, only 3 left!

0

30

Ariens 01153800

THRUST PLATE

$26.99

$

In Stock, only 1 left!

0

31

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

Note: (For model 514-516)

$0.99

$

Usually ships in 4-12 days

0

32

Ariens 01153900

GUIDE PLATE

Note: (For model 514-516)

$35.99

$

In Stock, only 2 left!

0

33

Ariens 51102500

FRICTION WHEEL ASSEMBLY
(Superseded to 51109700)

$112.99

$

In Stock, Qty 5

0

34

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 9

0

35

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

36

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 01127300

FRICTION SHEAVE

$

$

Not available

38

Ariens 05435100

BRG-BALL .625X1.375X.43

$16.99

$

In Stock, Qty 20+

0

39

Ariens 06420200

WSHR-FL-STL 1.062X1.344X.032PL

$4.49

$

In Stock, Qty 6

0

40

Ariens 01127400

SPINDLE - BEARING

$19.99

$

In Stock, Qty 6

0

41

Ariens 01127500

RETAINER - BEARING

$19.99

$

Usually ships in 4-12 days

0

42

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

Note: (For model 511, 517)

$3.49

$

In Stock, Qty 10

0

43

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (For model 511, 517)

$0.99

$

In Stock, Qty 5

0

44

Ariens 02201300

FRICTION DISC
(Superseded to 03248300)

Note: (For model 511, 517)

$41.99

$

In Stock, Qty 20+

0

45

Ariens 01133500

FRICTION WHEEL HUB

Note: (For model 511, 517)

$62.99

$

Usually ships in 4-12 days

0

46

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (For model 511, 517)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 01132700

BEARING PLATE
(Superseded to 00174500)

Note: (For model 511, 517)

$14.99

$

Usually ships in 4-12 days

0

48

Ariens 01131800

BEARING RETAINER

Note: (For model 511, 517)

$21.99

$

Usually ships in 4-12 days

0

49

Ariens 05416000

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05400722)

Note: (For model 511, 517)

$19.99

$

In Stock, Qty 20+

0

50

Ariens 01119200

BEARING RETAINER

Note: (For model 511, 517)

$7.99

$

Usually ships in 4-12 days

0

51

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 5

0

52

Ariens 05706200

RG-RTNG-EXT 1.00X.042

Note: (For model 511, 517)

$2.99

$

In Stock, Qty 20+

0

53

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

Note: (For model 511, 517)

$

$

Not available

54

Ariens 05701900

RG-RTNG-EXT .625X.035
(Superseded to 05711900)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 01154400

FRICTION RING
(Superseded to 01190400)

Note: (For model 514-516)

$33.99

$

In Stock, Qty 17

0

56

Ariens 01149200

FRICTION WHEEL HUB
(Superseded to 51109700)

Note: (For model 514-516)

$112.99

$

In Stock, Qty 5

0
