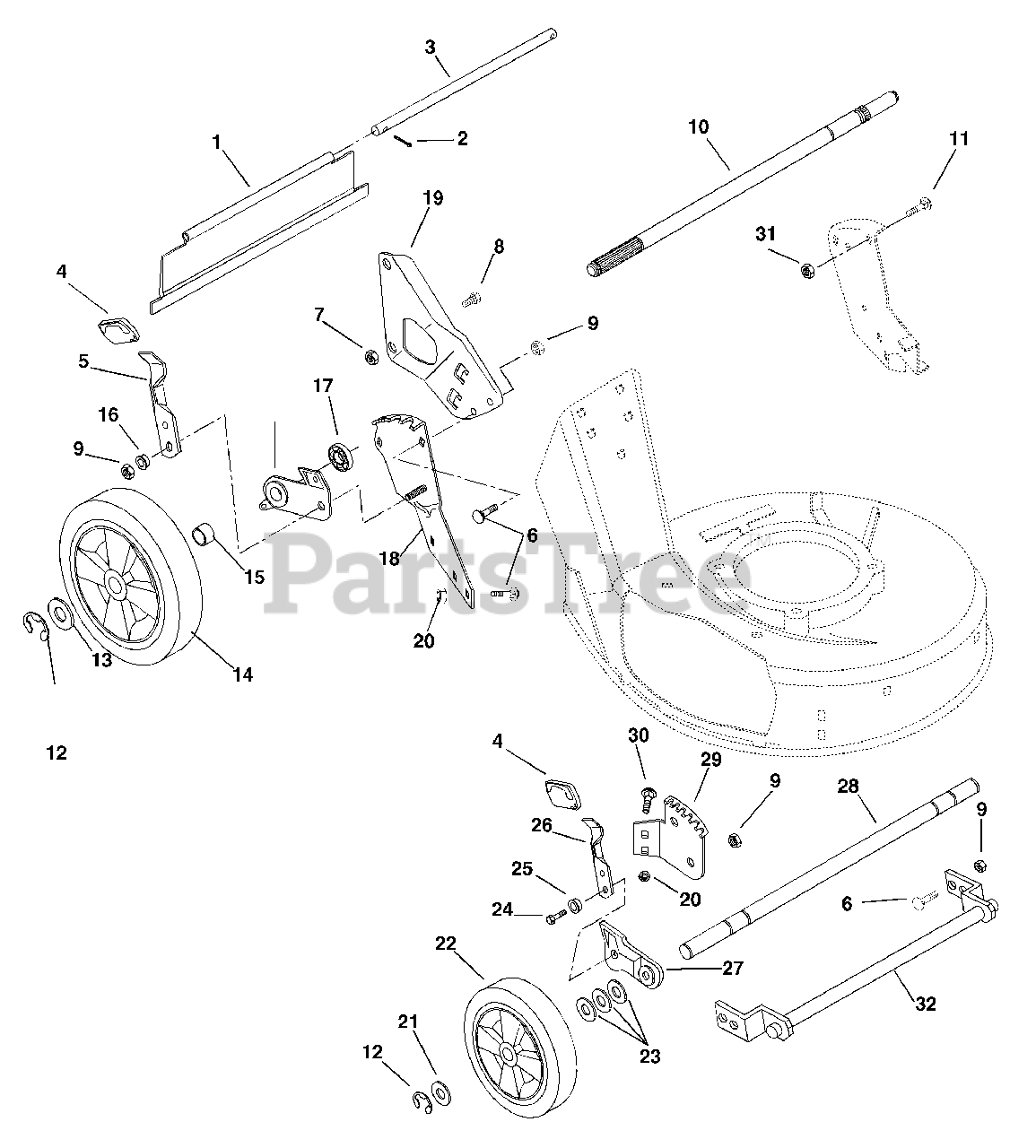

911513 (LM 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 - 001523) Wheels And Adjusters Parts Diagram

21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton

Wheels And Adjusters Parts Diagram

  • Title
1

Ariens 07522300

REAR PROTECTIVE GUARD, S.P.

Note: (For model 511, 514-517)

$21.07

$

In Stock, only 1 left!

0

1

Ariens 07522400

REAR PROTECTIVE GUARD, PUSH

Note: (For model 513)

$35.16

$

Usually ships in 4-12 days

0

2

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.58

$

Usually ships in 4-12 days

0

3

Ariens 01140000

ROD
(Superseded to 01140067)

$40.53

$

In Stock, only 1 left!

0

$5.81

$

In Stock, Qty 8

0

5

Ariens 01130600

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$24.54

$

In Stock, only 3 left!

0

6

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$2.46

$

In Stock, Qty 20+

0

7

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$2.24

$

In Stock, Qty 20+

0

8

Ariens 01167100

HANDLEBAR STUD

$17.83

$

Usually ships in 4-12 days

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.52

$

In Stock, Qty 20+

0

10

Ariens 01149500

REAR AXLE,5/8 DIA

Note: (For model 511, 514-517)

$121.69

$

Usually ships in 4-12 days

0

10

Ariens 01171900

REAR AXLE-PUSH MOWER MM

Note: (For model 513)

$49.08

$

Usually ships in 4-12 days

0

10

Ariens 01168800

REAR AXLE-PUSH MOWER

Note: (For model 513)

$

$

Not available

11

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$3.63

$

In Stock, only 2 left!

0

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$2.24

$

In Stock, Qty 20+

0

13

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.63

$

In Stock, only 2 left!

0

14

Ariens 07151200

WHL, LH 10.50"
(Superseded to 51115900)

Note: (For model 511, 514-517)

$90.33

$

In Stock, Qty 11

0

14

Ariens 07151500

WHL, RH 10.50"
(Superseded to 51115900)

Note: (For model 511, 514-517)

$90.33

$

In Stock, Qty 11

0

14

Ariens 07103900

10 1/2 TIRE SKIN
(Superseded to 51115900)

Note: (For model 511, 514-517)

$90.33

$

In Stock, Qty 11

0

14

Ariens 07152500

TIRE, REAR 10X1.75 #6 GRAY
(Superseded to 51116200)

Note: (For model 513)

$99.73

$

Usually ships in 4-12 days

0

15

Ariens 01149600

SPACER TUBE, SELF PROPEL

Note: (For model 511, 514-517)

$3.47

$

In Stock, only 1 left!

0

15

Ariens 01149700

SPACER TUBE,PUSH LH

Note: (For model 513)

$6.65

$

Usually ships in 4-12 days

0

15

Ariens 01149800

SPACER TUBE PUSH RH

Note: (For model 513)

$3.47

$

Usually ships in 4-12 days

0

16

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$3.63

$

In Stock, Qty 20+

0

16

Ariens 01158100

R.H. REAR ADJUSTOR BRACKET

Note: (For model 511, 517)

$40.53

$

Usually ships in 4-12 days

0

16

Ariens 01158200

L.H. REAR ADJUSTOR BRACKET

Note: (For model 511, 517)

$53.55

$

Usually ships in 4-12 days

0

16

Ariens 01130700

REAR ADJUSTMENT BRACKET L.H.

Note: (For model 513-516)

$45.00

$

Usually ships in 4-12 days

0

16

Ariens 01150400

REAR BRACKET & BEARING ASSY RH

Note: (For model 514-516)

$110.63

$

Usually ships in 4-12 days

0

16

Ariens 01131300

REAR BRACKET & BEARING ASSEMBL

Note: (For model 513)

$52.27

$

Usually ships in 4-12 days

0

16

Ariens 01131200

REAR BRACKET & BEARING ASSEMBL

Note: (For model 513)

$52.27

$

Usually ships in 4-12 days

0

17

Ariens 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: (For model 511, 517)

$13.36

$

In Stock, Qty 10

0

18

Ariens 01154251

QUADRANT, REAR LH

$54.06

$

In Stock, only 1 left!

0

18

Ariens 01154351

QUADRANT, REAR RH

$54.06

$

Usually ships in 4-12 days

0

19

Ariens 01137251

RH HANDLEBAR MTG. BRKT

Note: (For model 513-517)

$49.14

$

In Stock, only 2 left!

0

19

Ariens 01137151

LH HANDLEBAR MTG. BRKT

Note: (For model 513-517)

$54.06

$

In Stock, only 3 left!

0

19

Ariens 01177451

RH HANDLEBAR MOUNT WELDMENT

Note: (For model 511)

$134.10

$

Usually ships in 4-12 days

0

19

Ariens 01177551

LH HANDLEBAR MOUNT WELDMENT

Note: (For model 511)

$132.76

$

Usually ships in 4-12 days

0

20

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.24

$

In Stock, Qty 20+

0

21

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.63

$

In Stock, only 2 left!

0

22

Ariens 07149900

WHL 7.50" .50 BORE, 1.50 HUB

Note: (For model 511, 514-517)

$24.54

$

In Stock, only 4 left!

0

22

Ariens 07152400

TIRE, FRONT 7X1.50

Note: (For model 513)

$44.66

$

In Stock, Qty 10

0

23

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

Note: (For model 511, 513-515, 517)

$2.24

$

In Stock, Qty 10

0

24

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (For model 511, 513-515, 517)

$1.96

$

In Stock, Qty 20+

0

25

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$3.63

$

In Stock, Qty 20+

0

26

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

Note: (For model 511, 513-515, 517)

$19.62

$

In Stock, only 2 left!

0

27

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

Note: (For model 513-515, 517)

$40.53

$

Usually ships in 4-12 days

0

27

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

Note: (For model 513-515, 517)

$40.53

$

In Stock, only 1 left!

0

27

Ariens 01176800

RH ADJUSTER BRACKET

Note: (For model 511)

$43.21

$

Usually ships in 4-12 days

0

27

Ariens 01176900

LH ADJUSTER BRACKET

Note: (For model 511)

$47.29

$

Usually ships in 4-12 days

0

28

Ariens 01168900

FRONT AXLE

Note: (For model 513-515, 517)

$49.08

$

Usually ships in 4-12 days

0

29

Ariens 01154051

FRONT QUADRANT, LH

Note: (For model 513-515, 517)

$29.96

$

In Stock, Qty 5

0

29

Ariens 01154151

FRONT QUADRANT, RH

Note: (For model 513-515, 517)

$39.07

$

In Stock, only 1 left!

0

30

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: (For model 513-515, 517)

$2.18

$

Usually ships in 5-11 days

0

31

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$2.24

$

In Stock, Qty 20+

0

32

Ariens 01156051

DETHATCHER RETAINER WELDMENT
(Superseded to 01242751)

Note: (For model 511, 517)

$110.63

$

In Stock, only 1 left!

0
