911514 (LM 21 S) - Ariens 21" Self-Propelled Walk-Behind Mower, 6.75hp Briggs & Stratton (SN: 006618 - 014799) Blade And Belt Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6.75hp Briggs & Stratton

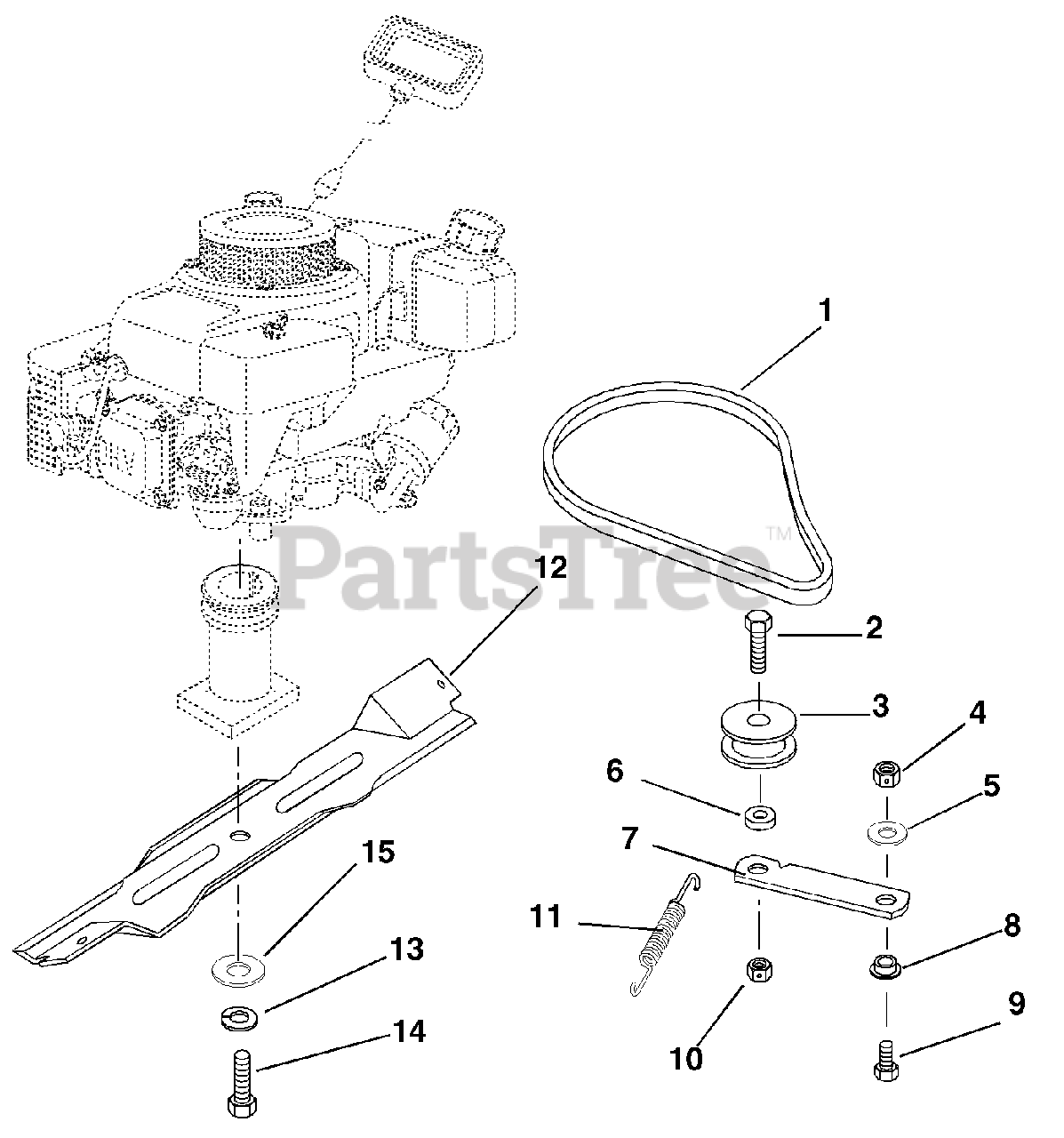

Blade And Belt Parts Diagram

  • Title

1

Ariens 07217100

V-BELT, 3L-COGGED

Note: (Models 511, 514 - 516)

$35.99

$

In Stock, Qty 20+

0

2

Ariens 05963800

@BLT-HEX .44-14X1.25 GR5 YWZC

Note: (Models 511, 514 - 516)

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 07313300

IDLER-FLAT 1.75 X .47

Note: (Models 511, 514 - 516)

$36.99

$

In Stock, Qty 18

0

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Models 511, 514 - 516)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

Note: (Models 511, 514 - 516)

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 01142000

SPACER .52 X .45 X .34
(Superseded to 51108800)

Note: (Models 511, 514 - 516)

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 01141200

IDLER ARM

Note: (Models 511, 514 - 516)

$23.99

$

In Stock, only 2 left!

0

8

Ariens 05515400

BSHG-FLG .325X.501X.250X1.120

Note: (Models 511, 514 - 516)

$3.99

$

In Stock, Qty 10

0

9

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (Models 511, 514 - 516, 522)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

Note: (Models 511, 514 - 516)

$3.49

$

In Stock, Qty 10

0

11

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

Note: (Models 511, 514 - 516)

$6.49

$

In Stock, Qty 20+

0

12

Ariens 01137051

BLADE LM 21 IN
(Superseded to 01137000)

$25.99

$

In Stock, Qty 20+

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

14

Ariens 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 4 left!

0

15

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0
