911525 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, Briggs & Stratton (SN: 007001 - 016999) Engine, Blade And Belt Parts Diagram

21" Self-Propelled Walk-Behind Mower, Briggs & Stratton

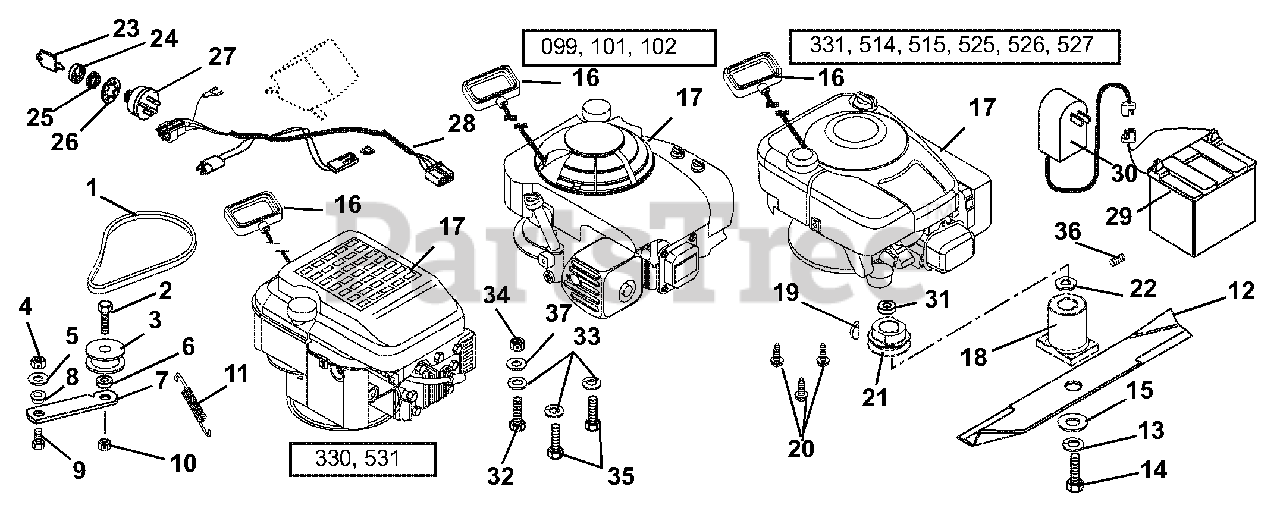

Engine, Blade And Belt Parts Diagram

  • Title

1

Ariens 07217100

V-BELT, 3L-COGGED

$35.99

$

In Stock, Qty 20+

0

2

Ariens 05962800

@BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

3

Ariens 07313300

IDLER-FLAT 1.75 X .47

$36.99

$

In Stock, Qty 14

0

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05533300

BSHG-SLV .469 X .750 X .430

$3.99

$

In Stock, Qty 10

0

7

Ariens 01141200

IDLER ARM

$23.99

$

In Stock, only 2 left!

0

8

Ariens 05515400

BSHG-FLG .325X.501X.250X1.120

$3.99

$

In Stock, Qty 10

0

9

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, Qty 10

0

11

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 20+

0

12

Ariens 01176700

BLADE, 21" LM MULCHING

$28.99

$

In Stock, Qty 6

0

12

Ariens 01137000

21" MOWER BLADE

Note: (102)

$25.99

$

In Stock, Qty 20+

0

12

Ariens 01182400

BLADE, 21" MOWER TUNGSTEN
(Superseded to 01137000)

Note: (102)

$25.99

$

In Stock, Qty 20+

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

14

Ariens 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 4 left!

0

15

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

16

Ariens 01157100

HANDLE, RECOIL START

$8.49

$

In Stock, only 2 left!

0

17

Ariens 08268700

ENGINE, B&S QUANTUM 6.5HP

Note: (330, 531)

$

$

Not available

17

Ariens 08266100

ENGINE, B&S INTEK PRO 6.75

Note: (526)

$

$

Not available

17

Ariens 08269700

ENG, B&S 6.75HP INTEK OHV RCL

Note: (514, 525)

$

$

Not available

17

Ariens 08245800

ENG, B&S 6.75HP INTEK OHV ELEC

Note: (331, 515)

$

$

Not available

17

Ariens 08270800

ENGINE, HONDA GCV

Note: (099, 101)

$

$

Not available

17

Ariens 08270500

ENGINE - HONDA 5.5 HP OHV

Note: (102)

$

$

Not available

18

Ariens 09733200

ADAPTER-SINTERED IRON LM
(Superseded to 09735100)

$46.99

$

Usually ships in 4-12 days

0

18

Ariens 09733300

ADAPTER - BLADE HUB

Note: (102)

$40.99

$

Usually ships in 4-12 days

0

19

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

Note: (099, 101, 330, 331, 514, 515, 525, 526, 531)

$2.49

$

In Stock, Qty 11

0

20

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

Note: (099, 101, 331, 514, 515, 525, 526, 531)

$17.99

$

Usually ships in 4-12 days

0

21

Ariens 09733400

PULLEY - UNV DRIVE - STEEL

Note: (102)

$105.99

$

Usually ships in 4-12 days

0

22

Ariens 01192900

WASHER-WAVE .885X1.311X.125

Note: (099, 101, 330, 331, 514, 515, 525, 526, 531)

$5.49

$

In Stock, Qty 6

0

23

Ariens 02460700

KEY -W/CAP

Note: (331, 515)

$10.99

$

In Stock, Qty 20+

0

24

Ariens 07517700

CAP - IGNITION SWITCH

Note: (331, 515)

$3.99

$

In Stock, Qty 19

0

25

Ariens 06517300

NUT-PANEL .625-32 GRECO

Note: (331, 515)

$9.49

$

Usually ships in 4-12 days

0

26

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

Note: (331, 515)

$4.99

$

Usually ships in 4-12 days

0

27

Ariens 01190600

SWITCH, KEY ELECTRIC START-LM

Note: (331, 515)

$

$

Not available

28

Ariens 01198000

HARNESS, WIRE

Note: (331, 515)

$

$

Not available

29

Ariens 01178400

BATTERY,
(Superseded to 51106400)

Note: (331, 515)

$151.99

$

Usually ships in 4-12 days

0

30

Ariens 01126000

BATTERY CHARGER

Note: (515)

$

$

Not available

30

Ariens 01241700

CHARGER, 220 V BATTERY

Note: (331)

$

$

Not available

31

Ariens 05500002

SPACER, .875X1.125X.551

Note: (099, 101)

$10.99

$

Usually ships in 4-12 days

0

32

Ariens 05963500

BLT-HEX .31-24X1.50 GR5 YWZC

Note: (102)

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (102)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

Note: (102)

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 05963600

BLT-HEX .31-24X1.00 GR5 YWZC

Note: (102)

$2.99

$

Usually ships in 4-12 days

0

36

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

Note: (102)

$3.49

$

In Stock, only 2 left!

0

37

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (102)

$0.99

$

In Stock, Qty 20+

0
