911530 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6.75hp Briggs & Stratton (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, 6.75hp Briggs & Stratton

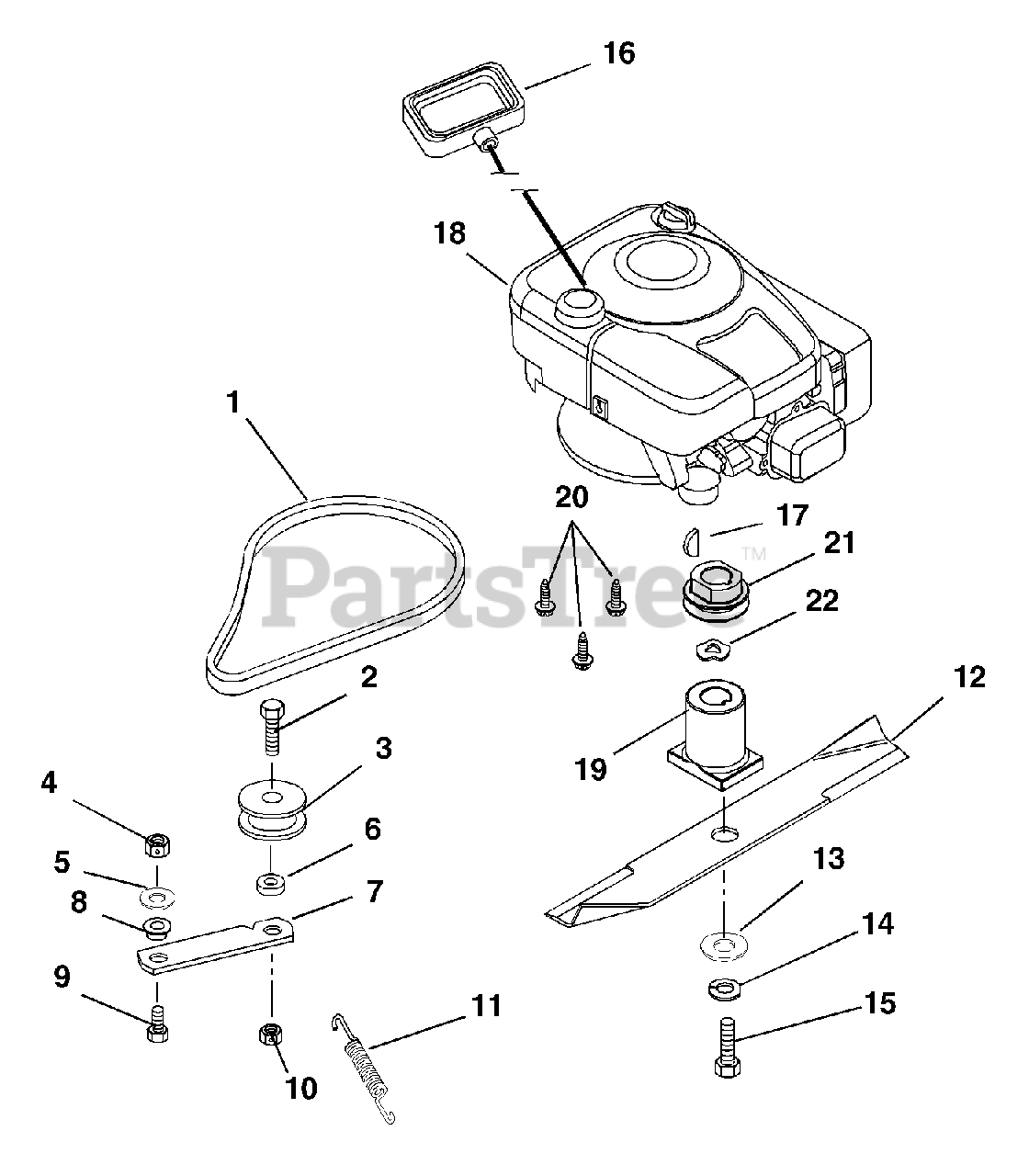

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07217100

V-BELT, 3L-COGGED

$36.99

$

In Stock, Qty 12

0

2

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$3.49

$

In Stock, only 1 left!

0

3

Gravely 07313300

IDLER-FLAT 1.75 X .47

$37.99

$

In Stock, Qty 9

0

4

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 05533300

BSHG-SLV .469 X .750 X .430

$4.99

$

In Stock, only 4 left!

0

7

Gravely 01141200

IDLER ARM

$23.99

$

In Stock, only 2 left!

0

8

Gravely 05515400

BSHG-FLG .325X.501X.250X1.120

$4.99

$

In Stock, Qty 7

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06536400

NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$4.99

$

In Stock, only 3 left!

0

11

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.99

$

In Stock, Qty 17

0

12

Gravely 01137000

21" MOWER BLADE

$26.99

$

In Stock, Qty 20+

0

Gravely 01182400

BLADE, 21" MOWER TUNGSTEN
(Superseded to 01137000)

$26.99

$

In Stock, Qty 20+

0

13

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$4.99

$

In Stock, Qty 9

0

14

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$3.49

$

In Stock, only 2 left!

0

16

Gravely 01157100

HANDLE, RECOIL START

$9.49

$

In Stock, only 2 left!

0

17

Gravely 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.99

$

In Stock, Qty 5

0

18

Gravely 08266100

ENGINE, B&S INTEK PRO 6.75

$

$

Not available

19

Gravely 09733200

ADAPTER-SINTERED IRON LM
(Superseded to 09735100)

$49.99

$

Usually ships in 4-12 days

0

20

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$4.99

$

In Stock, Qty 18

0

21

Gravely 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

$18.99

$

Usually ships in 4-12 days

0

22

Gravely 01192900

WASHER-WAVE .885X1.311X.125

$6.49

$

In Stock, only 2 left!

0
