911530 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6.75hp Briggs & Stratton (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Walk-Behind Mower, 6.75hp Briggs & Stratton

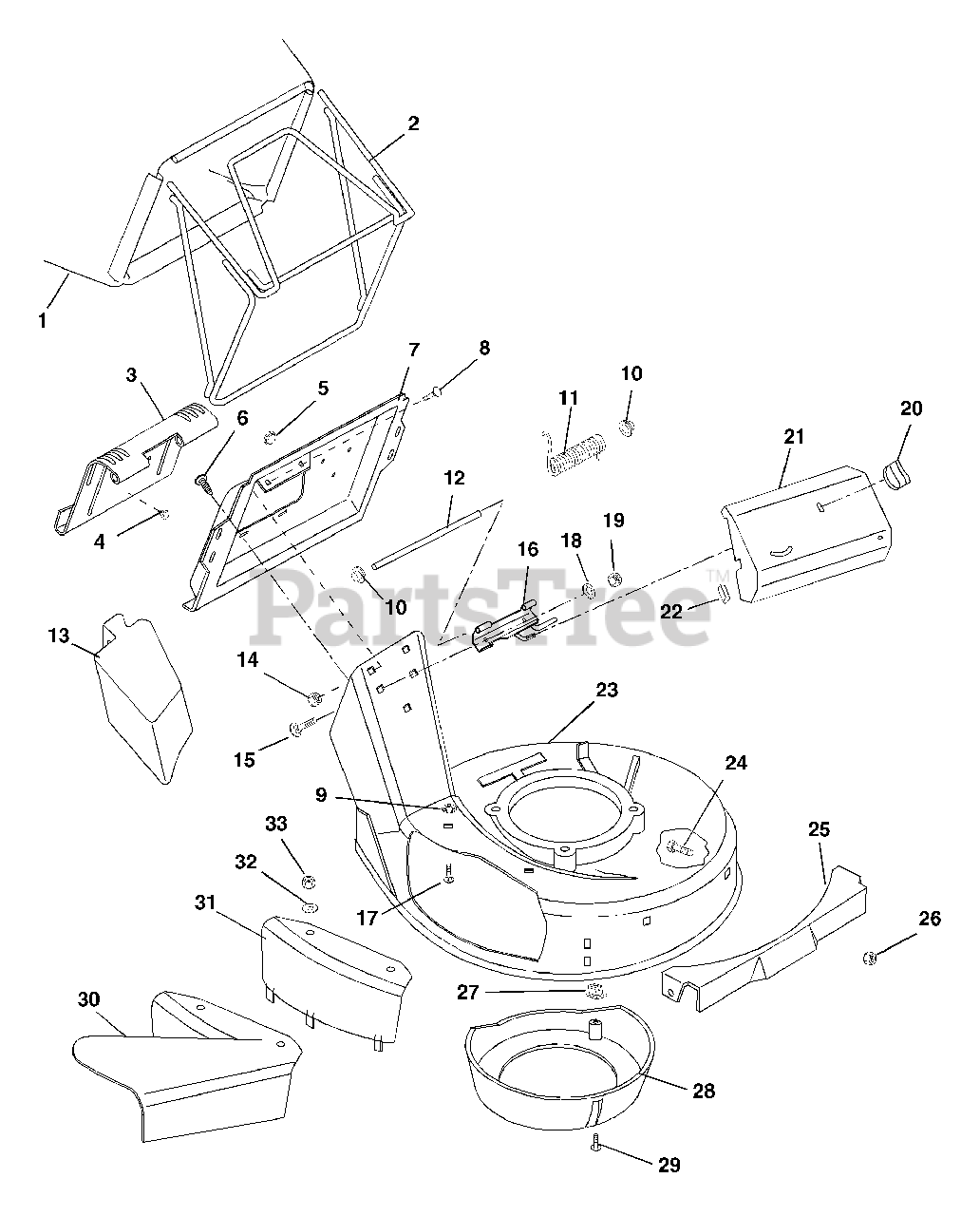

Mower Pan And Bag Parts Diagram

  • Title

1

Gravely 01180500

Bag-Consumer Black

$116.99

$

In Stock, only 1 left!

0

2

Gravely 01138751

Bagger Frame
(Superseded to 01241851)

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 01136553

Door-Catcher Plate

$

$

Not available

4

Gravely 07516000

Button Bumper

$1.99

$

In Stock, Qty 17

0

5

Gravely 07511800

Bumper

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 07414900

Screw-Tapping 10-24 x .38 Pan Head

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 01177753

Plate , Catcher

$

$

Not available

8

Gravely 06203900

Bolt-Round Head Square Neck .25-20 x .38

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 040380

Nut-Push .312
(Superseded to 06514900)

$0.99

$

In Stock, Qty 13

0

10

Gravely 02215300

Nut-Push

$1.99

$

In Stock, Qty 16

0

11

Gravely 08322400

Spring-Torsion .120 x .68 x 3.09

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 01141000

Pin-Door

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 71102700

Mulch Master Mulcher Accessory

$51.99

$

In Stock, only 2 left!

0

14

Gravely 06530100

Nut-Locking-Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

15

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 01155553

Hinge Base Weldment

$37.99

$

Usually ships in 4-12 days

0

17

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

18

Gravely 06308000

Washer-Locking .25 x .077

$0.99

$

Usually ships in 4-12 days

0

19

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

20

Gravely 01159300

Nut-Wing

$6.99

$

In Stock, only 2 left!

0

21

Gravely 01158853

Drive Cover

$41.99

$

Usually ships in 4-12 days

0

22

Gravely 01155400

Trim Bumper
(Superseded to 01177300)

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 51107100

Mower Pan Head with Decals

$

$

Not available

24

Gravely 06222000

Bolt-Round Head Square Neck .31-18 x .50 Grade 5
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

25

Gravely 01183553

Front Panel

$79.99

$

Usually ships in 4-12 days

0

26

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 039149

Grommet-Plastic
(Superseded to 07507600)

$0.99

$

In Stock, Qty 10

0

28

Gravely 01173700

Baffle-Center

$45.99

$

Usually ships in 4-12 days

0

29

Gravely 07415000

Screw-Tapping 10-16 x .62 Hex Washer Head

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 01180200

Side Discharge Assembly

$35.99

$

Usually ships in 4-12 days

0

31

Gravely 01180351

Side Discharge Cover

$28.99

$

In Stock, only 4 left!

0

32

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0
