911532 (LM 21) - Ariens 21" Push Walk-Behind Mower, 6hp Kawasaki (SN: 000256 & Above)

21" Push Walk-Behind Mower, 6hp Kawasaki

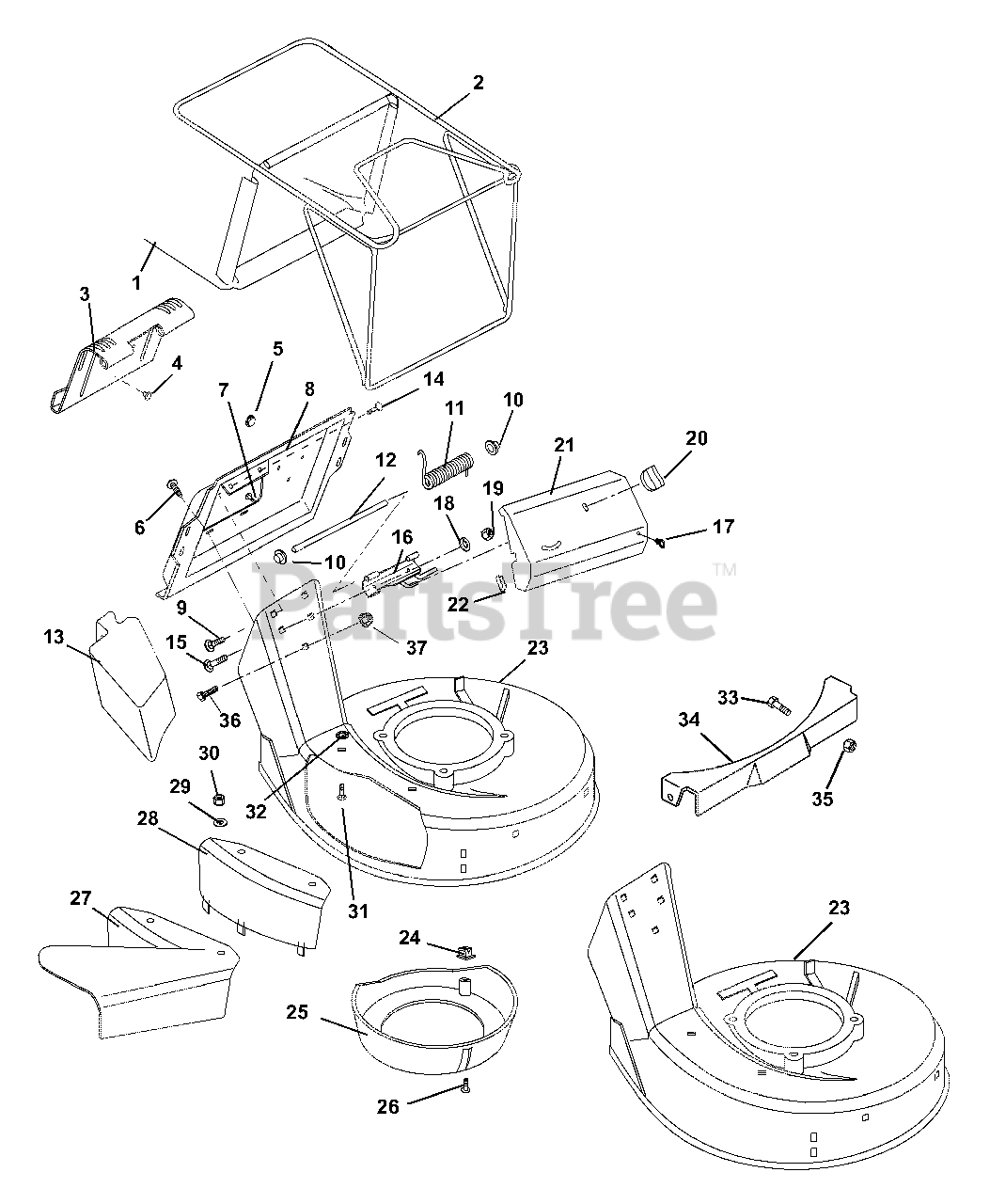

911532 (LM 21) - Ariens 21" Push Walk-Behind Mower, 6hp Kawasaki (SN: 000256 & Above) > Parts Diagrams (6) > Mower Pan And Bag

  • Title
01180500

1

BAG, CONSUMER BLACK 15 OZ/YD2

Part# 01180500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $72.52

01138751

2

FRAME, BAGGER

Part# 01138751 (Superseded to 01241851)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $139.92

01136559

3

CATCHER PLATE DOOR

Part# 01136559

OEM Warranty Repair Part for Ariens

Not available

07516000

4

BUTTON BUMPER

Part# 07516000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07511800

5

BUMPER

Part# 07511800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07411900

6

@SCR-TAP 12-24X.50 HWH TR YWZC

Part# 07411900

Note: (911086, 330, 396, 514, 525, 531, 532, 533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

07414900

7

SCR-TAP 10-24X.375 TORX PHD YZ

Part# 07414900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01159759

8

CATCHER PLATE

Part# 01159759

Note: (911086, 330, 514, 525, 531, 532, 533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.11

01177759

8

PLATE, CATCHER

Part# 01177759

Note: (911102, 396)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

06203900

9

@BLT-RHDSSQNK .25-20X.38 G2YZ

Part# 06203900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02215300

10

PUSH NUT, .25

Part# 02215300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

08322400

11

SG-TORS .120X.68X3.09

Part# 08322400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.76

01141000

12

DOOR PIN

Part# 01141000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

71102700

13

MULCH MASTER MULCHER ACCESSORY

Part# 71102700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.23

06530100

14

@NUT-SPNLK-FLG .25-20 YWZC

Part# 06530100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06219900

15

@BLT-RDHDSQNK .25-20X.75 G5YZ

Part# 06219900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01155559

16

HINGE BASE WELDMENT

Part# 01155559

Note: (911086, 330, 514, 525, 531, 532, 533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.19

01139959

16

HINGE PLATE WELDMENT

Part# 01139959

Note: (911102, 396)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.24

01166500

17

SNAP-IN CLIP

Part# 01166500

Note: (911330, 396, 525, 534)

OEM Warranty Repair Part for Ariens

Not available

06308000

18

WSHR-LK .250X.077 HVY YWZC

Part# 06308000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06533200

19

@NUT-HEX .25-20 YWZC

Part# 06533200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01159300

20

WING - NUT

Part# 01159300

Note: (911102, 330, 396, 514, 525, 531, 533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.81

01158859

21

COVER, DRIVE

Part# 01158859 (Superseded to 01158800)

Note: (911102, 330, 396, 514, 525, 531, 533, 534)

OEM Warranty Repair Part for Ariens

Not available

01155400

22

TRIM BUMPER

Part# 01155400 (Superseded to 01177300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

51107500

23

MOWER PAN HEAD W/SFTYDECALS SP

Part# 51107500

Note: (911330, 396, 514, 525, 531, 533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $423.32

51107100

23

MOWER PAN W/DECALS SP/COM

Part# 51107100

Note: (911102)

OEM Warranty Repair Part for Ariens

Not available

51107600

23

MOWER PAN W/SAFETY DECALS PUSH

Part# 51107600

Note: (911086, 532)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

07507600

24

PLASTIC GROMMET

Part# 07507600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

01173700

25

CENTER BAFFLE

Part# 01173700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.72

07415000

26

SCR-TAP 10-16X.62 SLPH AB YWZC

Part# 07415000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01180200

27

SIDE DISCHARGE ASSEMBLY

Part# 01180200

Note: (911086, 330, 396, 514, 525, 531, 532, 533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

01180351

28

COVER, SIDE DISCHARGE

Part# 01180351

Note: (911086, 330, 396, 514, 525, 531, 532, 533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.16

06436200

29

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

Note: (911086, 330, 396, 514, 525, 531, 532, 533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06530200

30

@NUT-LK-NYL .312-18 YWZC

Part# 06530200

Note: (911086, 330, 396, 514, 525, 531, 532, 533, 534)

OEM Warranty Repair Part for Ariens

Not available

06214100

31

BLT-RDHDSQSHK.31-18X.75 GR2 YW

Part# 06214100

Note: (911086, 330, 396, 514, 525, 531, 532,533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06514900

32

NUT-PUSH .312

Part# 06514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06222000

33

@BLT-RDHDSQNK .31-18X.50 G5YZ

Part# 06222000

Note: (911086, 102, 514, 525, 531, 532, 533)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

01183559

34

PANEL-FRONT

Part# 01183559

Note: (911086, 102, 514, 525, 531, 532, 533)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.99

06529800

35

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

Note: (911086, 330, 396, 514, 525, 531, 532, 533, 534)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06530400

35

@NUT-SPNLK-FLG .312-18 YWZC

Part# 06530400

Note: (911102)

OEM Warranty Repair Part for Ariens

Not available

05967000

36

@BLT-HEX .38-16X.50 GR5 YWZC

Part# 05967000

Note: (911086, 532)

OEM Warranty Repair Part for Ariens

Not available

06534900

37

@NUT-SPNLK-FLG .375-16 YWZC

Part# 06534900

Note: (911086, 532)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40
