911602 - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 7.25hp Briggs & Stratton (SN: 000101 & Above) Mower Deck and Bag Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 7.25hp Briggs & Stratton

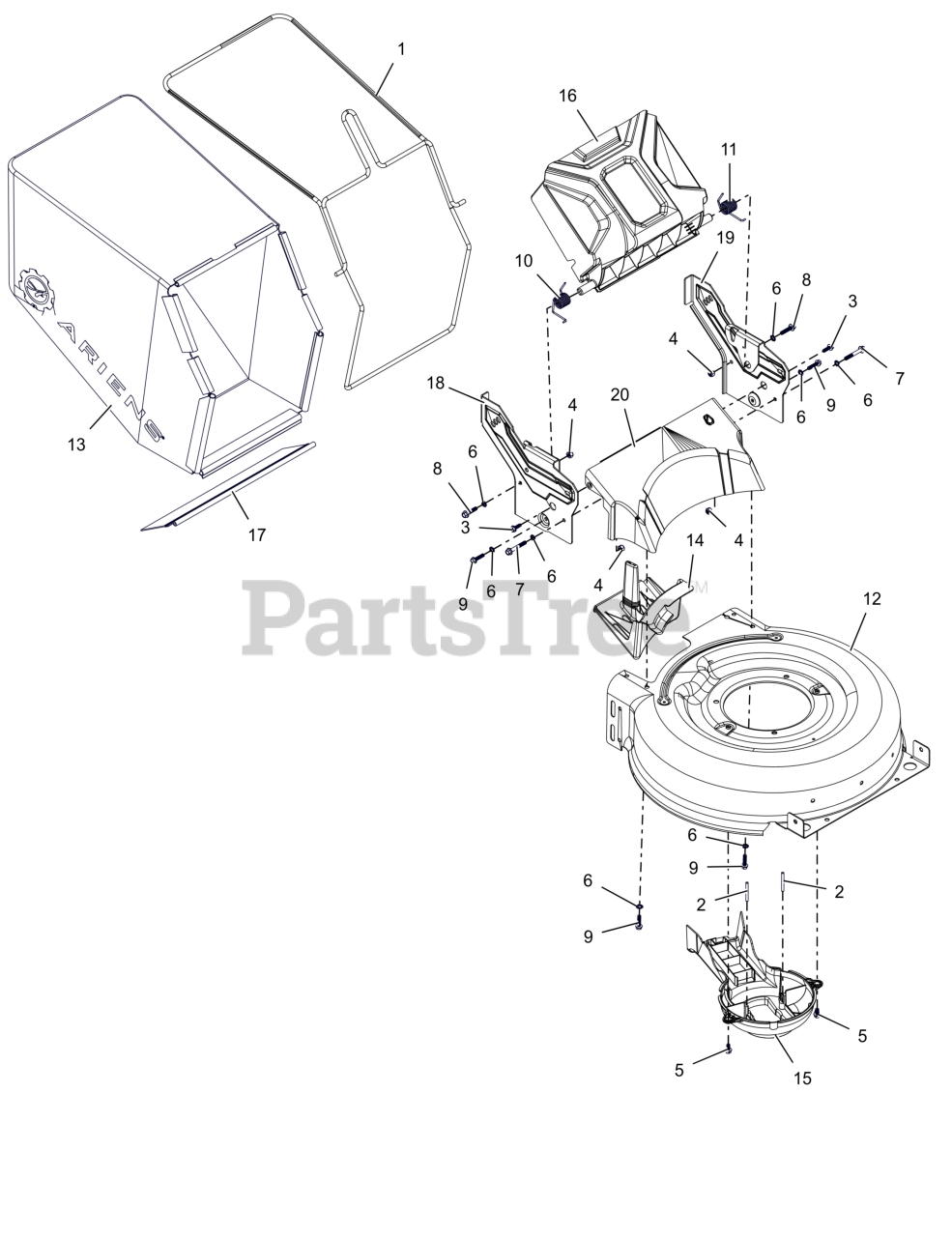

Mower Deck and Bag Parts Diagram

  • Title

1

Ariens 30121759

WLDMT, BAG FRAME (ORANGE)

$68.99

$

Usually ships in 4-12 days

0

2

Ariens 07002138

PIN, .188 X 1.750

$13.99

$

Usually ships in 4-12 days

0

3

Ariens 07002139

SCR, HI-LO HWH 1/4-15 X .750

$5.99

$

Usually ships in 4-12 days

0

4

Ariens 07002202

NUT, NYLOC 1/4-20

$

$

Currently unavailable

5

Ariens 07002206

SCR, 1/4-20X.500, THREAD FORMING

$

$

Currently unavailable

6

Ariens 07002231

WSHR-LK-EXT, .256X.510X.028

$

$

Currently unavailable

7

Ariens 07002232

BLT, HEX 1/4-20 X 1.75 GR5

$

$

Currently unavailable

8

Ariens 07002233

BLT, HEX 1/4-20 X 1.125

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 07002234

SCR, HI-LO HWH 1/4-15 X 1.00

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 08300739

SPRG, TORSION - DOOR LH

$8.49

$

Usually ships in 4-12 days

0

11

Ariens 08300740

SPRG, TORSION - DOOR RH

$8.49

$

Usually ships in 4-12 days

0

12

Ariens 30121159

DECK, RWD -21 (ORANGE)

$258.99

$

Usually ships in 4-12 days

0

13

Ariens 30122000

BAG, ARIENS

$

$

Not available

14

Ariens 30122100

PLUG, MULCH

$28.99

$

Usually ships in 4-12 days

0

15

Ariens 30122200

COVER, RWD PULLEY

$15.99

$

0

16

Ariens 30125200

DOOR, REAR

$

$

Not available

17

Ariens 30125400

GUARD, REAR DECK

$28.99

$

Usually ships in 4-12 days

0

18

Ariens 30127651

BRKT, RH SIDE - RWD (BLACK)

$47.99

$

Usually ships in 4-12 days

0

19

Ariens 30127751

BRKT, LH SIDE - RWD (BLACK)

$48.99

$

Usually ships in 4-12 days

0

20

Ariens 30128000

COVER, BACK - RWD

$

$

Not available
