911605 - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 7.25hp Briggs & Stratton (SN: 000101 & Above) Axles and Transmission Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 7.25hp Briggs & Stratton

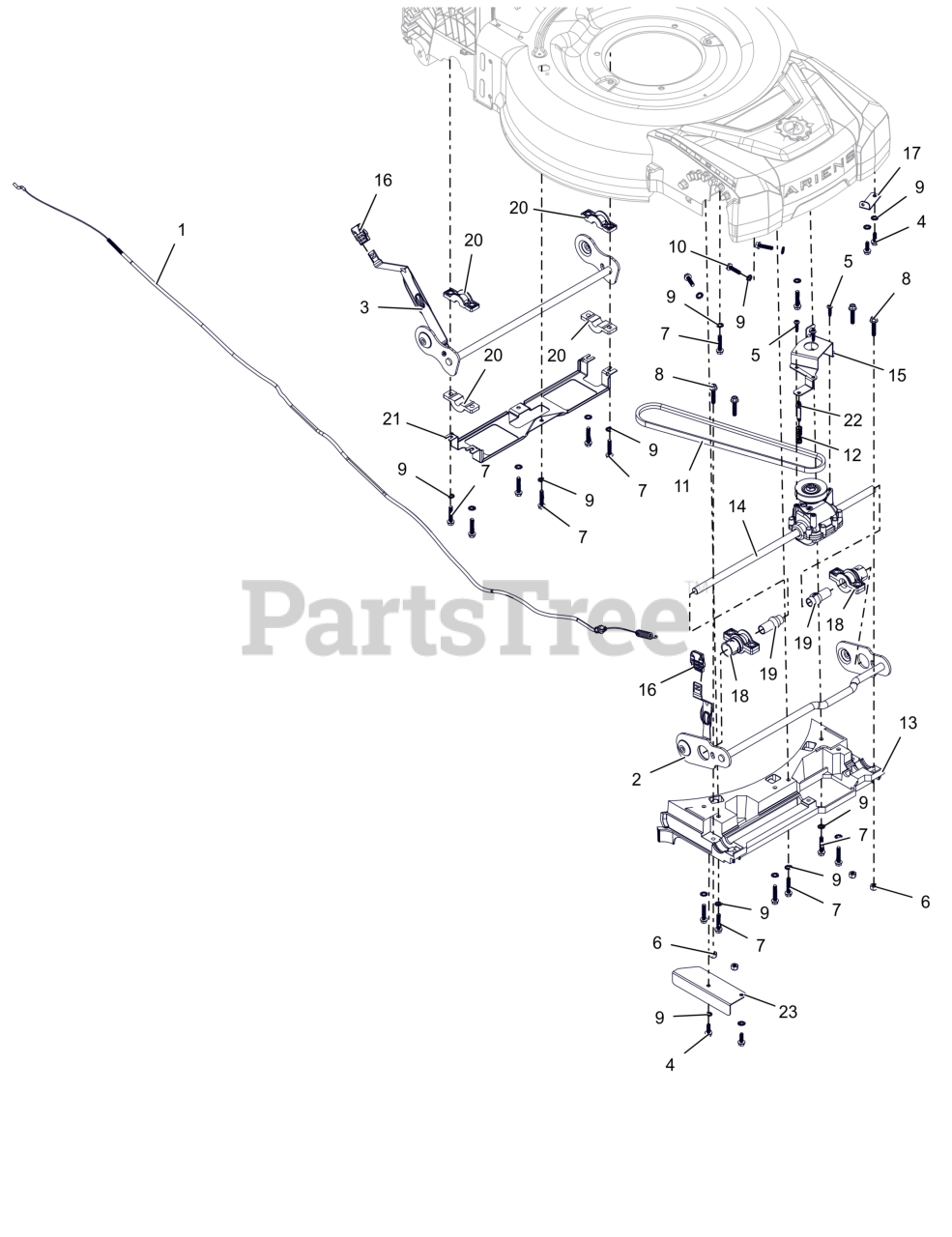

Axles and Transmission Parts Diagram

  • Title

1

Ariens 06900738

CABLE, FWD TRANSMISSION

$45.99

$

Usually ships in 4-12 days

0

2

Ariens 30118951

WLDMT, FRONT AXLE - SP (BLACK)

$84.99

$

Usually ships in 4-12 days

0

3

Ariens 30119251

WLDMT, REAR AXLE - PUSH (BLACK)

$74.99

$

In Stock, only 1 left!

0

4

Ariens 07002139

SCR, HI-LO HWH 1/4-15 X .750

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 07002140

SCR, TORX TRILOB PH 10-14X.75

$10.99

$

Usually ships in 4-12 days

0

6

Ariens 07002202

NUT, NYLOC 1/4-20

$

$

Currently unavailable

7

Ariens 07002210

SCR, HI-LO HWH 1/4-15 X 1.25

$

$

Currently unavailable

8

Ariens 07002212

BLT, HWH 1/4-20 X 1.25

$

$

Currently unavailable

9

Ariens 07002231

WSHR-LK-EXT, .256X.510X.028

$

$

Currently unavailable

10

Ariens 07002234

SCR, HI-LO HWH 1/4-15 X 1.00

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 07200923

BELT, FWD

$39.99

$

Usually ships in 4-12 days

0

12

Ariens 08300736

SPRG, ADJUSTER KNOB

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 30118800

TRAY, FRONT

$34.99

$

Usually ships in 4-12 days

0

14

Ariens 30119800

ASM, FWD TRANSMISSION - MA 300

$129.99

$

Usually ships in 4-12 days

0

15

Ariens 30120300

BRKT, FWD TRANSMISSION

$

$

Currently unavailable

16

Ariens 30123600

GRIP, HOC

$10.99

$

Usually ships in 4-12 days

0

17

Ariens 30126451

PLATE, CABLE ANCHOR (BLACK)

$19.99

$

Usually ships in 4-12 days

0

18

Ariens 30129300

BUSHING, AXLE - OUTER

$12.99

$

Usually ships in 4-12 days

0

19

Ariens 30129400

BUSHING, AXLE - INNER

$8.49

$

Usually ships in 4-12 days

0

20

Ariens 30129500

BUSHING, SHAFT - HOC

$13.99

$

Usually ships in 4-12 days

0

21

Ariens 30130351

BRKT, BACK SUPPORT (BLACK)
(Superseded to 30183351)

$22.99

$

Usually ships in 4-12 days

0

22

Ariens 30130400

HOLDER, RETURN SPRING

$6.99

$

Usually ships in 4-12 days

0

23

Ariens 30154351

FLANGE, BLOW OUT (BLACK)

$19.99

$

Usually ships in 4-12 days

0
