911609 - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 7.25hp Briggs & Stratton (SN: 025000 & Above) Handlebar and Operator Presence Cable Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 7.25hp Briggs & Stratton

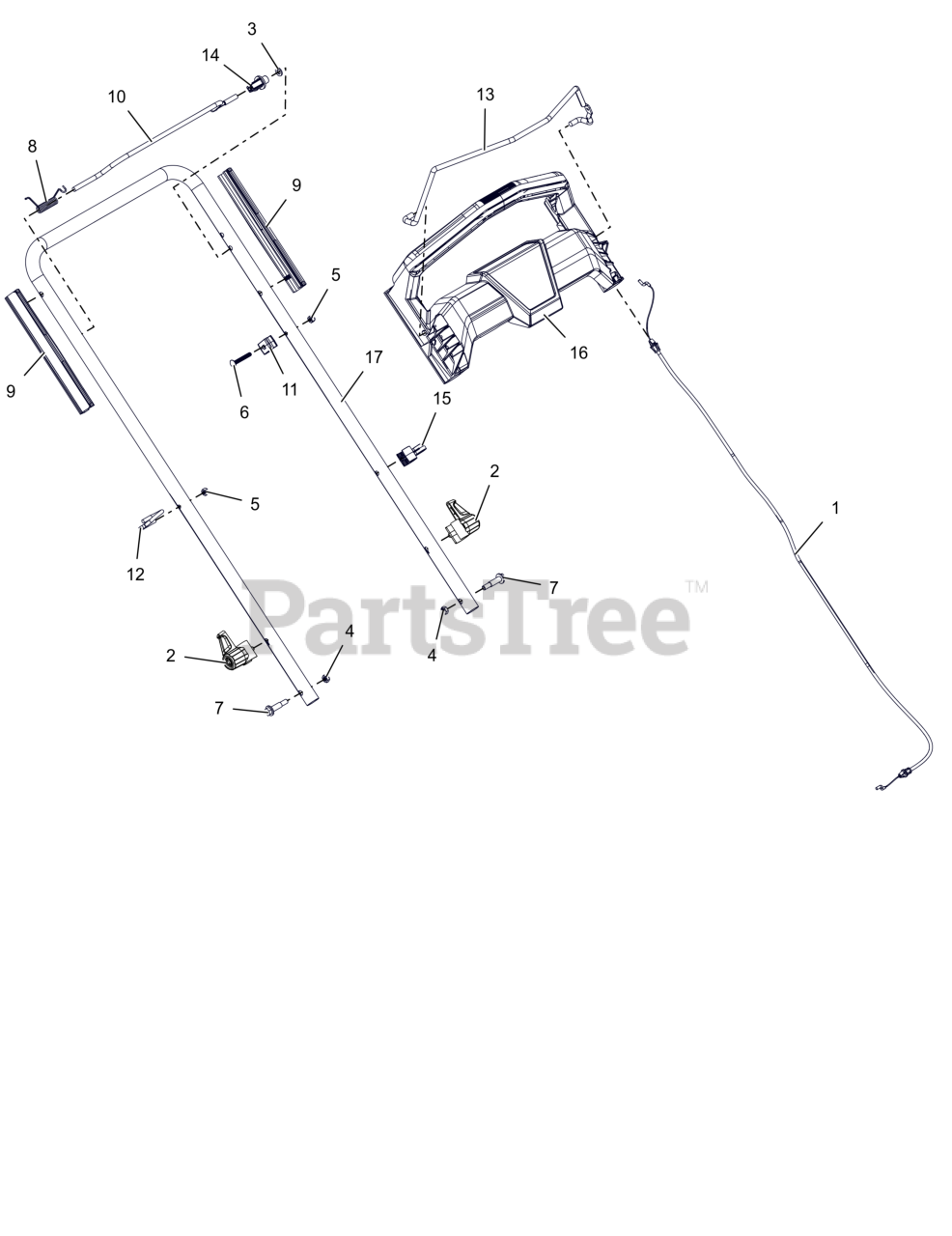

Handlebar and Operator Presence Cable Parts Diagram

  • Title

1

Ariens 06900740

CABLE, RWD OP

$52.99

$

Usually ships in 4-12 days

0

2

Ariens 51123500

ASM, HANDLE ADJUSTER

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 07002137

WSHR-FL-STL, .328 X .625 X .051

$3.99

$

In Stock, Qty 20+

0

4

Ariens 07002201

NUT, NYLOC 5/16-18

$

$

Currently unavailable

5

Ariens 07002202

NUT, NYLOC 1/4-20

$

$

Currently unavailable

6

Ariens 07002239

BOLT, CARRIAGE 1/4-20X1.75

$

$

Currently unavailable

7

Ariens 07002211

BLT, SHLDR HWH .65X1.015X 5/16-18

$9.49

$

Usually ships in 4-12 days

0

8

Ariens 08300738

SPRG, TORSION - REFLEX

$12.99

$

In Stock, Qty 7

0

9

Ariens 30121500

GUIDE, HANDLE - REFLEX

$13.99

$

Usually ships in 4-12 days

0

10

Ariens 30207300

BAIL, REFLEX

$18.99

$

Usually ships in 0 days

0

11

Ariens 30158800

CLAMP, CABLE - TRANSMISSION

$10.99

$

Usually ships in 4-12 days

0

12

Ariens 30124551

GUIDE, STARTER ROPE (BLACK)

$

$

Currently unavailable

13

Ariens 30124749

BAIL, OPC - REFLEX (GRAY)

$43.99

$

Usually ships in 4-12 days

0

14

Ariens 30125000

CAM, REFLEX

$10.99

$

In Stock, Qty 9

0

15

Ariens 30130500

GUIDE, CABLE

$8.49

$

Usually ships in 4-12 days

0

16

Ariens 30130600

COVER, HANDLEBAR - REFLEX

$87.99

$

Usually ships in 4-12 days

0

17

Ariens 30130951

HANDLEBAR, REFLEX (BLACK)

$107.99

$

Usually ships in 4-12 days

0
