911614 - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton (SN: 000101 - 007499) Axles and Transmission Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton

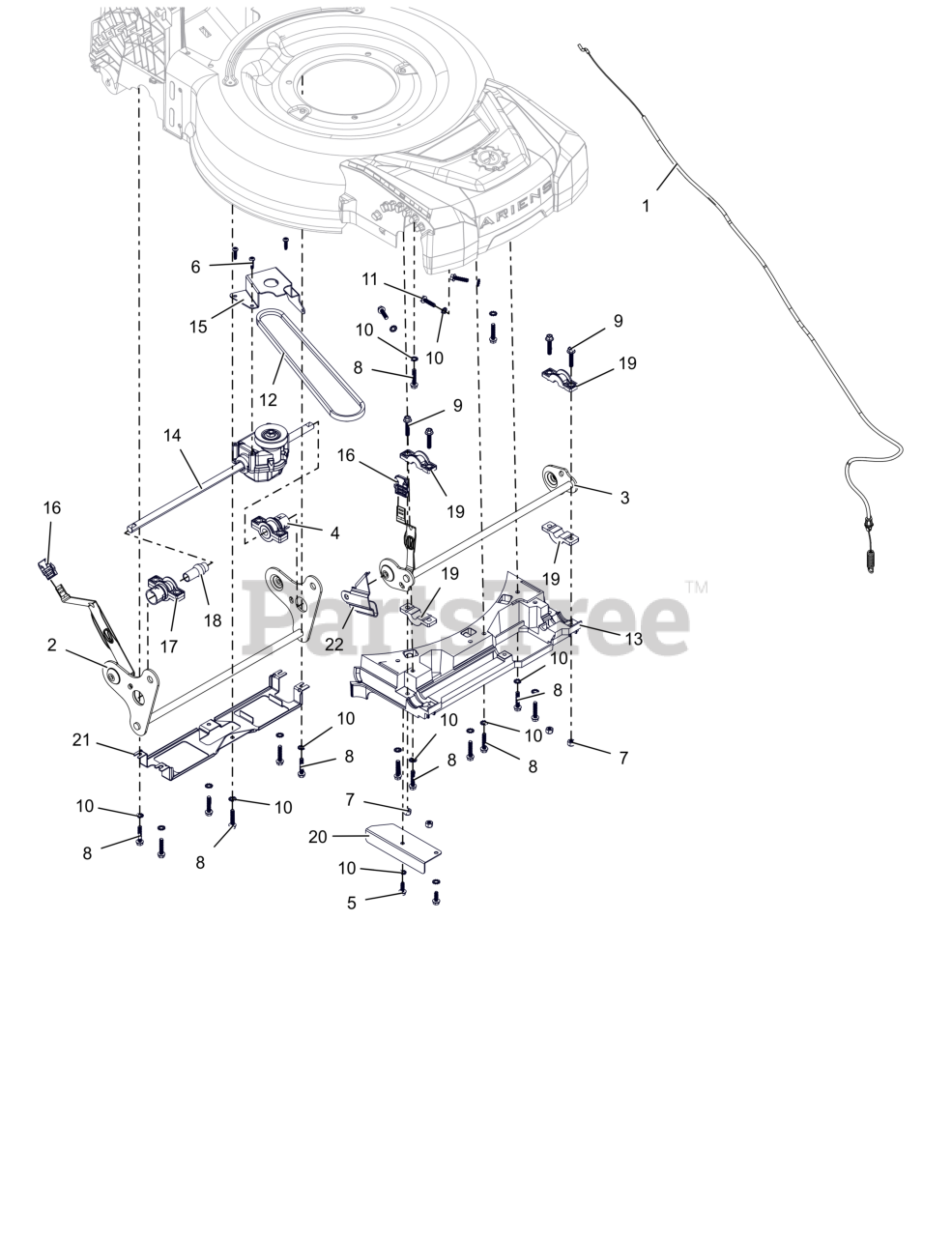

Axles and Transmission Parts Diagram

  • Title

1

Ariens 06900739

CABLE, RWD TRANSMISSION

$52.99

$

In Stock, only 1 left!

0

2

Ariens 30119051

WLDMT, REAR AXLE - RWD (BLACK)

$118.99

$

Usually ships in 4-12 days

0

3

Ariens 30123751

WLDMT, FRONT AXLE - PUSH (BLACK)

$

$

Not available

4

Ariens 51123900

ASM, BSHG - BRONZE

$35.99

$

Usually ships in 0 days

0

5

Ariens 07002139

SCR, HI-LO HWH 1/4-15 X .750

$6.49

$

Usually ships in 4-12 days

0

6

Ariens 07002140

SCR, TORX TRILOB PH 10-14X.75

$10.99

$

Usually ships in 4-12 days

0

7

Ariens 07002202

NUT, NYLOC 1/4-20

$

$

Currently unavailable

8

Ariens 07002210

SCR, HI-LO HWH 1/4-15 X 1.25

$

$

Currently unavailable

9

Ariens 07002212

BLT, HWH 1/4-20 X 1.25

$

$

Currently unavailable

10

Ariens 07002231

WSHR-LK-EXT, .256X.510X.028

$

$

Currently unavailable

11

Ariens 07002234

SCR, HI-LO HWH 1/4-15 X 1.00

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 07200924

BELT, RWD

$

$

Not available

13

Ariens 30118800

TRAY, FRONT

$35.99

$

Usually ships in 4-12 days

0

14

Ariens 30119400

ASM, RWD TRANSMISSION - MA 302

$134.99

$

Usually ships in 4-12 days

0

15

Ariens 30123151

BRKT, RWD TRANSMISSION (BLACK)

$

$

Not available

16

Ariens 30123600

GRIP, HOC

$10.99

$

In Stock, only 3 left!

0

17

Ariens 30129300

BUSHING, AXLE - OUTER

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 30129400

BUSHING, AXLE - INNER

$10.99

$

Usually ships in 4-12 days

0

19

Ariens 30129500

BUSHING, SHAFT - HOC

$17.99

$

Usually ships in 4-12 days

0

20

Ariens 30154351

FLANGE, BLOW OUT (BLACK)

$20.99

$

Usually ships in 4-12 days

0

21

Ariens 30183351

BRKT, RWD BACK SUPPORT (BLACK)

$23.99

$

Usually ships in 4-12 days

0

22

Ariens 30197351

BRKT, ARM SUPPORT (BLACK)

$18.99

$

Usually ships in 4-12 days

0
