911614 - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton (SN: 007500 & Above) Engine and Blade Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton

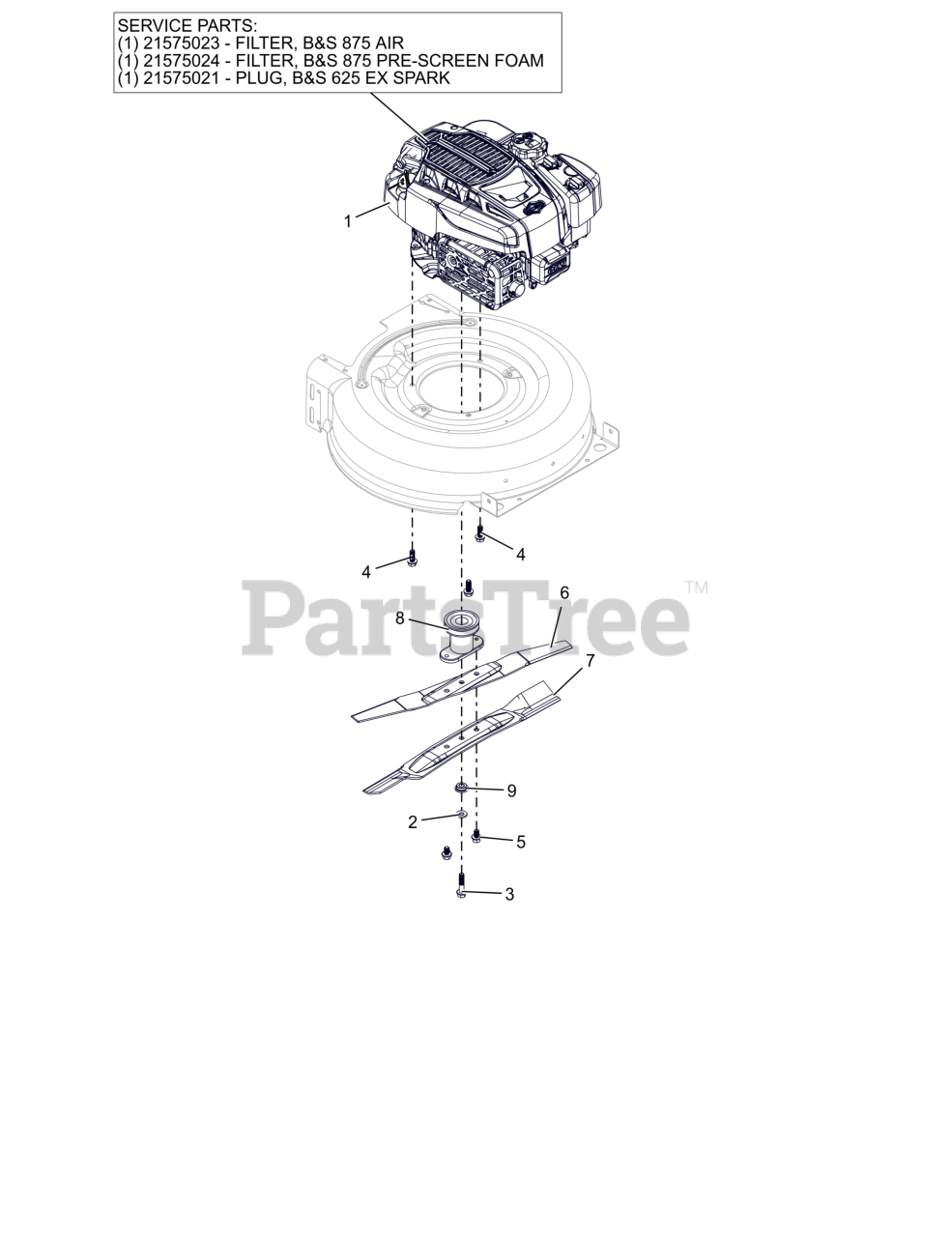

Engine and Blade Parts Diagram

  • Title

1

Ariens 08201432

ENGINE, BRIGGS 875 EXI MNS

$

$

Currently unavailable

1

Ariens 21575023

FILTER- B&S 875 AIR

Note: Component Service Part

$18.99

$

Usually ships in 4-12 days

0

1

Ariens 21575024

FILTER-B&S 875 PRE-SCREEN FOAM

Note: Component Service Part

$29.99

$

Usually ships in 4-12 days

0

1

Ariens 21575021

PLUG- B&S 625 EX SPARK

Note: Component Service Part

$9.49

$

In Stock, only 1 left!

0

2

Ariens 06401302

WSHR, BLVL-.38X.875X.115

$6.49

$

Usually ships in 0 days

0

3

Ariens 07002203

SCR, HEX FLANGE 3/8-24X1.75

$6.99

$

In Stock, only 2 left!

0

4

Ariens 07002204

SCR-TAP, 3/8-16X1.00 HWH

$

$

Currently unavailable

5

Ariens 07002205

SCR, 3/8-16 x 5/8, HEX-FLG

$6.49

$

Usually ships in 4-12 days

0

6

Ariens 09682300

BLADE- DUAL UPPER - 21"

$25.99

$

Usually ships in 4-12 days

0

7

Ariens 09682400

BLADE, DUAL LOWER - 21

$

$

Not available

8

Ariens 09683900

SPCR, BLADE - DUAL

$44.99

$

Usually ships in 4-12 days

0

9

Ariens 30196800

SPCR, DUAL BLADE BOLT

$9.99

$

Usually ships in 0 days

0
