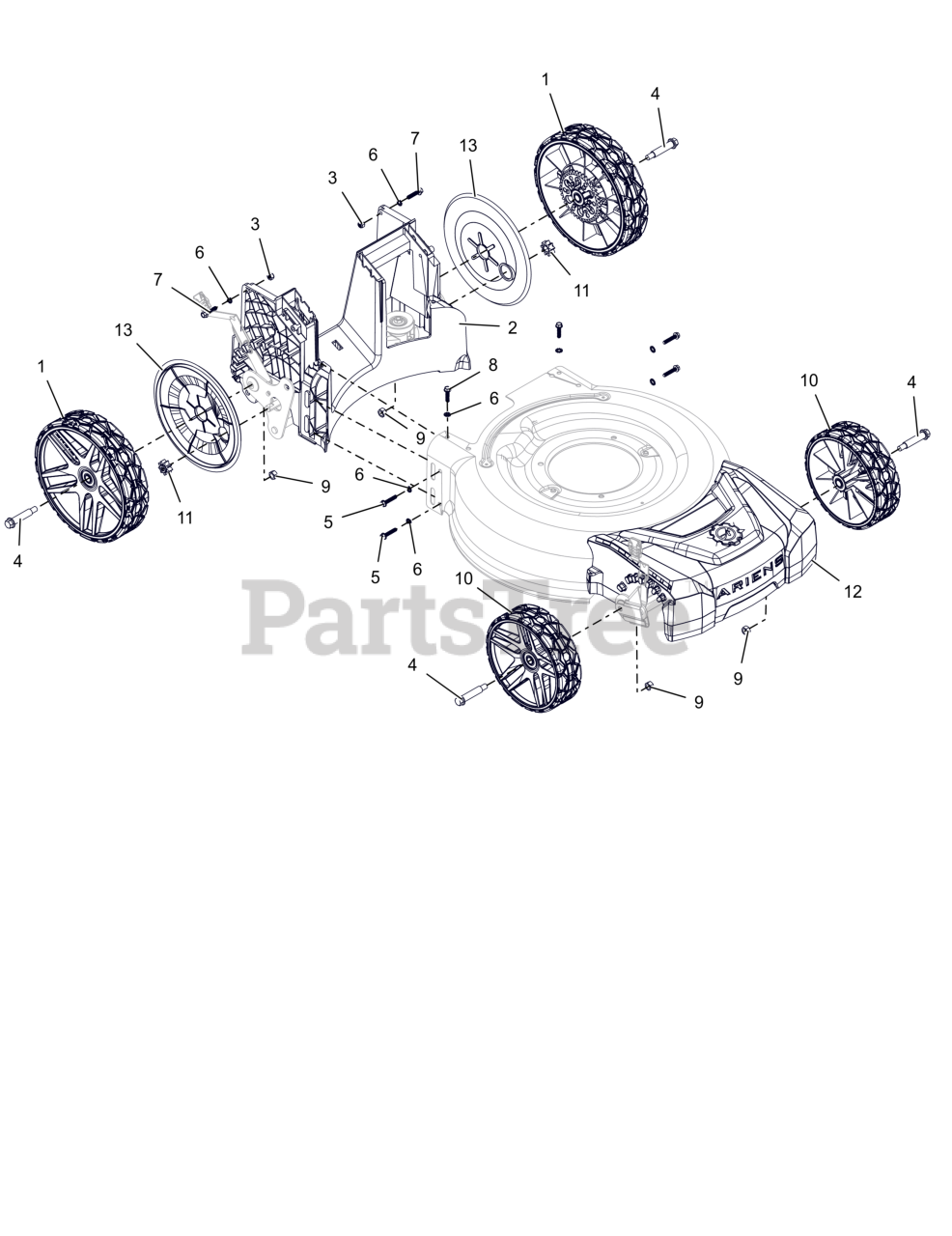

911614 - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton (SN: 007500 & Above) Wheels, Front Cover and Baffle Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton

Wheels, Front Cover and Baffle Parts Diagram

  • Title

1

Ariens 51123300

ASM, WHEEL WITH GEAR - 10"

$35.99

$

Usually ships in 4-12 days

0

2

Ariens 30127300

BAFFLE, RWD

$134.99

$

Usually ships in 4-12 days

0

3

Ariens 07002202

NUT, NYLOC 1/4-20

$

$

Currently unavailable

4

Ariens 07002209

BLT, SHLDR HWH .325X1.981X 3/8-16

$10.99

$

In Stock, only 2 left!

0

5

Ariens 07002210

SCR, HI-LO HWH 1/4-15 X 1.25

$

$

Currently unavailable

6

Ariens 07002231

WSHR-LK-EXT, .256X.510X.028

$

$

Currently unavailable

7

Ariens 07002233

BLT, HEX 1/4-20 X 1.125

$6.99

$

Usually ships in 4-12 days

0

8

Ariens 07002234

SCR, HI-LO HWH 1/4-15 X 1.00

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 07002334

NUT-JAM .375-16 HIGH STRENGTH

$5.49

$

Usually ships in 4-12 days

0

10

Ariens 07101604

WHEEL, 8" - WITH BEARING

$30.99

$

Usually ships in 4-12 days

0

11

Ariens 30119100

GEAR, RWD SPUR

$12.99

$

In Stock, only 2 left!

0

12

Ariens 30124900

COVER, FRONT

$85.99

$

Usually ships in 4-12 days

0

13

Ariens 30129600

COVER, DUST - 10"

$35.99

$

Usually ships in 4-12 days

0
