911700 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, Briggs & Stratton, CARB (SN: 000101 & Above) Belt Cover And Chute Parts Diagram

24" Walk-Behind High-Wheel Mower, Briggs & Stratton, CARB

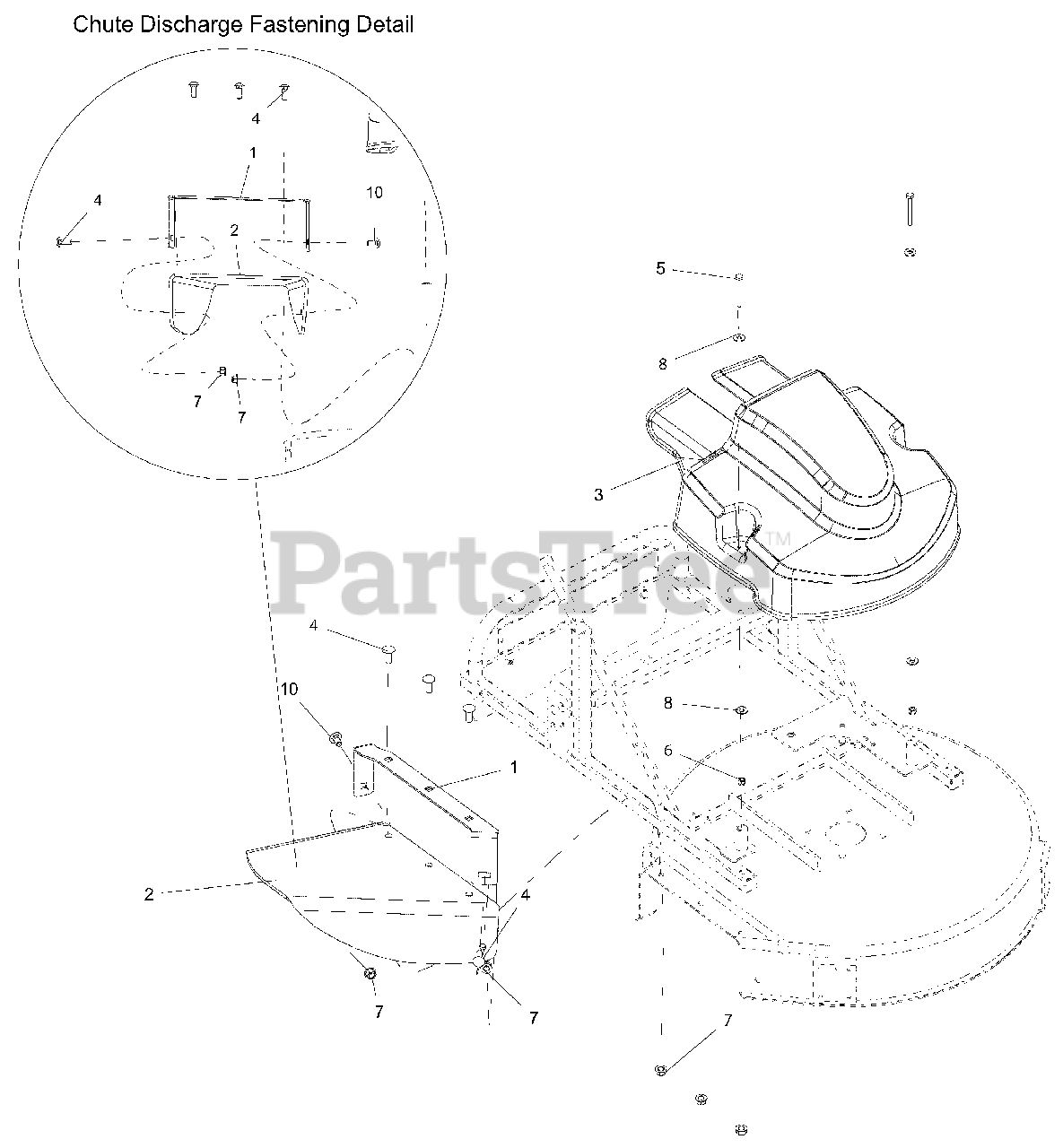

Belt Cover And Chute Parts Diagram

  • Title

1

Gravely 04169951

BRKT, DISCHARGE CHUTE, HWM (BLACK)

Note: (BLACK)

$54.99

$

Usually ships in 4-12 days

0

2

Gravely 04187300

CHUTE, RUBBER DISCHARGE

$35.99

$

In Stock, only 1 left!

0

3

Gravely 04190900

COVER, PLASTIC BELT-HIGH WHEEL

$

$

Not available

4

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

5

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

7

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5 YWZC
(Superseded to 06200312)

$1.99

$

In Stock, Qty 5

0
