911700 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, Briggs & Stratton, CARB (SN: 000101 & Above) Deck Parts Diagram

24" Walk-Behind High-Wheel Mower, Briggs & Stratton, CARB

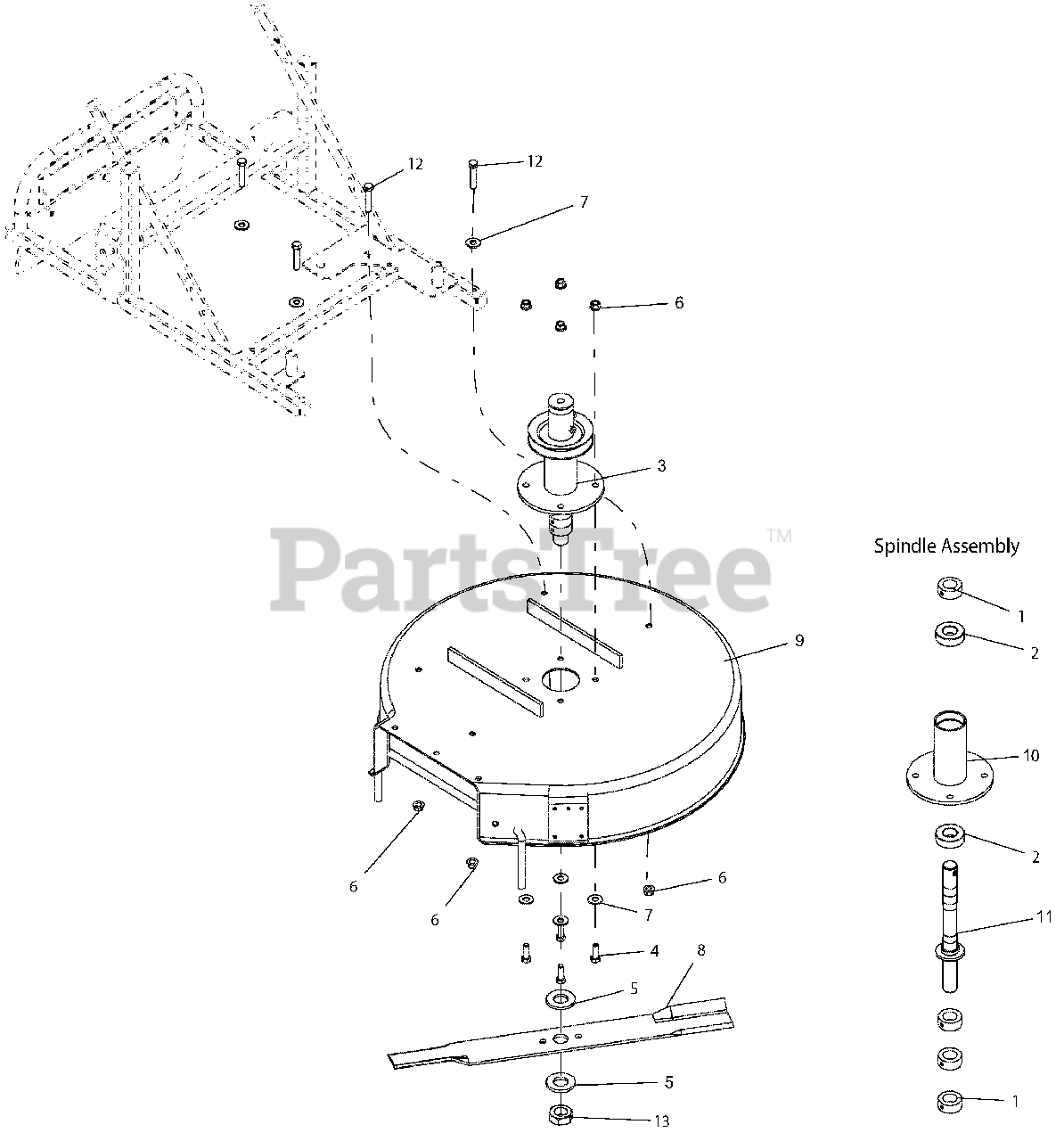

Deck Parts Diagram

  • Title

1

Gravely 02550900

LOCKING COLLAR 1IN

$18.99

$

Usually ships in 4-12 days

0

2

Gravely 05400407

BEARING 1.00 ID X 2

$37.99

$

Usually ships in 4-12 days

0

3

Gravely 61175400

SPINDLE ASSY, HWM
(Superseded to 51115600)

$290.99

$

Usually ships in 4-12 days

0

4

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06400524

1"USS WASHER HARD NO PLA

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 04159600

BLADE, KC-24"

$58.99

$

Usually ships in 4-12 days

0

9

Gravely 04161453

WMT-DECK, 24" HW MOWER (RED)

Note: (RED)

$369.99

$

Usually ships in 4-12 days

0

10

Gravely 04162251

WMT-SPINDLE, HW MOWER (BLACK)

Note: (BLACK)

$123.99

$

Usually ships in 4-12 days

0

11

Gravely 04163001

SHAFT, SPINDLE , HWM

$144.99

$

Usually ships in 4-12 days

0

12

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

13

Gravely 02117200

JAM NUT 1-14 NF

$3.99

$

Usually ships in 4-12 days

0
