911701 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, Briggs & Stratton (SN: 000101 & Above) Brake Parts Diagram

24" Walk-Behind High-Wheel Mower, Briggs & Stratton

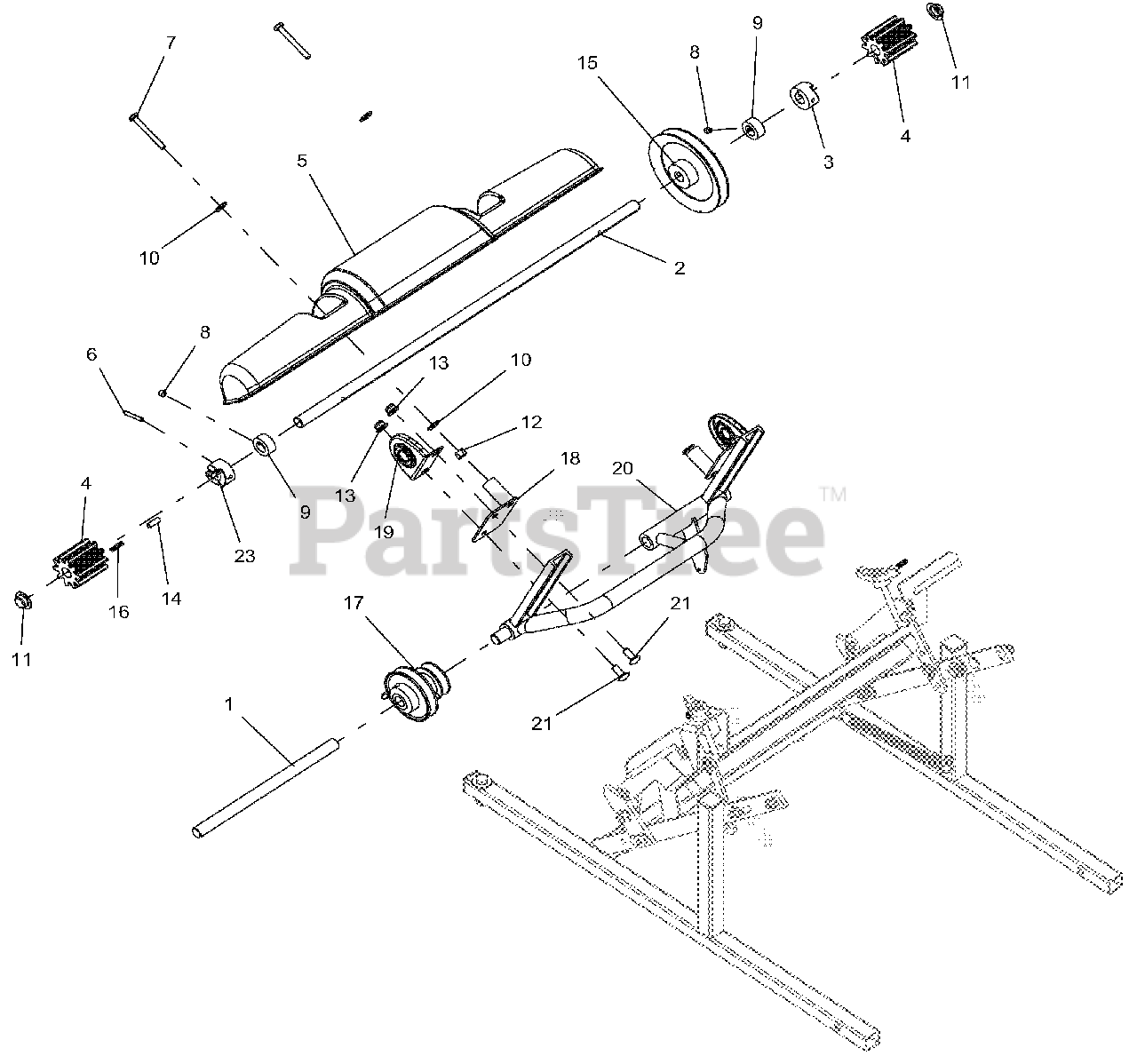

Brake Parts Diagram

  • Title

1

Gravely 04160100

SHAFT, PIVOT, LONG 12351K

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 04162000

SHAFT, WHEEL DRIVE 19125K

$58.99

$

Usually ships in 4-12 days

0

3

Gravely 04165700

CLUTCH, RIGHT SP -12333K

$24.99

$

Usually ships in 4-12 days

0

4

Gravely 04189900

GEAR, DRIVE (SP) 219943K

Note: (SP)

$124.99

$

Usually ships in 4-12 days

0

5

Gravely 04191000

COVER, PLASTIC-SP (HIGH WHEEL)

Note: (HIGH WHEEL)

$92.99

$

Usually ships in 4-12 days

0

6

Gravely 05800300

PIN-ROLL .188X1.25

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 06000219

SET SCREW 5/16-18 X 5/16 CP

$

$

Not available

9

Gravely 06400909

SET COLLAR .625ID X .50

$

$

Not available

10

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06500640

NUT-PUSH .625 DIA. PAL

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.99

$

In Stock, Qty 12

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06700208

DOWEL PIN 1/4 X 3/4

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 07333900

PULLEY 5"OD X 5/8"ID

$55.99

$

Usually ships in 4-12 days

0

16

Gravely 08300520

SPRING, DRIVE ROLLER SP

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 07334800

WMT,DBL SP IVP PULLEY 17344K

$82.99

$

Usually ships in 4-12 days

0

18

Gravely 04224451

WMT, SP BELT COVER MOUNTING

Note: (BLACK)

$56.99

$

Usually ships in 4-12 days

0

19

Gravely 04297100

BEARING ASSY, SP TOPSHAFT, HWM

$

$

Not available

20

Gravely 04156951

WMT-SELF PROPEL FRAME 19038K

Note: (BLACK)

$

$

Not available

21

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 04165800

CLUTCH, LEFT SP -12334K

$24.99

$

Usually ships in 4-12 days

0
