911702 (PRO-26) - Gravely 26" Walk-Behind High-Wheel Mower (SN: 000101 & Above) Brake Group Parts Diagram

26" Walk-Behind High-Wheel Mower

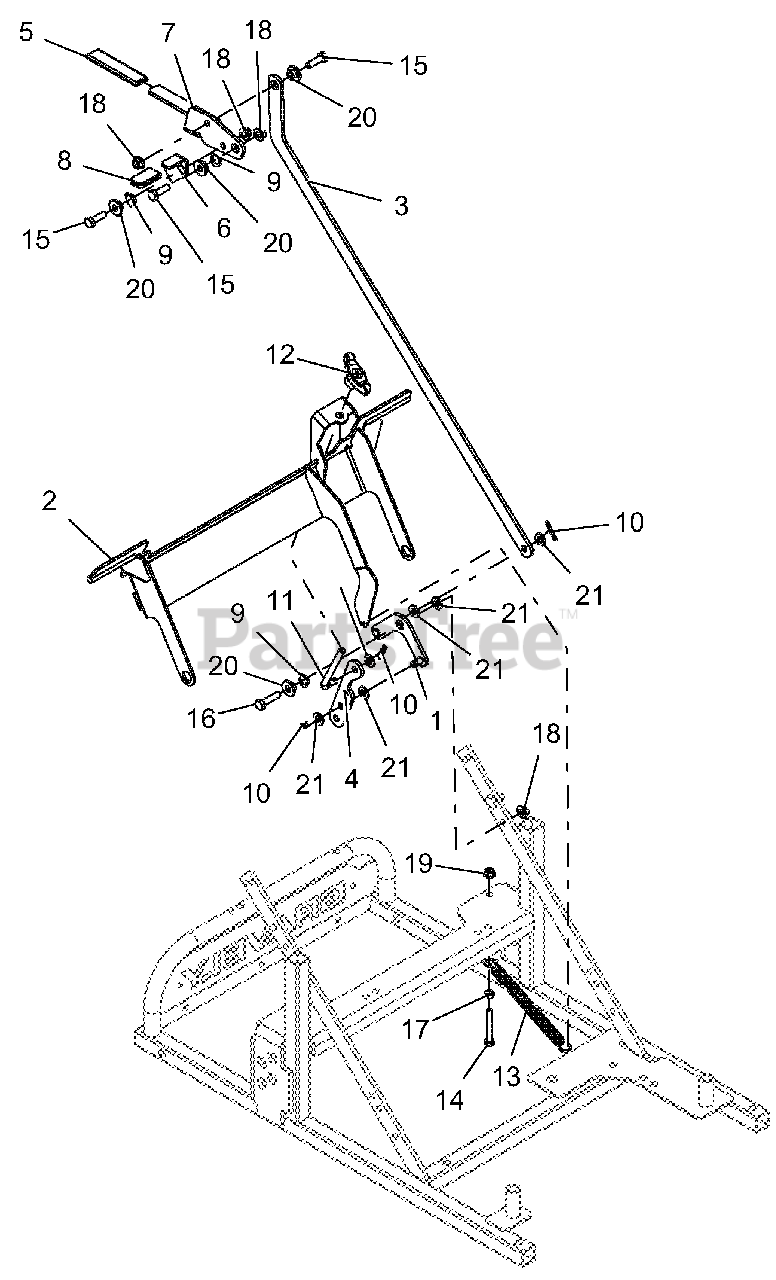

Brake Group Parts Diagram

  • Title

1

Gravely 04313951

WLDMT, BELL CRANK, HWM BRAKE (BLACK)

Note: (BLACK)

$27.99

$

Usually ships in 4-12 days

0

2

Gravely 04317651

WLDMT, HWM BRAKE FRAME (BLACK)

Note: (BLACK)

$101.99

$

Usually ships in 4-12 days

0

3

Gravely 04163151

BAR, ENGAGEMENT LEVER CONN. (BLACK)

Note: (BLACK)

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 04164351

BRKT, ENGAGE, ADJ (BLACK)

Note: (BLACK)

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 04166700

GRIP, MZR/MOMENT SP 7/8X3/4X4

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 04312951

LOCK, HWM PARK BRAKE (BLACK)

Note: (BLACK)

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 04313051

LEVER, SP ENGAGEMENT (BLACK)

Note: (BLACK)

$38.99

$

Usually ships in 4-12 days

0

8

Gravely 04928700

GRIP, THUMB LATCH

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06400005

WSHR, WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 7

0

10

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

11

Gravely 07030001

THDED ROD .31-18X3.0THD YZ

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 07500105

KNOB, WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 8

0

13

Gravely 08300512

SPRG, EXTENSION

$17.99

$

In Stock, Qty 20+

0

14

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

16

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

17

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

18

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

20

Gravely 05514800

BSHG, FLG .32X.500.344X.880

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
