911702 (PRO-26) - Gravely 26" Walk-Behind High-Wheel Mower (SN: 000101 & Above) Engine And Frame Parts Diagram

26" Walk-Behind High-Wheel Mower

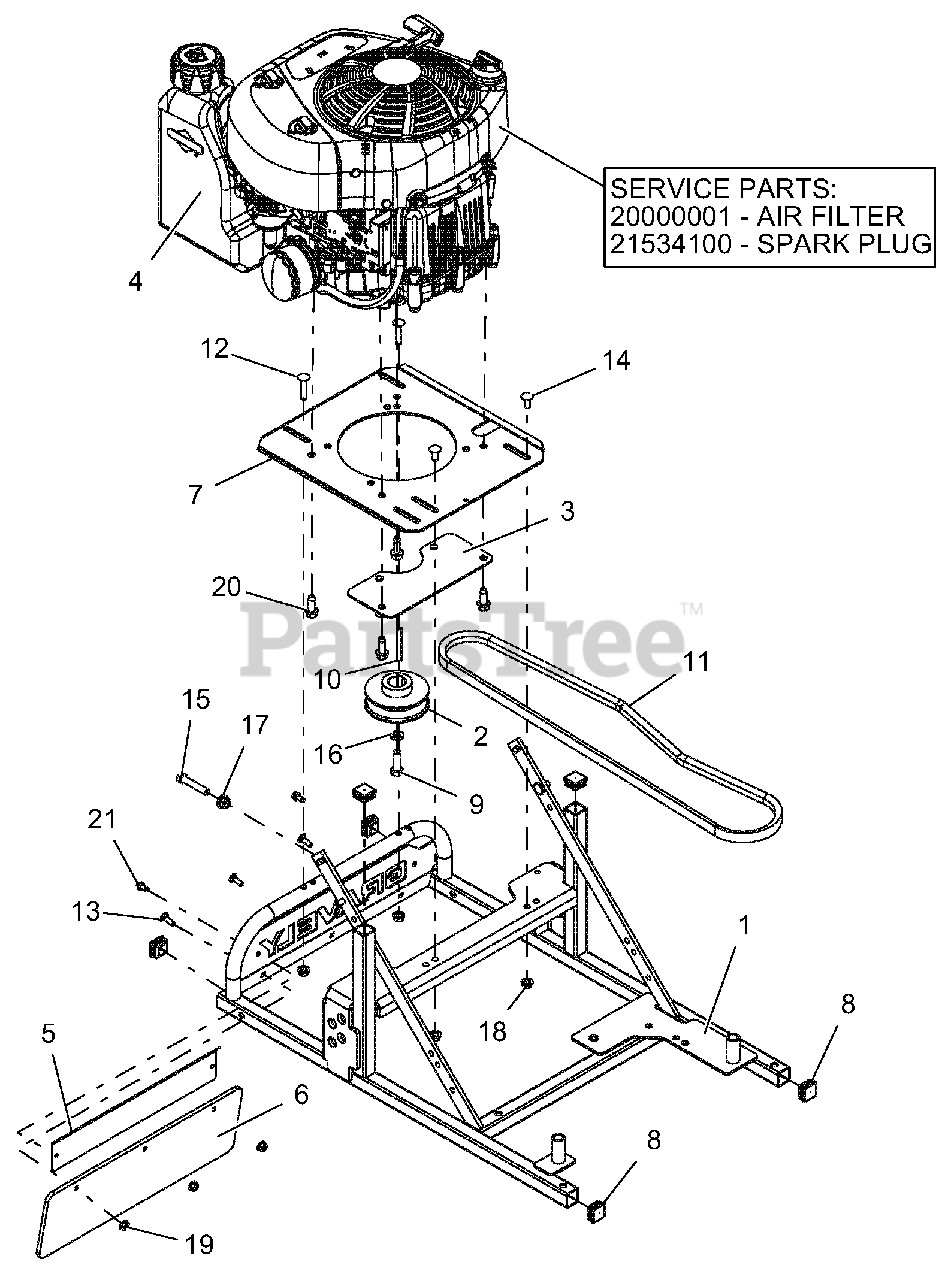

Engine And Frame Parts Diagram

  • Title

1

Gravely 04158653

WLDMT, HIGH WHL MWR FRAME

$681.99

$

Usually ships in 4-12 days

0

2

Gravely 04297600

WMT-SHEAVE, ENGINE HWM INTEK

$110.99

$

Usually ships in 4-12 days

0

3

Gravely 04313851

WLDMT, HWM ENGINE BELT FINGER (BLACK)

Note: (BLACK)

$27.99

$

Usually ships in 4-12 days

0

4

Gravely 08201010

ENGINE, BRIGGS -10.5HP INTEK CARB

$

$

Not available

5

Gravely 04158051

BACKER, GRAVELY

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 04158100

GUARD, RUBBER DEBRIS

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 04164153

PLATE, ENGINE (RED)

Note: (RED)

$41.99

$

Usually ships in 4-12 days

0

8

Gravely 04166200

CAP PLUG FOR 1" TUBE 14GA

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05964800

BLT, HEX .44-20X1.25 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06610300

KEY, .25X.25X2.25

$2.99

$

In Stock, Qty 12

0

11

Gravely 07200605

V-BELT, 5L-WRAPPED

$63.99

$

Usually ships in 4-12 days

0

12

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

13

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

15

Gravely 05942200

BLT-HEX .38-16X2.00 FTH GR5 YWZC

$2.99

$

In Stock, only 1 left!

0

16

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

17

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

20

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 20000001

AIR FILTER

$

$

Not available

23

Gravely 21534100

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0
