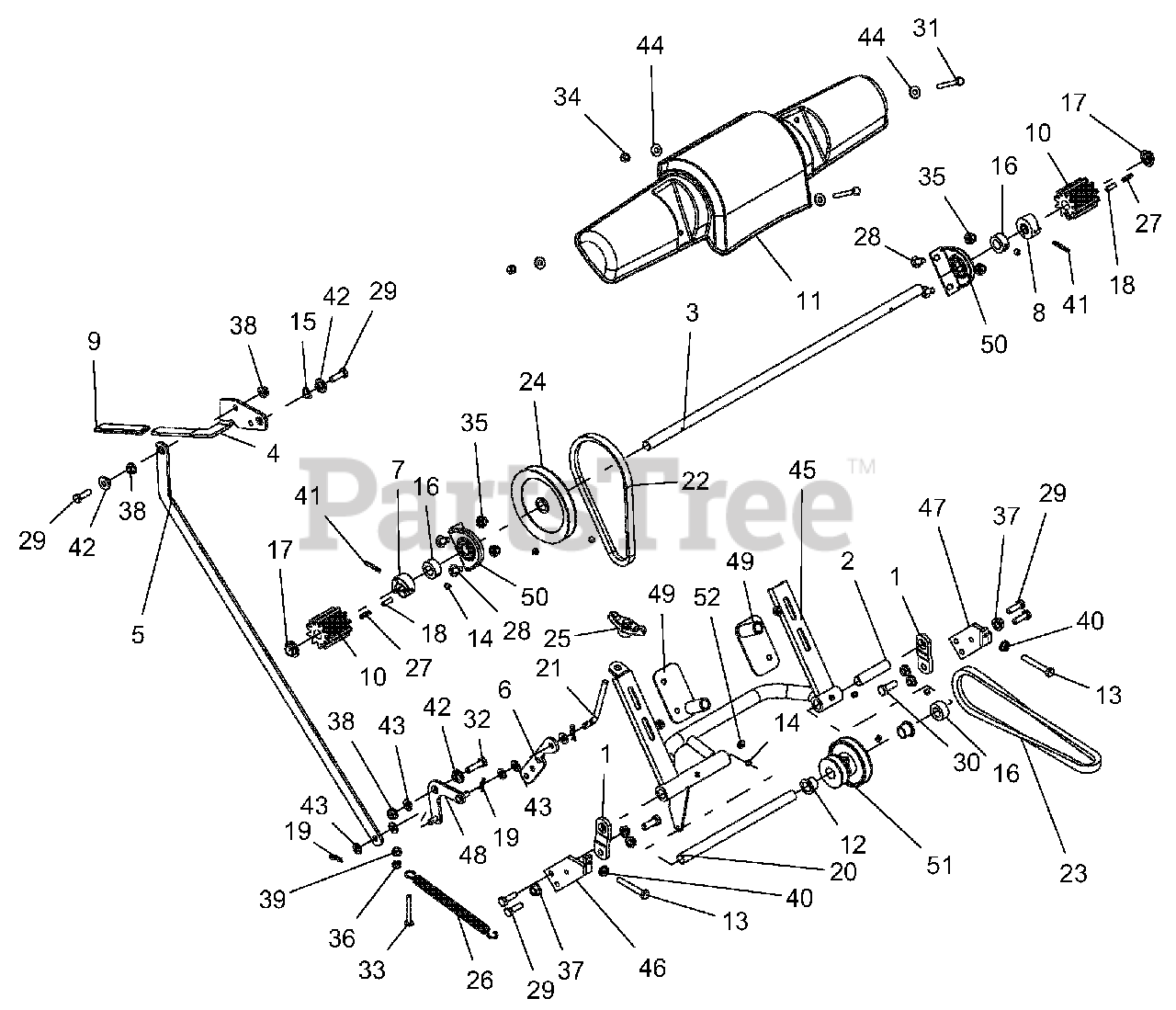

911702 (PRO-26) - Gravely 26" Walk-Behind High-Wheel Mower (SN: 000101 & Above) Self-Propelled Parts Diagram

26" Walk-Behind High-Wheel Mower

Self-Propelled Parts Diagram

  • Title

1

Gravely 04160051

BRKT, SP FRAME PIVOT 12331K

Note: (BLACK)

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 04160200

SHAFT, PIVOT, SHORT 12352K

$

$

Not available

3

Gravely 04162000

SHAFT, WHEEL DRIVE 19125K

$58.99

$

Usually ships in 4-12 days

0

4

Gravely 04162351

LEVER, SP ENGAGEMENT

Note: (BLACK)

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 04163151

BAR, ENGAGEMENT LEVER CONN.

Note: (BLACK)

$43.99

$

Usually ships in 4-12 days

0

6

Gravely 04164351

BRKT, ENGAGE, ADJ. 20100K

Note: (BLACK)

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 04165700

CLUTCH, RIGHT SP -12333K

$24.99

$

Usually ships in 4-12 days

0

8

Gravely 04165800

CLUTCH, LEFT SP -12334K

$24.99

$

Usually ships in 4-12 days

0

9

Gravely 04166700

GRIP MZR/MOMENT SP 7/8X3/4X4

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 04189900

GEAR, DRIVE (SP) 219943K

Note: (SP)

$124.99

$

Usually ships in 4-12 days

0

11

Gravely 04191000

COVER, PLASTIC-SP (HIGH WHEEL)

Note: (HIGH WHEEL)

$92.99

$

Usually ships in 4-12 days

0

12

Gravely 05501009

BUSHING,FLANGED .75X.625X.62

$

$

Not available

13

Gravely 05901429

HHCS 5/16-18 X 2-1/4 FULL THD

$

$

Not available

14

Gravely 06000219

SET SCREW 5/16-18 X 5/16 CP

$

$

Not available

15

Gravely 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$3.49

$

In Stock, Qty 6

0

16

Gravely 06400909

SET COLLAR .625ID X .50

$

$

Not available

17

Gravely 06500640

NUT-PUSH .625 DIA. PAL

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 06700208

DOWEL PIN 1/4 X 3/4

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 04160100

SHAFT, PIVOT, LONG 12351K

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 07030001

THDED ROD.31-18X3.0THD YZ

$21.99

$

Usually ships in 4-12 days

0

22

Gravely 07200538

V-BELT, 4L-RAW EDGE

$26.99

$

Usually ships in 4-12 days

0

23

Gravely 07206000

V-BELT, 4L-RAW EDGE

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 07333900

PULLEY 5"OD X 5/8"ID

$55.99

$

Usually ships in 4-12 days

0

25

Gravely 07500105

KNOB,WING .31-18 UNC NYL/TALC

$4.99

$

In Stock, Qty 20+

0

26

Gravely 08300512

SPRING, EXTENSION

$18.99

$

In Stock, Qty 20+

0

27

Gravely 08300520

SPRING, DRIVE ROLLER SP

$15.99

$

Usually ships in 4-12 days

0

28

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

30

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$3.49

$

Usually ships in 4-12 days

0

32

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

33

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$3.49

$

In Stock, only 3 left!

0

34

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.99

$

In Stock, Qty 12

0

35

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

36

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$1.49

$

In Stock, Qty 10

0

37

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

41

Gravely 05800300

PIN-ROLL .188X1.25

$1.49

$

In Stock, Qty 20+

0

42

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.99

$

In Stock, Qty 20+

0

43

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 04156951

WMT-SELF PROPEL FRAME 19038K

Note: (BLACK)

$

$

Not available

46

Gravely 04159751

WMT-PIVOT, RH SP FRAME 17367K

Note: (BLACK)

$

$

Not available

47

Gravely 04159851

WMT-PIVOT, LH SP FRAME 17368K

Note: (B)LACK

$

$

Not available

48

Gravely 04164451

WMT-BELL CRANK 18959K

Note: (BLACK)

$25.99

$

Usually ships in 4-12 days

0

49

Gravely 04224451

WMT, SP BELT COVER MOUNTING

Note: (BLACK)

$56.99

$

Usually ships in 4-12 days

0

50

Gravely 04297100

BEARING ASSY, SP TOPSHAFT, HWM

$

$

Not available

51

Gravely 07334800

WMT,DBL SP IVP PULLEY 17344K

$82.99

$

Usually ships in 4-12 days

0

52

Gravely 07001702

GREASE FITTING 5/16 DRIVE IN

$

$

Not available
