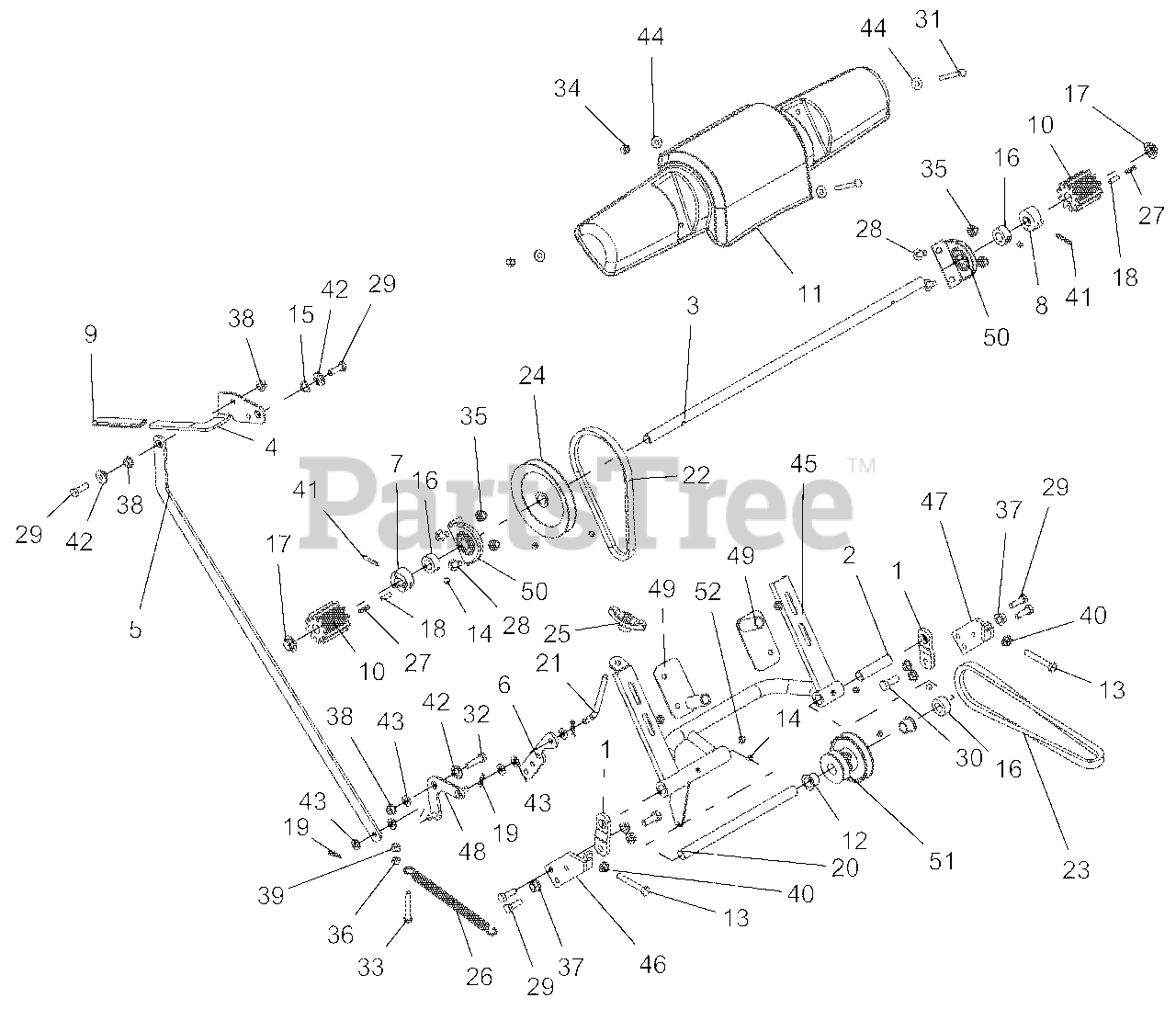

911703 - Ariens 24" Pro-24 High Wheel Self-Propelled Walk-Behind Mower, Briggs & Stratton (SN: 000101 & Above) Self-Propel Assembly Parts Diagram

24" Pro-24 High Wheel Self-Propelled Walk-Behind Mower, Briggs & Stratton

Self-Propel Assembly Parts Diagram

  • Title

1

Ariens 04160051

BRKT, SP FRAME PIVOT 12331K

Note: (BLACK)

$32.99

$

Usually ships in 4-12 days

0

2

Ariens 04160200

SHAFT, PIVOT, SHORT 12352K

$

$

Not available

3

Ariens 04162000

SHAFT, WHEEL DRIVE 19125K

$54.99

$

Usually ships in 4-12 days

0

4

Ariens 04162351

LEVER, SP ENGAGEMENT

Note: (BLACK)

$25.99

$

Usually ships in 4-12 days

0

5

Ariens 04163151

BAR, ENGAGEMENT LEVER CONN.

Note: (BLACK)

$40.99

$

Usually ships in 4-12 days

0

6

Ariens 04164351

BRKT, ENGAGE, ADJ. 20100K

Note: (BLACK)

$12.99

$

Usually ships in 4-12 days

0

7

Ariens 04165700

CLUTCH, RIGHT SP -12333K

$23.99

$

In Stock, only 2 left!

0

8

Ariens 04165800

CLUTCH, LEFT SP -12334K

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 04166700

GRIP MZR/MOMENT SP 7/8X3/4X4

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 04189900

GEAR, DRIVE (SP) 219943K

Note: (SP)

$82.99

$

Usually ships in 4-12 days

0

11

Ariens 04191000

COVER, PLASTIC-SP (HIGH WHEEL)

Note: (HIGH WHEEL)

$86.99

$

Usually ships in 4-12 days

0

12

Ariens 05501009

BUSHING,FLANGED .75X.625X.62

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 05901429

HHCS 5/16-18 X 2-1/4 FULL THD

$

$

Not available

14

Ariens 06000219

SET SCREW 5/16-18 X 5/16 CP

$

$

Not available

15

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 10

0

16

Ariens 06400909

SET COLLAR .625ID X .50

$

$

Not available

17

Ariens 06500640

NUT-PUSH .625 DIA. PAL

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 06700208

DOWEL PIN 1/4 X 3/4

$3.49

$

In Stock, only 4 left!

0

19

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

20

Ariens 04160100

SHAFT, PIVOT, LONG 12351K

$10.99

$

Usually ships in 4-12 days

0

21

Ariens 07030001

THDED ROD.31-18X3.0THD YZ

$20.99

$

Usually ships in 4-12 days

0

22

Ariens 07200538

V-BELT, 4L-RAW EDGE

$23.99

$

Usually ships in 4-12 days

0

23

Ariens 07206000

V-BELT, 4L-RAW EDGE

$20.99

$

Usually ships in 4-12 days

0

24

Ariens 07333900

PULLEY 5"OD X 5/8"ID

$52.99

$

Usually ships in 4-12 days

0

25

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 13

0

26

Ariens 08300512

SPRING, EXTENSION

$15.99

$

In Stock, Qty 15

0

27

Ariens 08300520

SPRING, DRIVE ROLLER SP

$14.99

$

In Stock, only 4 left!

0

28

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

29

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

30

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 05956700

@BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

33

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

34

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

35

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

36

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

37

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

38

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

40

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

41

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, only 4 left!

0

42

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$3.99

$

In Stock, Qty 14

0

43

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

44

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

45

Ariens 04156951

WMT-SELF PROPEL FRAME 19038K

Note: (BLACK)

$

$

Not available

46

Ariens 04159751

WMT-PIVOT, RH SP FRAME 17367K

Note: (BLACK)

$

$

Not available

47

Ariens 04159851

WMT-PIVOT, LH SP FRAME 17368K

Note: (B)LACK

$

$

Not available

48

Ariens 04164451

WMT-BELL CRANK 18959K

Note: (BLACK)

$23.99

$

Usually ships in 4-12 days

0

49

Ariens 04224451

WMT, SP BELT COVER MOUNTING

Note: (BLACK)

$52.99

$

Usually ships in 4-12 days

0

50

Ariens 04297100

BEARING ASSY, SP TOPSHAFT, HWM

$

$

Not available

51

Ariens 07334800

WMT,DBL SP IVP PULLEY 17344K

$77.99

$

Usually ships in 4-12 days

0

52

Ariens 07001702

GREASE FITTING 5/16 DRIVE IN

$

$

Not available
