911705 (PRO-26) - Gravely 26" Walk-Behind High-Wheel Mower, CARB (SN: 000101 - 004199) Deck Parts Diagram

26" Walk-Behind High-Wheel Mower, CARB

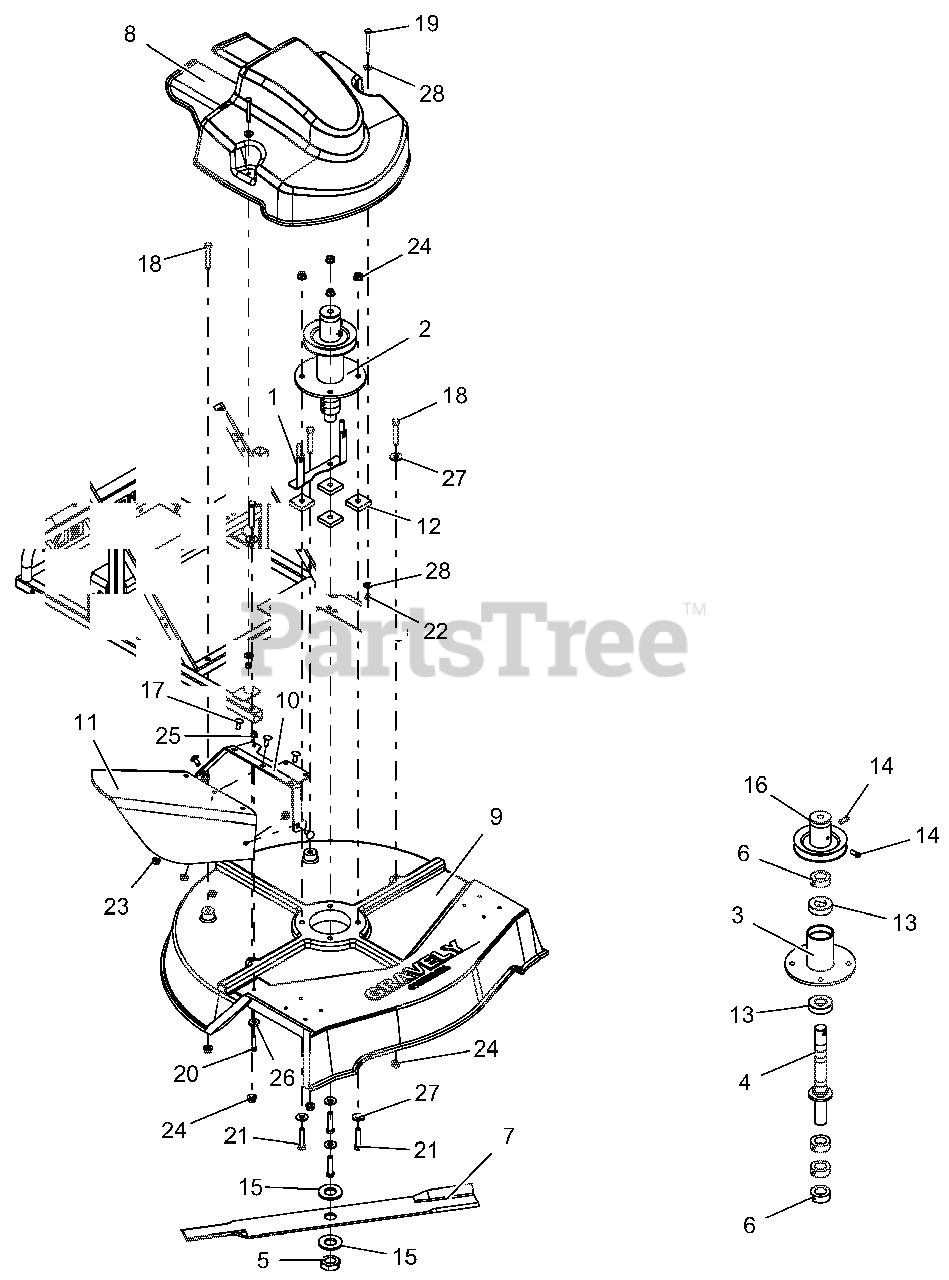

Deck Parts Diagram

  • Title

1

Gravely 04313651

WMT-HWM SPINDLE BELT FINGER

Note: (BLACK)

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 51115600

KIT, DECK SPINDLE ASSY, HWM

$290.99

$

Usually ships in 4-12 days

0

3

Gravely 04162251

WMT-SPINDLE, HW MOWER 17304K

Note: (BLACK)

$123.99

$

Usually ships in 4-12 days

0

4

Gravely 04163000

WMT-SPINDLE SHAFT, HWM 18876K

$229.99

$

Usually ships in 4-12 days

0

5

Gravely 02117200

JAM NUT 1-14 NF 15614

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 02550900

LOCKING COLLAR 1IN 50022213

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 04167600

BLADE, 26"

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 04190900

COVER, PLASTIC BELT-HIGH WHEEL

$

$

Not available

9

Gravely 51118100

DECAL, GRAVELY 26" DECK W/

Note: (RED)

$533.99

$

Usually ships in 4-12 days

0

10

Gravely 04318553

BRKT, HWM 26 DISCHARGE CHUTE

Note: (RED)

$23.99

$

Usually ships in 4-12 days

0

11

Gravely 04333400

CHUTE, RUBBER DISCHARGE, 26HWM

$48.99

$

Usually ships in 4-12 days

0

12

Gravely 04344700

SPACER, SQUARE .38X1.50X.38THK

$

$

Not available

13

Gravely 05400407

BEARING 1.00 ID X 2 50019553

$37.99

$

Usually ships in 4-12 days

0

14

Gravely 06000220

SCR-SET .31-18X.75 SQHCUP HT

$2.99

$

In Stock, only 1 left!

0

15

Gravely 06400524

1"USS WASHER HARD NO PLA 33852

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 07334300

DOUBLE BLADE SHAFT PULLEY

$76.99

$

Usually ships in 4-12 days

0

17

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

23

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

26

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

27

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0
