911705 (PRO-26) - Gravely 26" Walk-Behind High-Wheel Mower, CARB (SN: 000101 - 004199) Idler And Rocker Arm Parts Diagram

26" Walk-Behind High-Wheel Mower, CARB

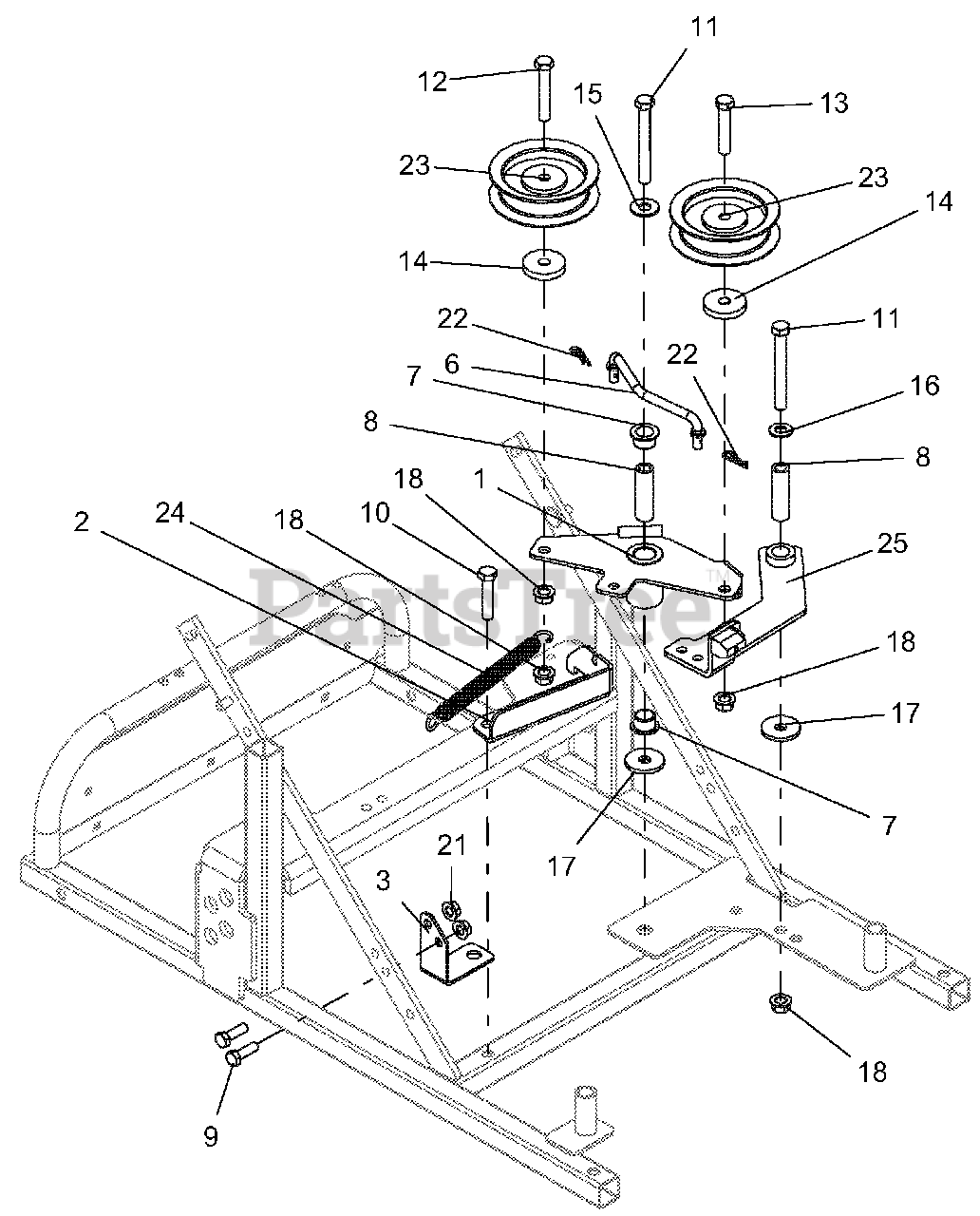

Idler And Rocker Arm Parts Diagram

  • Title

1

Gravely 04166851

WMT, IDLER ROCKER TM-26 (BLACK)

Note: (BLACK)

$

$

Not available

2

Gravely 04310251

MOUNT, LOWER PTO CABLE (BLACK)

Note: (BLACK)

$19.99

$

In Stock, only 1 left!

0

3

Gravely 04313551

MOUNT, HWM PTO IDLER SPRING (BLACK)

Note: (BLACK)

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 04323400

ROD, SPINDLE BRAKE

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 05500907

BSHG, FLANGE .625 x .75 x .50 x 1.00

$5.99

$

In Stock, Qty 16

0

8

Gravely 05501002

BSHG-SLV .375X.625X2.03

$

$

Not available

9

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

10

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

11

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 11

0

14

Gravely 06400006

WSHR-FL-STL .406X1.50X.245 YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, Qty 5

0

18

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

21

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06713500

PIN, HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 16

0

23

Gravely 07336700

FLAT IDLER, STENS 280-671

$28.99

$

Usually ships in 4-12 days

0

24

Gravely 08300512

SPRG, EXTENSION

$15.99

$

In Stock, Qty 14

0

25

Gravely 51119200

KIT, BRAKE ARM ASSY, HWM

$77.99

$

Usually ships in 4-12 days

0
