911705 (PRO-26) - Gravely 26" Walk-Behind High-Wheel Mower, CARB (SN: 000101 - 004199) Wheels Parts Diagram

26" Walk-Behind High-Wheel Mower, CARB

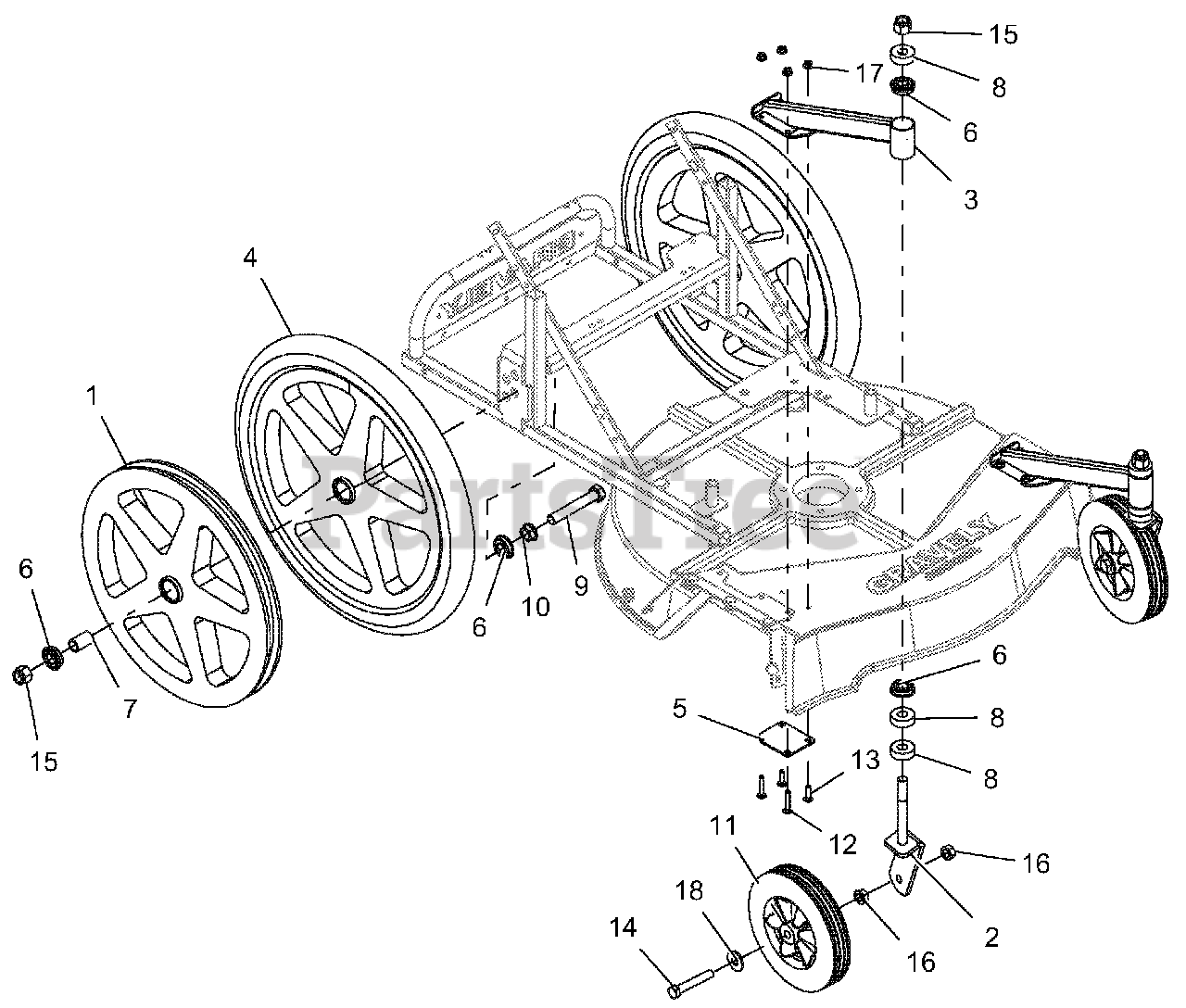

Wheels Parts Diagram

  • Title

1

Gravely 04277200

WHEEL, 20" BLACK MAG

$

$

Not available

2

Gravely 04279253

WLDMT, CASTER (RED)

Note: (RED)

$52.99

$

Usually ships in 4-12 days

0

3

Gravely 04314753

WLDMT, CASTER SUPPORT, HWM 26" (RED)

Note: (RED)

$136.99

$

Usually ships in 4-12 days

0

4

Gravely 04208200

WHEEL, 20" TIRE/RIM ASSY BLK/MAG

$136.99

$

In Stock, Qty 6

0

5

Gravely 04315051

BACKER PLATE, CASTER SUPPORT (BLACK)

Note: (BLACK)

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 05400714

BALL BEARING 5/8 ID X 1-3/8OD

$9.49

$

In Stock, only 3 left!

0

7

Gravely 05501015

SPCR, .640X.840X1.39

$20.99

$

In Stock, only 1 left!

0

8

Gravely 05535200

SPCR, .65X1.50X.50 POLYPROPYL

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 05901433

BLT-HEX .62-11X4.00 GR5 FTH YZ

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 06530002

NUT-HEX FLANGE .62-11 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 07100839

WHEEL, PLASTIC -8"X1.75" BLACK

$25.99

$

In Stock, only 1 left!

0

12

Gravely 06222300

BLT-RDHDSQNK .25-20X1.50 G5 Y
(Superseded to 06200331)

$1.49

$

In Stock, Qty 10

0

13

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5 YWZC
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, Qty 8

0

15

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$3.99

$

In Stock, Qty 10

0

16

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 11

0

18

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0
