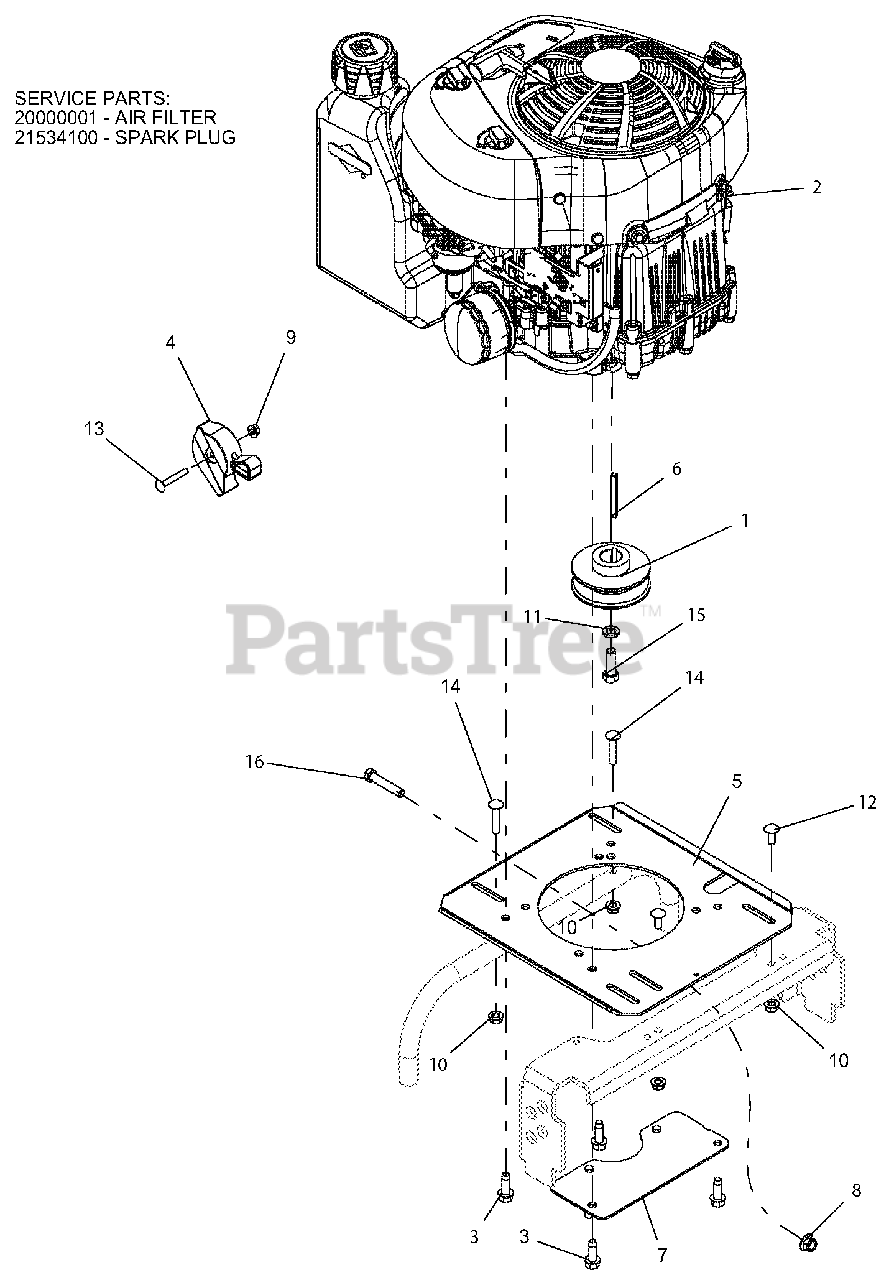

911706 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, CARB (SN: 000101 - 004199) Engine Parts Diagram

24" Walk-Behind High-Wheel Mower, CARB

Engine Parts Diagram

  • Title

1

Gravely 04297600

WMT-SHEAVE, ENGINE HWM INTEK

$298.99

$

Usually ships in 4-12 days

0

2

Gravely 08201010

ENGINE, BRIGGS -10.5HP INTEK CARB

$

$

Not available

2

Gravely 20000001

AIR FILTER

$

$

Not available

2

Gravely 21534100

SPARK PLUG

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 06900511

CABLE, THROTTLE , KILL & CHOKE

$60.99

$

In Stock, only 1 left!

0

5

Gravely 04164153

PLATE, ENGINE (RED)

Note: (RED)

$42.99

$

Usually ships in 4-12 days

0

6

Gravely 06610300

KEY, .25X.25X2.25

$3.49

$

In Stock, Qty 10

0

7

Gravely 04313851

WLDMT, HWM ENGINE BELT FINGER (BLACK)

Note: (BLACK)

$27.99

$

Usually ships in 4-12 days

0

8

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

10

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 3 left!

0

12

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06220000

BLT-RDHDSQNK .25-20X1.75 G5 Y
(Superseded to 06200404)

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

15

Gravely 05964800

BLT, HEX .44-20X1.25 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 05942200

BLT-HEX .38-16X2.00 FTH GR5 YWZC

$3.49

$

In Stock, only 1 left!

0
