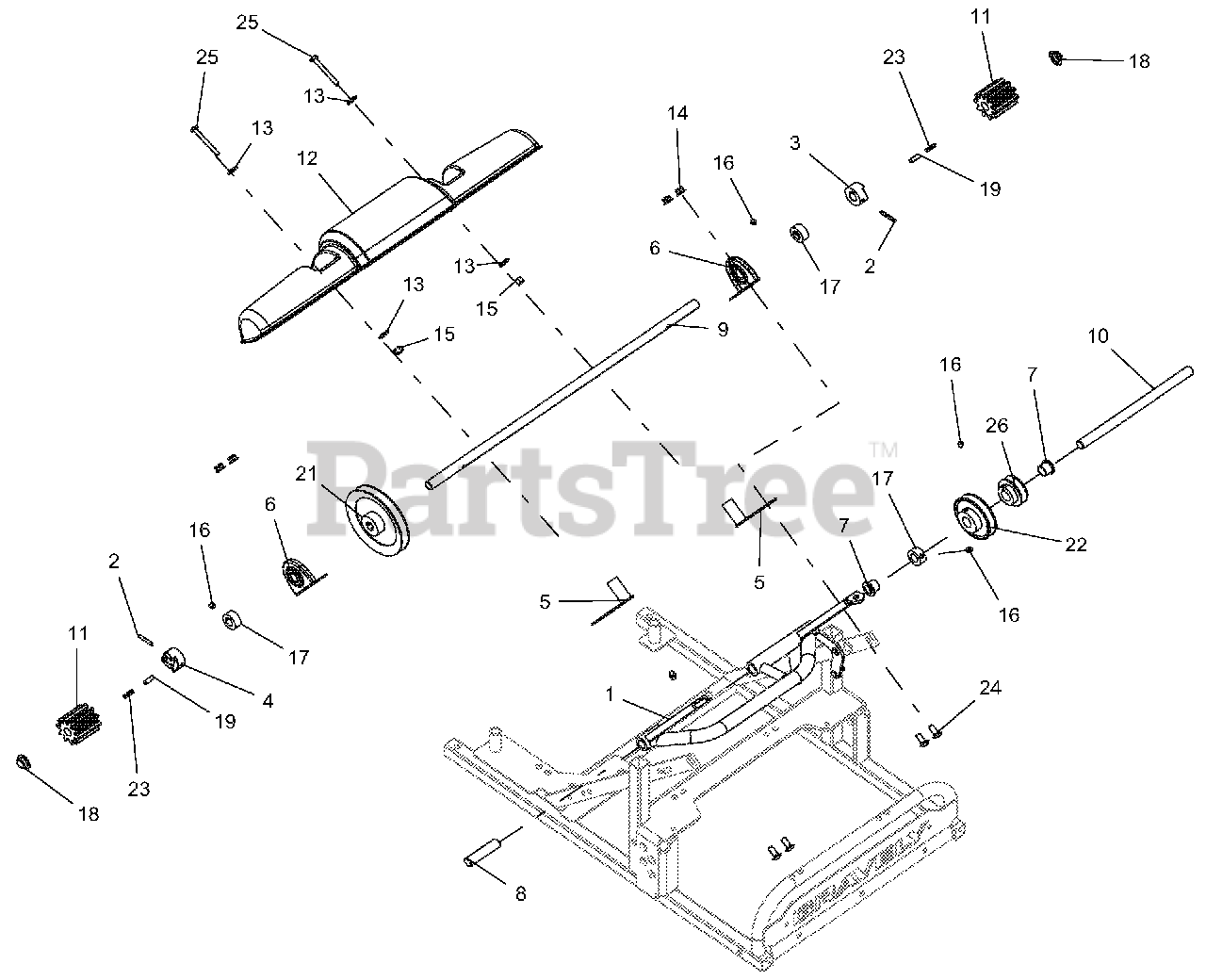

911706 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, CARB (SN: 000101 - 004199) Self-Propelled Brake Parts Diagram

24" Walk-Behind High-Wheel Mower, CARB

Self-Propelled Brake Parts Diagram

  • Title

1

Gravely 04156951

WMT-SELF PROPEL FRAME (BLACK)

Note: (BLACK)

$

$

Not available

2

Gravely 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 14

0

3

Gravely 04165700

CLUTCH, RIGHT SP

$23.99

$

In Stock, only 2 left!

0

4

Gravely 04165800

CLUTCH, LEFT SP

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 04224451

WLDMT, SP BELT COVER MOUNTING (BLACK)

Note: (BLACK)

$54.99

$

Usually ships in 4-12 days

0

6

Gravely 04297100

BEARING ASSY, SP TOPSHAFT, HWM

$

$

Not available

7

Gravely 05501009

BUSHING, FLANGED .75X.625X.62

$

$

Not available

8

Gravely 04160200

SHAFT, PIVOT SHORT

$

$

Not available

9

Gravely 04162000

SHAFT, WHEEL DRIVE

$56.99

$

Usually ships in 4-12 days

0

10

Gravely 04160100

SHAFT, PIVOT LONG

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 04189900

GEAR, DRIVE (SP)

Note: (SP)

$118.99

$

Usually ships in 4-12 days

0

12

Gravely 04191000

COVER, PLASTIC -SP (HIGH WHEEL)

Note: (HIGH WHEEL)

$88.99

$

Usually ships in 4-12 days

0

13

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

16

Gravely 06000219

SET SCREW 5/16-18 X 5/16 CP

$

$

Not available

17

Gravely 06400909

SET COLLAR .625ID X .50

$

$

Not available

18

Gravely 06500640

NUT, PUSH .625 DIA. PAL

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06700208

DOWEL PIN 1/4 X 3/4

$3.99

$

In Stock, only 4 left!

0

21

Gravely 07333900

PULLEY, 5" OD X 5/8" ID

$53.99

$

Usually ships in 4-12 days

0

22

Gravely 07334800

WMT,DBL SP IVP PULLEY 17344K

$79.99

$

Usually ships in 4-12 days

0

23

Gravely 08300520

SPRG, COMPRESSION

$15.99

$

In Stock, only 4 left!

0

24

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 07334200

PULLEY, 2"O.D.X3/4"I.D.NO KEY

$

$

Not available
