911707 - Ariens 24" Pro-24 High Wheel Self-Propelled Brush Cutter, Briggs & Stratton (SN: 000101 - 004199) Deck, Blade And Spindle Parts Diagram

24" Pro-24 High Wheel Self-Propelled Brush Cutter, Briggs & Stratton

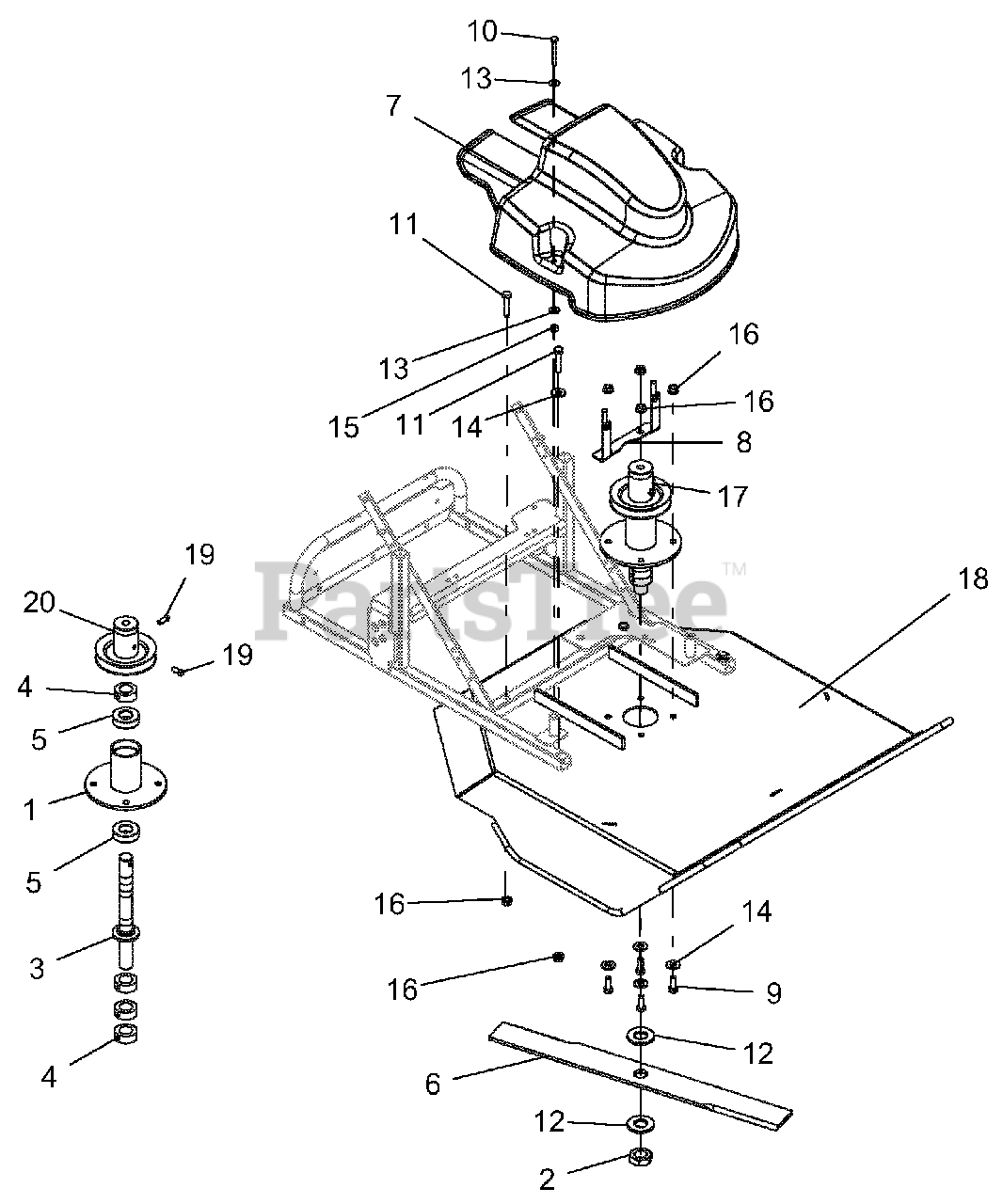

Deck, Blade And Spindle Parts Diagram

  • Title

1

Ariens 04162251

WMT-SPINDLE, HW MOWER 17304K

Note: (BLACK)

$120.99

$

Usually ships in 4-12 days

0

2

Ariens 02117200

JAM NUT 1-14 NF 15614

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 04163000

WMT-SPINDLE SHAFT, HWM 18876K

$224.99

$

Usually ships in 4-12 days

0

4

Ariens 02550900

LOCKING COLLAR 1IN 50022213

$16.99

$

Usually ships in 4-12 days

0

5

Ariens 05400407

BEARING 1.00 ID X 2 50019553

$34.99

$

Usually ships in 4-12 days

0

6

Ariens 04167500

BLADE,BUSH MOWER 24"

$39.99

$

Usually ships in 4-12 days

0

7

Ariens 04190900

COVER, PLASTIC BELT-HIGH WHEEL

$139.99

$

Usually ships in 4-12 days

0

8

Ariens 04313651

WMT-HWM SPINDLE BELT FINGER

Note: (BLACK)

$129.99

$

Usually ships in 4-12 days

0

9

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05956700

@BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

12

Ariens 06400524

1"USS WASHER HARD NO PLA 33852

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0

14

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

15

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 51115600

KIT, DECK SPINDLE ASSY, HWM

$285.99

$

Usually ships in 4-12 days

0

18

Ariens 51117900

DECAL, ARIENS BRUSH DECK W/

Note: (ORANGE)

$

$

Not available

19

Ariens 06000220

SCR-SET .31-18X.75 SQHCUP HT

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 07334300

DOUBLE BLADE SHAFT PULLEY

$75.99

$

Usually ships in 4-12 days

0
