911707 - Ariens 24" Pro-24 High Wheel Self-Propelled Brush Cutter, Briggs & Stratton (SN: 000101 - 004199) Engine And Belt Parts Diagram

24" Pro-24 High Wheel Self-Propelled Brush Cutter, Briggs & Stratton

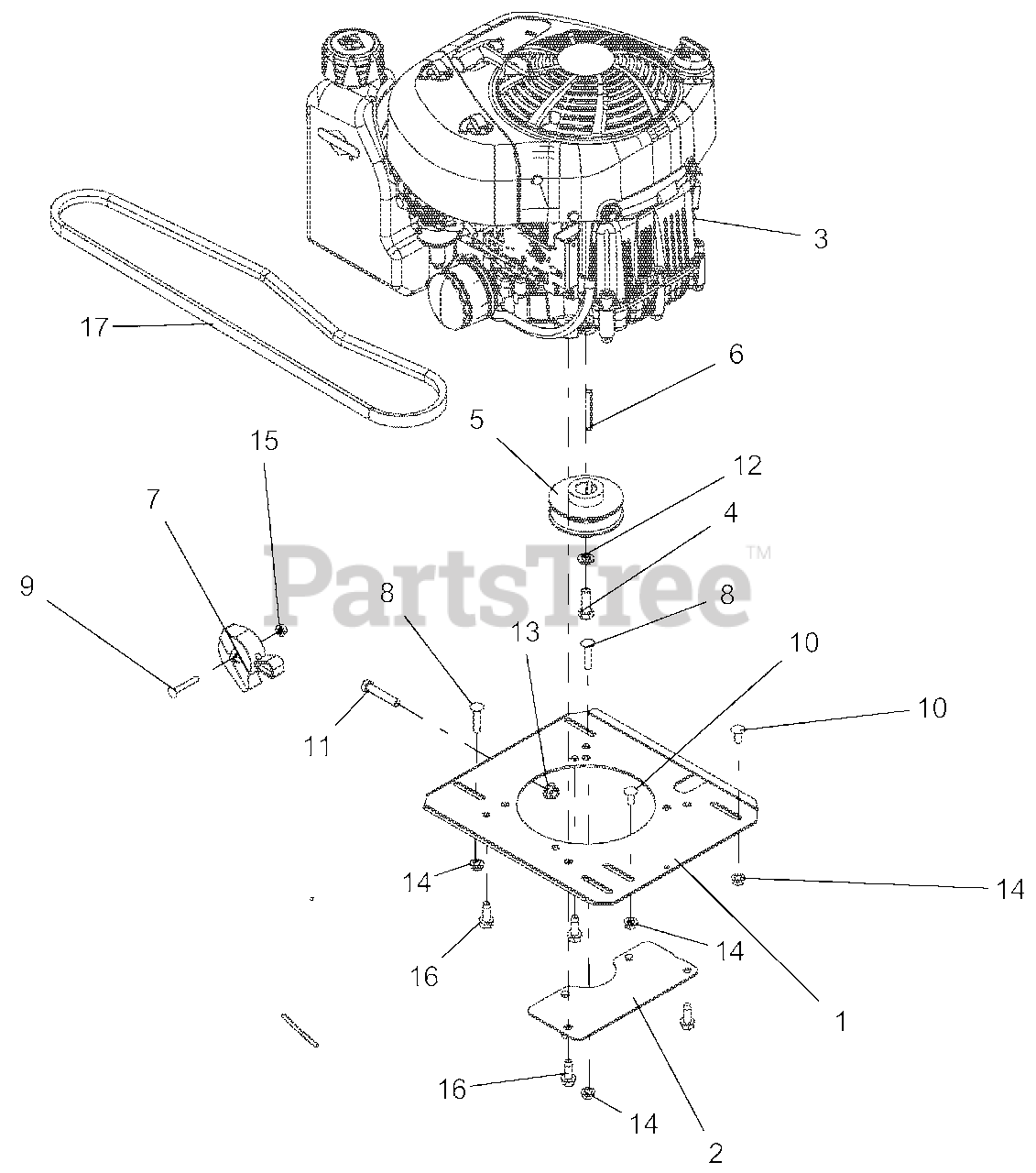

Engine And Belt Parts Diagram

  • Title

1

Ariens 04164159

PLATE-ENGINE MTG

Note: (ORANGE)

$42.99

$

Usually ships in 4-12 days

0

2

Ariens 04313851

WMT-HWM ENGINE BELT FINGER

Note: (BLACK)

$27.99

$

Usually ships in 4-12 days

0

3

Ariens 08201010

ENGINE, B&S 10.5HP INTEK CARB

$

$

Not available

4

Ariens 05964800

BLT-HEX .44-20X1.25 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 04297600

WMT-SHEAVE, ENGINE HWM INTEK

$298.99

$

Usually ships in 4-12 days

0

6

Ariens 06610300

KEY .25X.25X2.25

$3.49

$

In Stock, Qty 7

0

7

Ariens 06900511

CABLE, THROTTLE, KILL & CHOKE

$60.99

$

In Stock, only 1 left!

0

8

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, only 2 left!

0

9

Ariens 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

11

Ariens 05942200

BLT-HEX .38-16X2.0 GR5 FTD YWZ

$3.49

$

In Stock, only 1 left!

0

12

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

13

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 6

0

17

Ariens 07200604

V-BELT, 5L-WRAPPED

$55.99

$

Usually ships in 4-12 days

0
