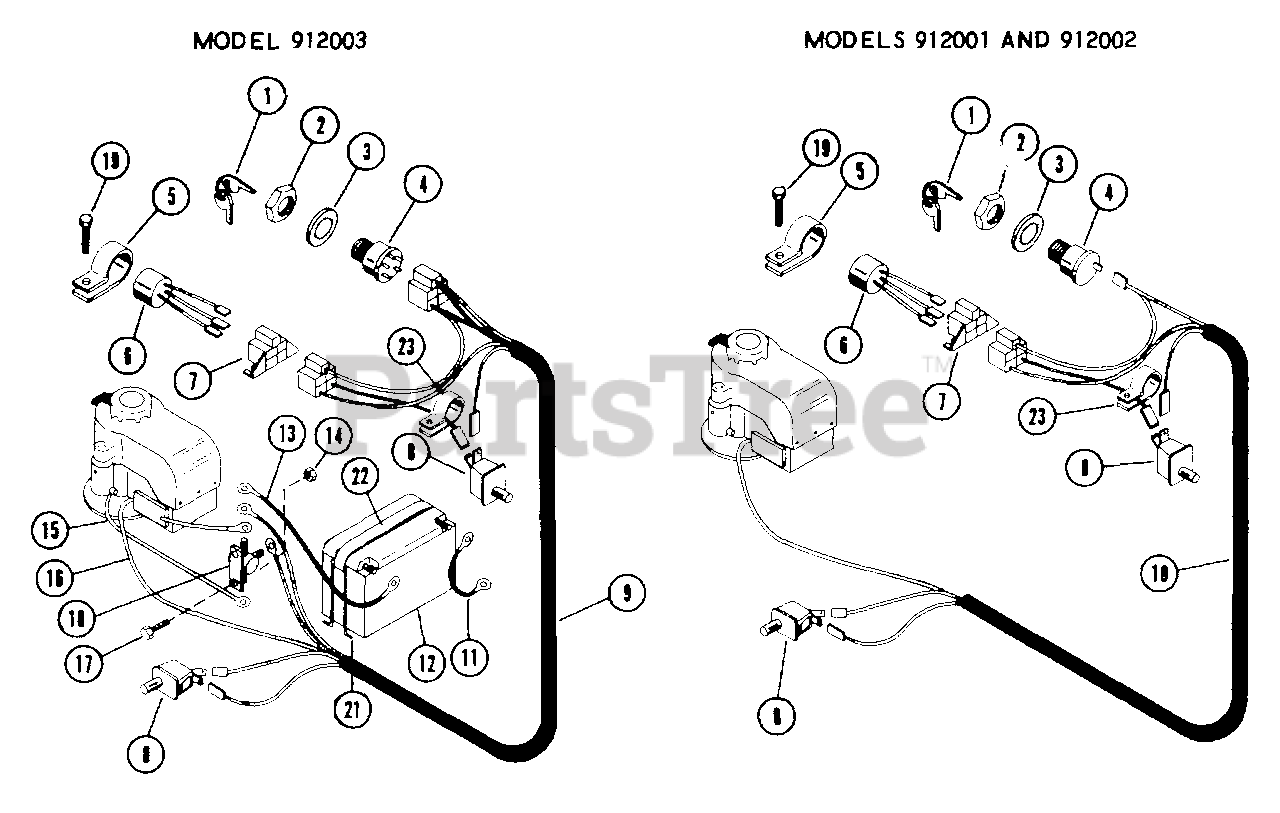

912001 - Ariens Fairway 26" Rear-Engine Rider, 5hp Tecumseh (SN: 000001 & Above) Electrical System Parts Diagram

Fairway 26" Rear-Engine Rider, 5hp Tecumseh

Electrical System Parts Diagram

  • Title

1

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 16

0

2

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: (SPECIAL)

$7.99

$

In Stock, only 1 left!

0

3

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

Note: (SPECIAL)

$3.99

$

In Stock, only 1 left!

0

4

Ariens 62500900

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (Used Only On Model(s): 912001,002).

$56.99

$

In Stock, only 3 left!

0

4

Ariens 62501100

KEY SWITCH ASSEMBLY
(Superseded to 52503900)

Note: (Used Only On Model(s): 912003).

$

$

Not available

5

Ariens 06907500

CLIP

$

$

Not available

6

Ariens 02517000

MODULE T
(Superseded to 52502600)

$

$

Not available

7

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

8

Ariens 01217200

SHIFT LINK

$

$

Not available

9

Ariens 01220800

WIRING HARNESS

Note: (Used Only On Model(s): 912003).

$

$

Not available

10

Ariens 01221700

WIRING HARNESS

Note: (Used Only On Model(s): 912001,002).

$

$

Not available

11

Ariens 00332300

GROUND CABLE

Note: (GROUND) (Used Only On Model(s): 912003).

$

$

Not available

12

Ariens 02512900

BATTERY
(Superseded to 52708000)

Note: (Used Only On Model(s): 912003).

$

$

Not available

13

Ariens 01216800

POSITIVE BATTERY CABLE

Note: (POSITIVE) (Used Only On Model(s): 912003).

$

$

Not available

14

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 912003).

$0.99

$

In Stock, Qty 20+

0

15

Ariens 02513300

GROUND CABLE

Note: (Used Only On Model(s): 912003).

$

$

Not available

16

Ariens 02514000

CHARGING WIRE

Note: (Used Only On Model(s): 912003).

$

$

Not available

17

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 912003).

$0.99

$

In Stock, Qty 5

0

18

Ariens 02341900

SOLENOID
(Superseded to 53114800)

Note: (Used Only On Model(s): 912003).

$

$

Not available

19

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

Note: (Used Only On Model(s): 912003).

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 01220100

SWITCH BRACKET
(Superseded to 01225000)

Note: (NOT SHOWN) (Used Only On Model(s): 912003).

$

$

Not available

21

Ariens 02515200

HOOK
(Superseded to 03640900)

Note: (Used Only On Model(s): 912003).

$38.99

$

Usually ships in 4-12 days

0

22

Ariens 07503200

RUBBER BAND
(Superseded to 07507500)

Note: (Used Only On Model(s): 912003).

$14.99

$

Usually ships in 4-12 days

0

23

Ariens 06905700

CLIP

$

$

Not available
