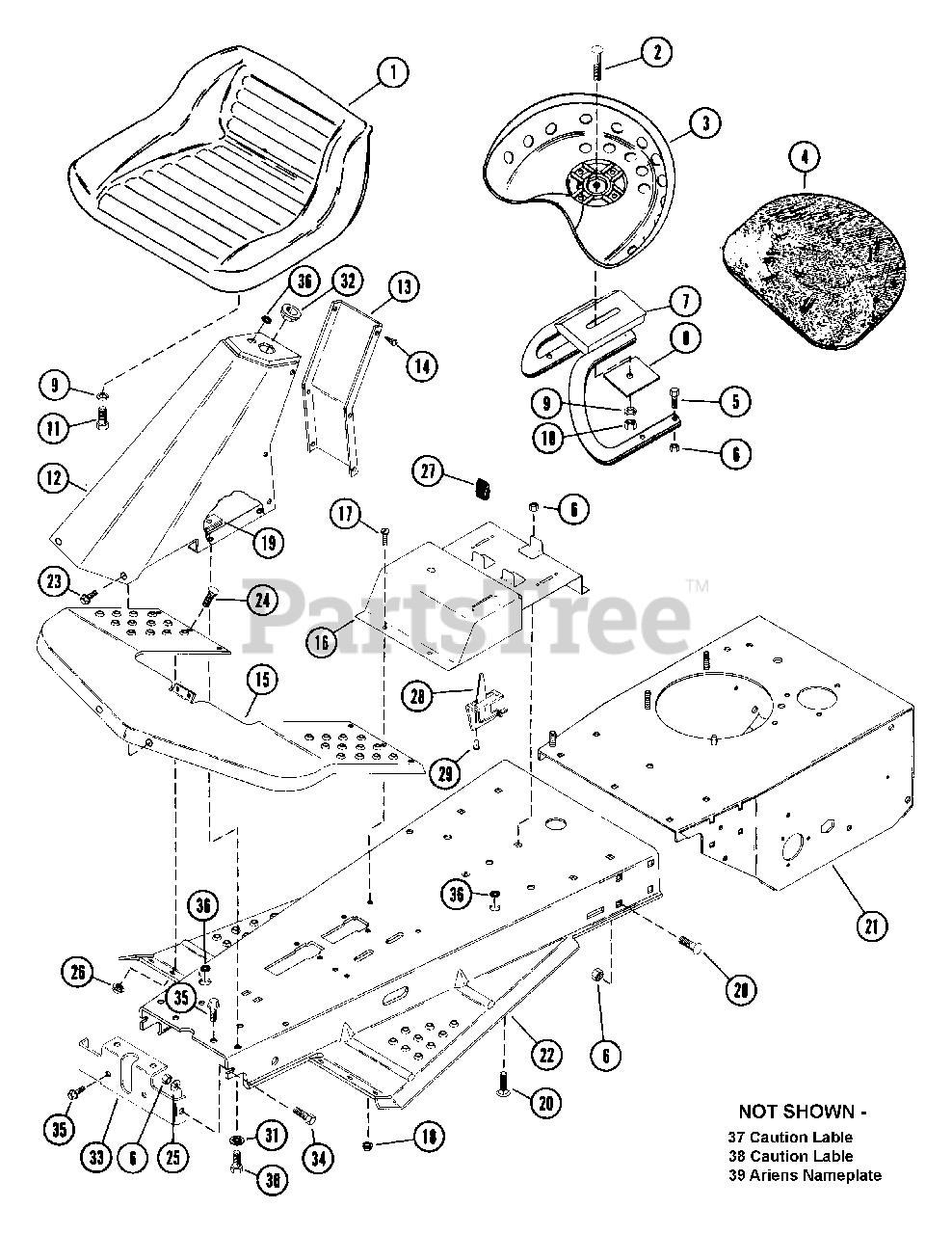

912001 - Ariens Fairway 26" Rear-Engine Rider, 5hp Tecumseh (SN: 000001 & Above) Seat And Frame Parts Diagram

Fairway 26" Rear-Engine Rider, 5hp Tecumseh

Seat And Frame Parts Diagram

  • Title

1

Ariens 00337500

SEAT
(Superseded to 01231500)

Note: (Used Only On Model(s): 912003,002).

$

$

Not available

2

Ariens 06201400

BLT-RDHDSQNK .50-13X1.25 PL
(Superseded to 06224700)

Note: (Used Only On Model(s): 912001).

$5.99

$

In Stock, only 1 left!

0

3

Ariens 01208300

SEAT
(Superseded to 08574053)

Note: (Used Only On Model(s): 912001).

$

$

Not available

4

Ariens 01217500

SEAT COVER

Note: (Used Only On Model(s): 912001).

$

$

Not available

5

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 01218900

SEAT BRACKET
(Superseded to 01207000)

$

$

Not available

8

Ariens 01207900

SEAT SUPPORT WASHER

$

$

Not available

9

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

10

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

Note: (Used Only On Model(s): 912001).

$3.99

$

In Stock, only 2 left!

0

11

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

Note: (Used Only On Model(s): 912003,002).

$3.49

$

In Stock, only 1 left!

0

12

Ariens 02604000

STEERING COLUMN

$

$

Not available

13

Ariens 02604100

STEERING COLUMN COVER

$

$

Not available

14

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

15

Ariens 02601100

FRONT FENDER

$

$

Not available

16

Ariens 01220200

DASH PANEL

$

$

Not available

17

Ariens 06103200

SCR-MCH .25-20X.63 CRPH PL

$

$

Not available

18

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

19

Ariens 06508500

NUT-SPEED U-TYPE .312-18
(Superseded to 06513000)

$

$

Not available

20

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, only 4 left!

0

21

Ariens 01220300

REAR FRAME
(Superseded to 01229900)

$

$

Not available

22

Ariens 01219300

FRONT FRAME
(Superseded to 51202400)

$

$

Not available

23

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

25

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

26

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

27

Ariens 07501900

KNOB

$

$

Not available

28

Ariens 06908400

THROTTLE CONTROL

$

$

Not available

29

Ariens 06803100

RVT-POP.125 X .294 DOME

$

$

Not available

30

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

31

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

32

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

33

Ariens 01222000

FRONT FRAME SUPPORT

$

$

Not available

34

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 15

0

35

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$

$

Not available

36

Ariens 07502600

GROMMET, .31 ID

$

$

Not available

37

Ariens 07816000

SAFETY LABEL

Note: (Used Only On Model(s): 912001,002).

$

$

Not available

38

Ariens 07820800

CAUTION LABEL

Note: (Used Only On Model(s): 003).

$

$

Not available

39

Ariens 07817400

ARIENS NAME PLATE

Note: (Not illust.)

$

$

Not available
