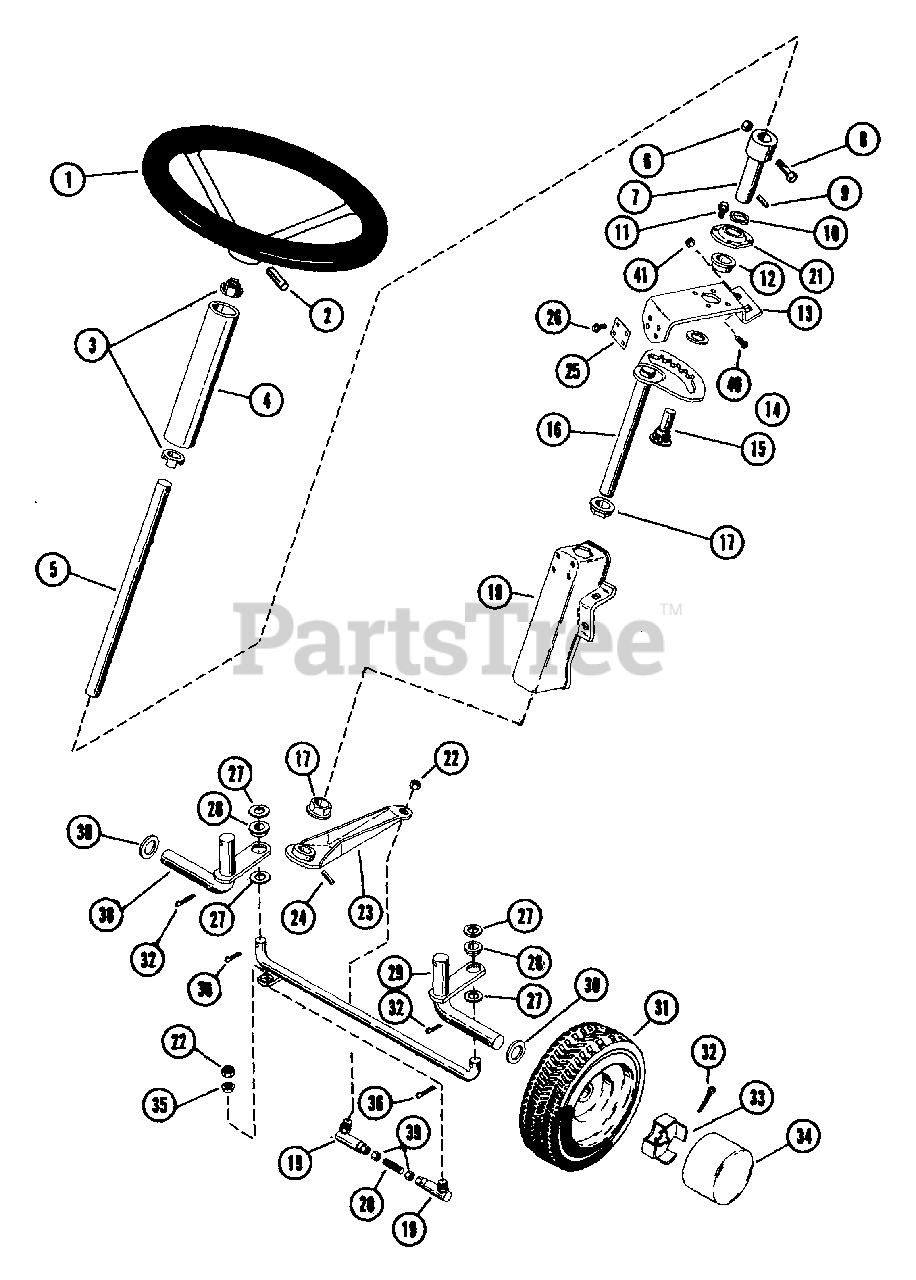

912001 - Ariens Fairway 26" Rear-Engine Rider, 5hp Tecumseh (SN: 000001 & Above) Steering Parts Diagram

Fairway 26" Rear-Engine Rider, 5hp Tecumseh

Steering Parts Diagram

  • Title
1

Ariens 02604300

WHEEL
(Superseded to 02713600)

$

$

Not available

2

Ariens 05800700

PIN-ROLL .250X1.25

$1.96

$

In Stock, Qty 6

0

3

Ariens 02607400

EXTENSION CUP

$

$

Not available

4

Ariens 62601100

STEER COVER
(Superseded to 01233300)

Note: (Incl. ref# 3)

$

$

Not available

5

Ariens 02607300

STEERING SHAFT EXT
(Superseded to 02470401)

$2.40

$

In Stock, Qty 7

0

6

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$2.24

$

In Stock, Qty 20+

0

7

Ariens 02604700

STEERING SHAFT
(Superseded to 02470401)

$2.40

$

In Stock, Qty 7

0

8

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$2.24

$

In Stock, Qty 5

0

9

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.40

$

In Stock, Qty 7

0

10

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$1.96

$

In Stock, only 3 left!

0

11

Ariens 07402100

SCR-TAP 10-24X.25 CRSLPH PL 1A
(Superseded to 07415500)

$3.30

$

Usually ships in 4-12 days

0

12

Ariens 05505300

BSHG-FLG .625X1.156X.375 SI

$5.81

$

Usually ships in 4-12 days

0

13

Ariens 02603600

STEERING SUPPORT

$

$

Not available

14

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$2.24

$

In Stock, Qty 20+

0

15

Ariens 02506400

STEERING PINION

$

$

Not available

16

Ariens 02603700

STEERING GEAR

$

$

Not available

17

Ariens 01212800

FLANGE BUSHING

$5.53

$

Usually ships in 4-12 days

0

18

Ariens 02603800

DEEP DRAW STEERING BOXES

$

$

Not available

19

Ariens 00336900

BALL JOINT
(Superseded to 02917100)

$17.83

$

In Stock, Qty 5

0

20

Ariens 02506000

AXLE
(Superseded to 02729200)

$53.61

$

Usually ships in 4-12 days

0

21

Ariens 01310000

RETAINING PLATE

$12.24

$

Usually ships in 4-12 days

0

22

Ariens 06506800

NUT-LK-CTR .375-24
(Superseded to 06539400)

$2.12

$

In Stock, only 4 left!

0

23

Ariens 02603900

STEERING ARM

$

$

Not available

24

Ariens 05800300

PIN-ROLL .188X1.25

$1.96

$

In Stock, Qty 17

0

25

$

$

Not available

26

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$3.58

$

Usually ships in 4-12 days

0

27

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$1.96

$

In Stock, Qty 5

0

28

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$3.63

$

In Stock, Qty 20+

0

29

Ariens 01210200

L H WHEEL SPINDLE
(Superseded to 02735400)

$90.56

$

Usually ships in 4-12 days

0

30

Ariens 02512000

SPINDLE WASHER

$9.78

$

In Stock, only 3 left!

0

31

Ariens 61200500

FRONT WHEEL ASSEMBLY
(Superseded to 07126400)

$59.20

$

Usually ships in 4-12 days

0

31

Ariens 07108000

TIRE 4.10/3.50-4

$21.80

$

In Stock, Qty 14

0

31

$11.12

$

Usually ships in 4-12 days

0

31

Ariens 07108300

WHL
(Superseded to 52703100)

$85.64

$

Usually ships in 4-12 days

0

31

Ariens 01215200

ZERK FITTING

$3.47

$

Usually ships in 4-12 days

0

31

Ariens 05505800

BSHG-FLG .750X1.380X.750X1.557

$6.99

$

In Stock, only 3 left!

0

32

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$1.96

$

In Stock, Qty 10

0

33

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

$14.81

$

Usually ships in 4-12 days

0

34

Ariens 00337700

HUB CAP

$2.52

$

In Stock, Qty 20+

0

35

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$3.63

$

In Stock, Qty 20+

0

36

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$1.96

$

In Stock, Qty 14

0

37

Ariens 01210500

TIE ROD

$

$

Not available

38

Ariens 01210300

R H WHEEL SPINDLE

$

$

Not available

39

Ariens 06500500

NUT .375-24 PL

$3.58

$

In Stock, only 2 left!

0

40

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

Usually ships in 4-12 days

0

41

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0
