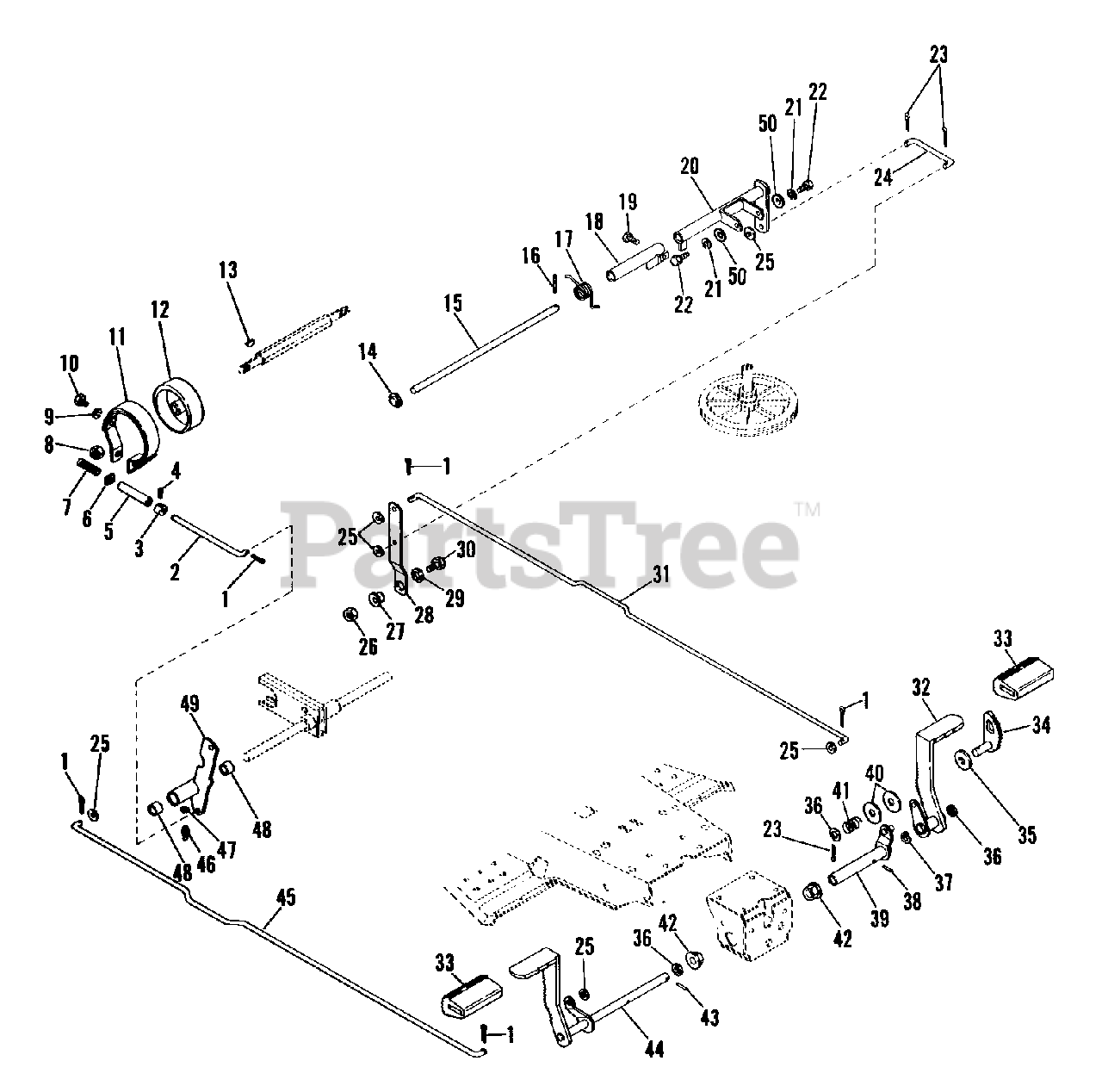

912010 - Ariens Fairway 26" Rear-Engine Rider, 6hp Tecumseh (SN: 000101 & Above) Clutch And Brake Parts Diagram

Fairway 26" Rear-Engine Rider, 6hp Tecumseh

Clutch And Brake Parts Diagram

  • Title

1

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

2

Ariens 01203200

BRAKE ROD

$

$

Not available

3

Ariens 00307400

SET COLLAR

$

$

Not available

4

Ariens 06001800

SCR-SET .25-20X.50 SQHCUP HT

$

$

Not available

5

Ariens 01219600

BRAKE SPACER .5 X .4 X 2.63

$

$

Not available

6

Ariens 01207400

BRAKE BAND WASHER

$

$

Not available

7

Ariens 08309100

SG-COMP .102X.85X1.031

$

$

Not available

8

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

In Stock, only 1 left!

0

9

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

10

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 15

0

11

Ariens 01203300

BRAKE BAND

$

$

Not available

12

Ariens 01202600

BRAKE DRUM

$

$

Not available

13

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

14

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 01203900

DISC FORK ROD

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 08317000

SG-TORS .086X.75X1.125

$

$

Not available

18

Ariens 01230000

NEUTRAL STOP

$

$

Not available

19

Ariens 07001400

BLT-LK .31-18X.75 GR 5

$

$

Not available

20

Ariens 01230100

DISK FORK

$

$

Not available

21

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

22

Ariens 01052200

SCREW PIN

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

24

Ariens 01221300

CLUTCH LINKAGE ROD

$

$

Not available

25

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

26

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 00206900

SHOULDER SPACER

$

$

Not available

28

Ariens 01221200

CLUTCH LINK BAR

$

$

Not available

29

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

31

Ariens 01219500

CLUTCH ROD

Note: (10,11)

$

$

Not available

31

Ariens 01234600

CLUTCH ROD

Note: (12)

$

$

Not available

32

Ariens 02601800

CLUTCH BRAKE LEVER

$

$

Not available

33

Ariens 07502900

PEDAL COVER

$

$

Not available

34

Ariens 01225400

BRAKE LATCH

$

$

Not available

35

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 13

0

36

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

37

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

38

Ariens 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, Qty 5

0

39

Ariens 02602000

CLUTCH BRAKE LEVER

$

$

Not available

40

Ariens 06413800

WSHR-FL-STL .531X.938X.104 PL

$4.49

$

In Stock, only 1 left!

0

41

Ariens 08312000

SG-COMP .072X.687X.75

$

$

Not available

42

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

43

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

44

Ariens 02601900

BRAKE LEVER

$

$

Not available

45

Ariens 01220000

BRAKE ROD

Note: (10,11)

$

$

Not available

45

Ariens 01234700

BRAKE ROD

Note: (12)

$

$

Not available

46

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

47

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

48

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, only 1 left!

0

49

Ariens 51200300

CLUTCH BRAKE BELL CRANK

$

$

Not available

50

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0
