915001 (EZR 1440) - Ariens 40" Zero-Turn Mower, 14hp Briggs & Stratton (SN: 000201 & Above) BELT IDLERS Parts Diagram

40" Zero-Turn Mower, 14hp Briggs & Stratton

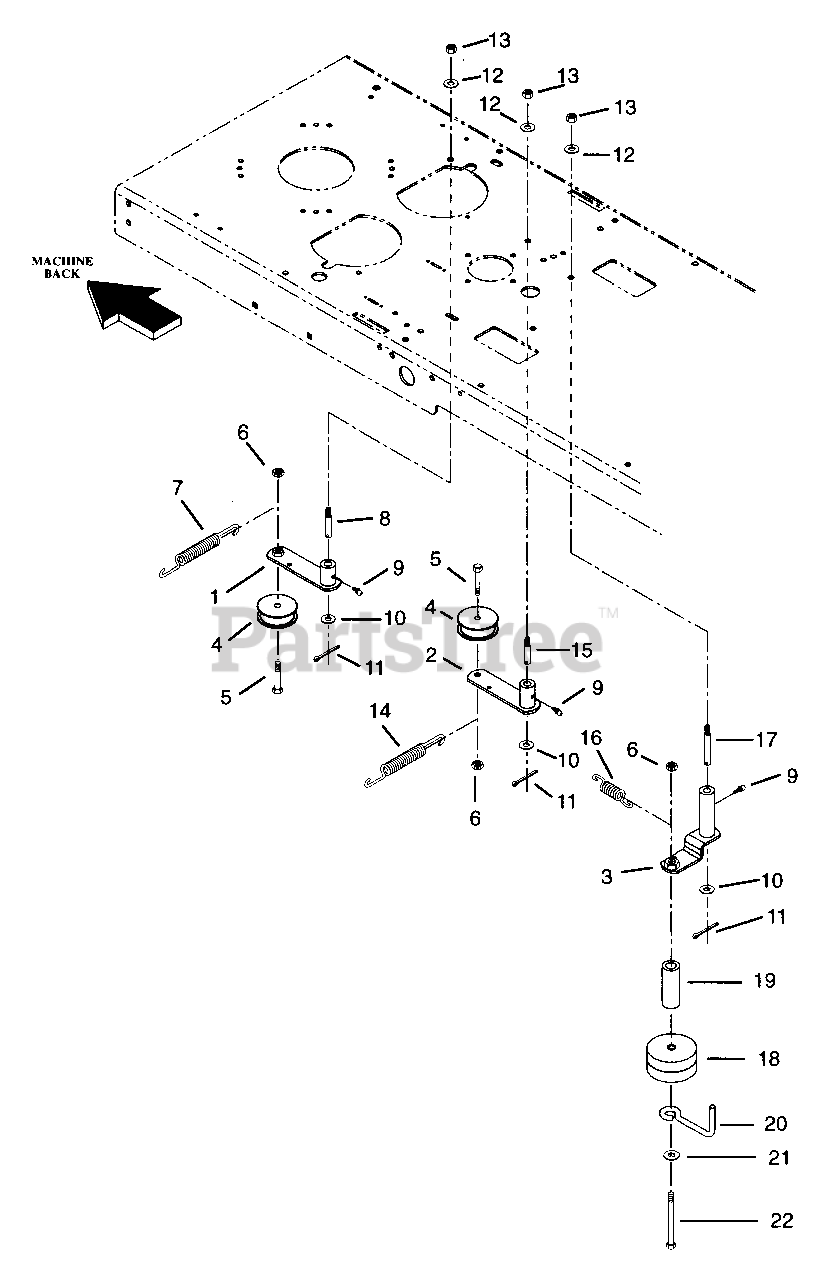

BELT IDLERS Parts Diagram

  • Title

1

Ariens 01518700

IDLER ARM -TRANS/ENG (SHORTER)

$

$

Not available

2

Ariens 01518600

IDLER ARM -CLUTCH/ENG (LONGER)

$184.99

$

Usually ships in 4-12 days

0

3

Ariens 03646100

ARM - IDLER PIVOT

$96.99

$

Usually ships in 4-12 days

0

4

Ariens 07308900

IDLER - 2.25X.87

$35.99

$

In Stock, Qty 6

0

5

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$3.49

$

In Stock, Qty 20+

0

6

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

7

Ariens 08320200

SG-TENS .085X.60X5.13 WLD8.3

$40.99

$

In Stock, only 4 left!

0

8

Ariens 01519400

SHOULDER STUD

$

$

Not available

9

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

10

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.99

$

In Stock, Qty 19

0

11

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$2.49

$

In Stock, only 2 left!

0

12

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$8.49

$

In Stock, Qty 8

0

13

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

14

Ariens 08325600

SG-TENS .095X.62X9.25 WLD ??

$

$

Not available

15

Ariens 01519300

SHOULDER STUD

$

$

Not available

16

Ariens 08312200

SG-TENS .090X.75X3.50 WLD 34

$35.99

$

Usually ships in 4-12 days

0

17

Ariens 03622900

SHOULDER STUD

$35.99

$

In Stock, only 2 left!

0

18

Ariens 07308800

IDLER-FLAT 3.25 X .38 NWHAMSHR

$40.99

$

In Stock, Qty 7

0

19

Ariens 03638400

TUBE .380 X .625 X 1.620

$26.99

$

Usually ships in 4-12 days

0

20

Ariens 03648300

FINGER - BELT

$22.99

$

In Stock, only 3 left!

0

21

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05955900

BLT-HEX .375-16X4.50 GR2 FLTHD

$

$

Not available
