915002 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000201 & Above) MOWER SPINDLE 48" Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

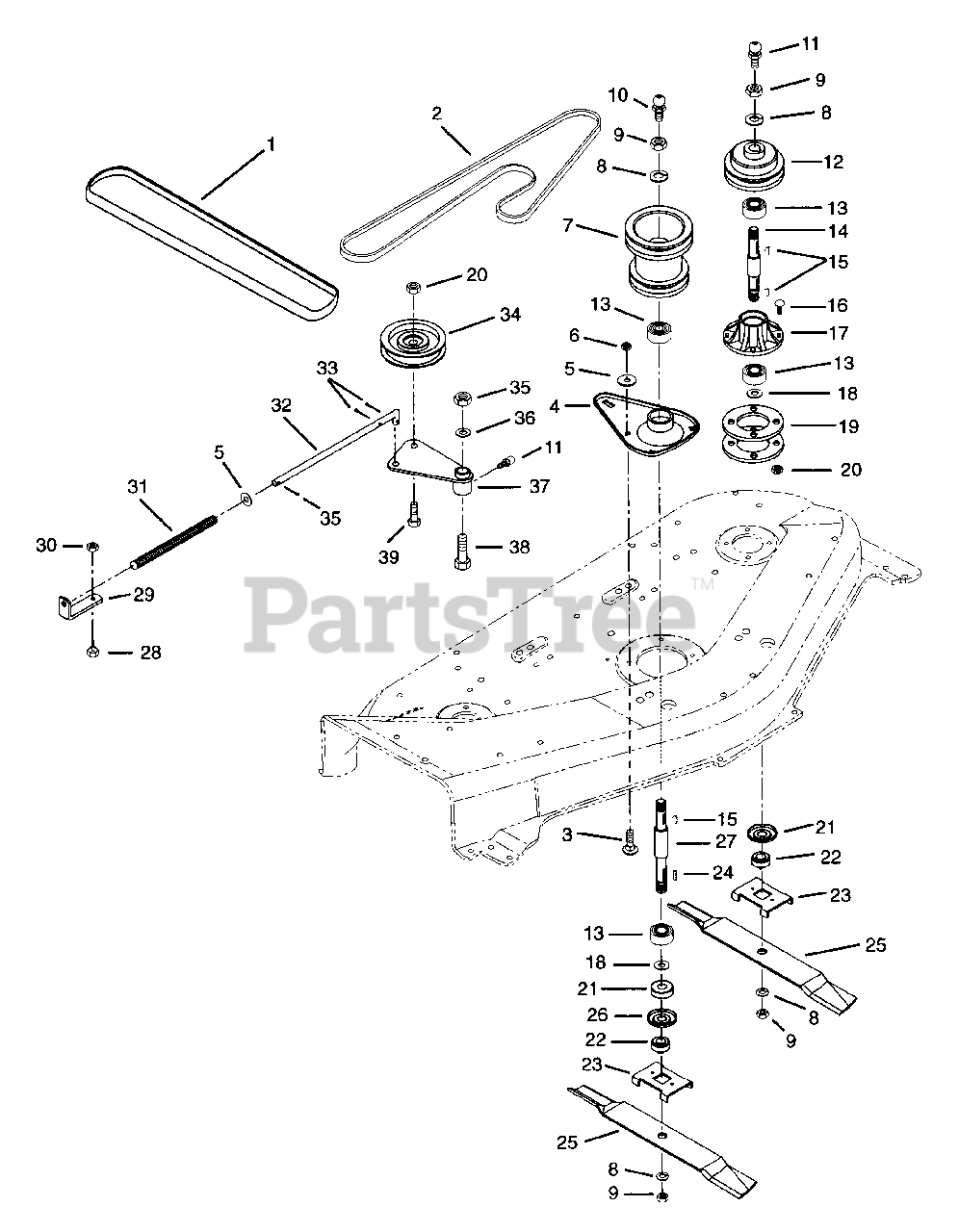

MOWER SPINDLE 48" Parts Diagram

  • Title

1

Ariens 07212300

V-BELT, 4L-RAW EDGE

$43.99

$

In Stock, only 3 left!

0

2

Ariens 07208100

V-BELT, HA-WRAPPED

$53.99

$

In Stock, only 1 left!

0

3

Ariens 06201900

BLT-RDHDSQNK .38-16X.62 GR5 PL
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

4

Ariens 03434900

HOUSING,SPINDLE

$

$

Not available

5

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03446800

SHEAVE

$512.99

$

Usually ships in 4-12 days

0

8

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 10

0

9

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 03404400

GREASE ZERK
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

11

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

12

Ariens 03401800

SHEAVE

$187.99

$

Usually ships in 4-12 days

0

13

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

14

Ariens 53115100

SPINDLE SHAFT W/ZERK

$74.99

$

In Stock, only 1 left!

0

15

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 10

0

16

Ariens 06203500

BLT-RDHDSQNK .375-16X.75 PL
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

17

Ariens 03433500

SPINDLE HOUSING

$

$

Not available

18

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

19

Ariens 03433600

SPACER, SPINDLE

$

$

Not available

20

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 00341900

BEARING SLINGER

$20.99

$

In Stock, only 4 left!

0

22

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

23

Ariens 03194500

BLADE TRAY
(Superseded to 03485500)

$20.99

$

In Stock, only 2 left!

0

24

Ariens 06601700

KEY-SQ .188X.625X.188 SAE 61

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 03123759

BLADE
(Superseded to 03123700)

$22.99

$

Usually ships in 4-12 days

0

26

Ariens 06408800

WSHR-FL-STL .755X1.250X.125
(Superseded to 06441500)

$3.99

$

In Stock, Qty 12

0

27

Ariens 53402400

SPINDLE SHAFT W/ZERK & KEY

$79.99

$

In Stock, only 2 left!

0

28

Ariens 05916800

BLT-HEX .31-18X.50 GR5

$1.99

$

Usually ships in 4-12 days

0

29

Ariens 03418800

BRACKET
(Superseded to 03418851)

$58.99

$

Usually ships in 4-12 days

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 08301800

SG-COMP .106X.63X 12.0 WLD 62

$14.99

$

Usually ships in 4-12 days

0

32

Ariens 03433900

ROD-IDLER SPRING

$96.99

$

Usually ships in 4-12 days

0

33

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

34

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 14

0

35

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

36

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, only 2 left!

0

37

Ariens 53401000

IDLER ARM W/ZERK

$102.99

$

In Stock, Qty 7

0

38

Ariens 05901000

BLT-HEX .50-13X1.50 PL GR2
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

39

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$2.99

$

Usually ships in 4-12 days

0
