915006 (EZR 1640) - Ariens 40" Zero-Turn Mower, 16hp Tecumseh (SN: 000101 & Above) Clutch Shaft Parts Diagram

40" Zero-Turn Mower, 16hp Tecumseh

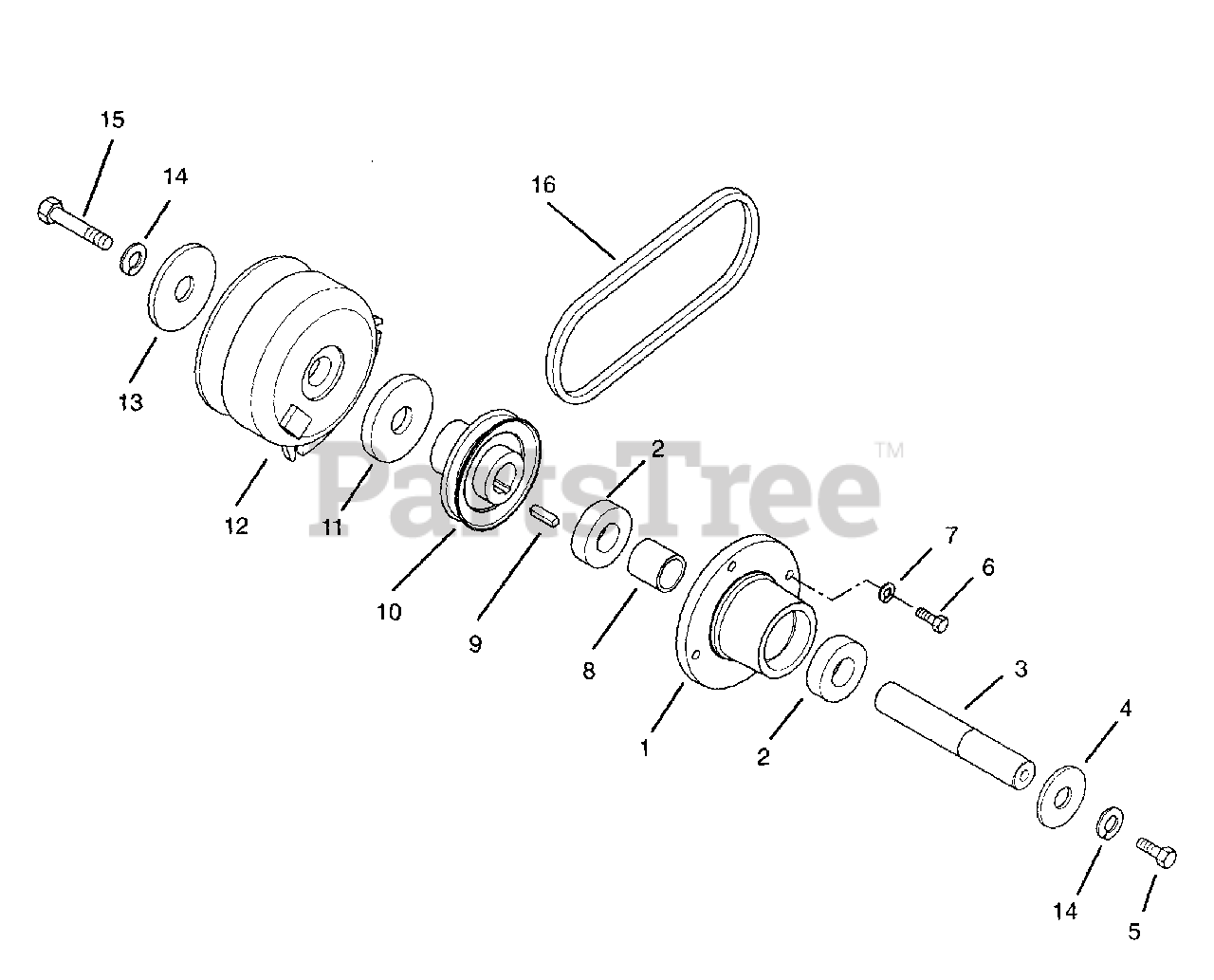

Clutch Shaft Parts Diagram

  • Title

1

Ariens 00506751

HOUSING, TRANS SPNDL, BLACK

$188.99

$

Usually ships in 4-12 days

0

2

Ariens 05421500

BRG-BALL .984X2.04X.59

$15.99

$

In Stock, only 2 left!

0

3

Ariens 01531300

SHAFT, JACK

Note: (004,303)

$120.99

$

Usually ships in 4-12 days

0

3

Ariens 01532100

SHAFT 1540/1648

Note: (005,006,007,302)

$168.99

$

Usually ships in 4-12 days

0

4

Ariens 06423200

WSHR-FL-STL .463X1.375X.250 PL
(Superseded to 06443500)

$7.49

$

Usually ships in 4-12 days

0

5

Ariens 05915300

BLT-HEX .44-20X1.00 GR5
(Superseded to 05964500)

$

$

Not available

6

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 00506800

SPACER 1.0X1.253X1.26

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 17

0

10

Ariens 07323600

SHEAVE, JACKSHAFT

$70.99

$

Usually ships in 4-12 days

0

11

Ariens 01531400

SPACER 1.004X1.500X.740

$31.99

$

In Stock, only 1 left!

0

12

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

Note: (004,303,)

$268.99

$

In Stock, only 1 left!

0

12

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

Note: (005,006,007,302)

$501.99

$

In Stock, only 1 left!

0

13

Ariens 06426400

WSHR-SPECIAL .469X2.000X.250
(Superseded to 06443600)

$7.99

$

In Stock, Qty 20+

0

14

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$3.49

$

Usually ships in 4-12 days

0

15

Ariens 05937500

BLT-HEX .44-20X2.50
(Superseded to 05964600)

Note: (004,303)

$2.99

$

In Stock, only 2 left!

0

15

Ariens 05920500

BLT-HEX .44-20X1.50 PL GR5
(Superseded to 05902004)

Note: (005,006,007,302)

$6.49

$

In Stock, only 2 left!

0

16

Ariens 07230800

BELT
(Superseded to 07235800)

$40.99

$

In Stock, Qty 6

0

16

Ariens 07233900

BELT, ENGINE TO JACKSHAFT
(Superseded to 07235800)

Note: (51501800,51501900)

$40.99

$

In Stock, Qty 6
